User Manual Roth EnergyLogic Touchline/Wireless
Installation
P100011294 E 31
5.2 Wireless room thermostat
5.2.1 Place of installation and general installation notes
Information on dimensions, see page 116, chapter 14.3.1.
Conditions for place of
installation
The place of installation for the wireless room thermostat must meet the
following conditions:
● Interior wall
● Not in direct sunlight
● Not directly beside the entrance door
● Away from sources of moisture
● Away from splashing water
● Away from heat sources such as fireplaces, heaters, televisions or other
electronic devices.

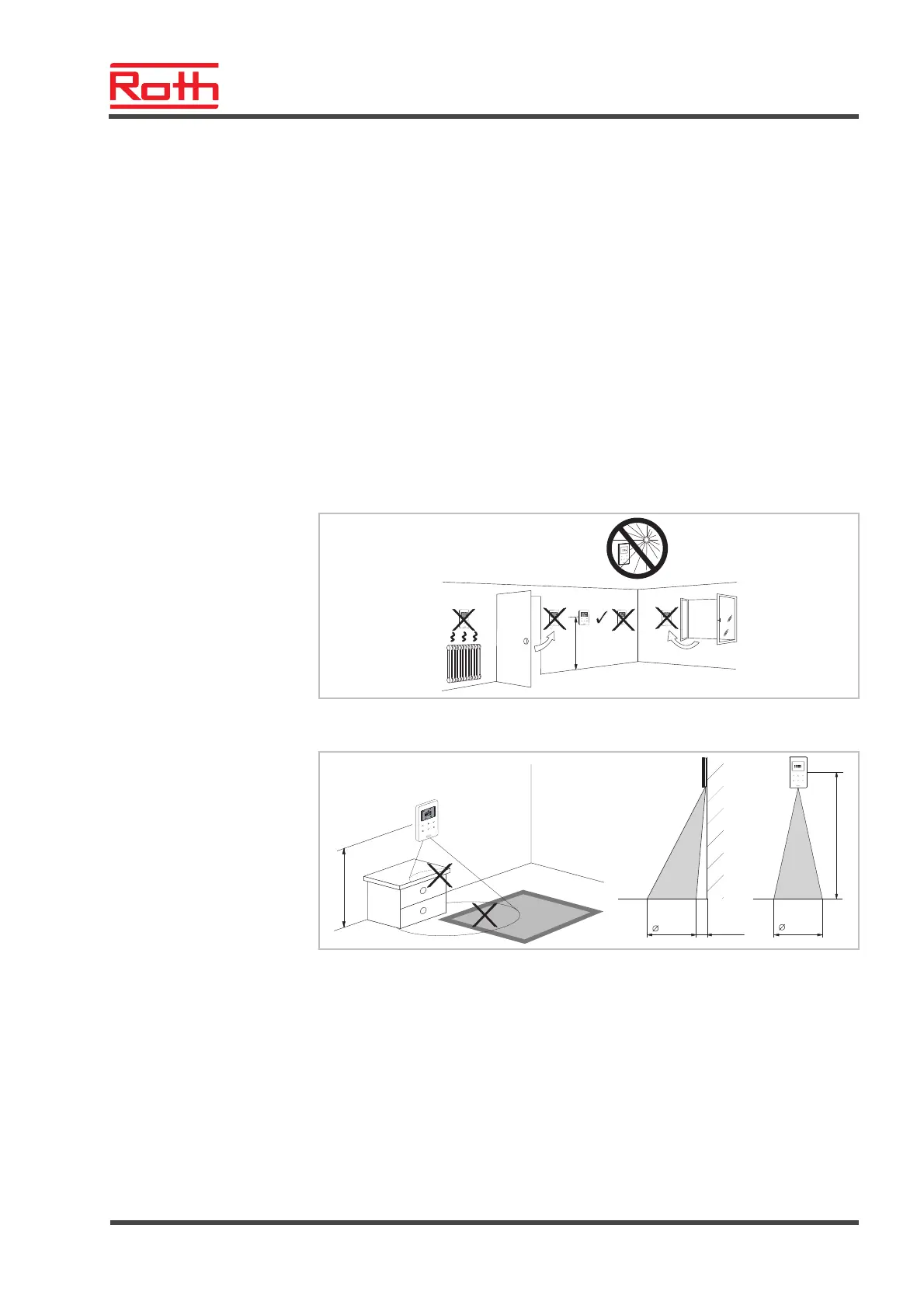

Installation instruction
~1.5 m
Fig. 12: Installation instruction
Wireless room thermostat
with IR sensor
~1.5
m
~1.5 m
0.12 m
B12168b
0.555 m 0.555 m
Fig. 13: Area of influence of IR sensor
