7.6.4 Change time program
NOTE
The sequence of the switching points has to be fix and ascending:
Switching point
Switched-on period 1 reduced  normal
normal  reduced
Switched-on period 2
reduced  normal
normal  reduced
Switched-on period 3
reduced  normal
normal  reduced
The switching points can be shifted in any direction. However, they should
not overlap each other. For example the second switching point reduced

normal should not lie before the first switching point reduced
 normal.
The switching points of a switched-on period may not lie between the
switching points of another switched-on period.
At midnight "00:00" means begin of day and "24:00" end of day.
02:00 04:00 06:00 08:00 12:0010:00 14:00 16:00 18:00 20:00 22:00
1
1
2
00:00 24:00
b
B12258a
2
02:00 04:00 06:00 08:00 12:0010:00 14:00 16:00 18:00 20:00 22:00
1 2
21
00:00 24:00
a

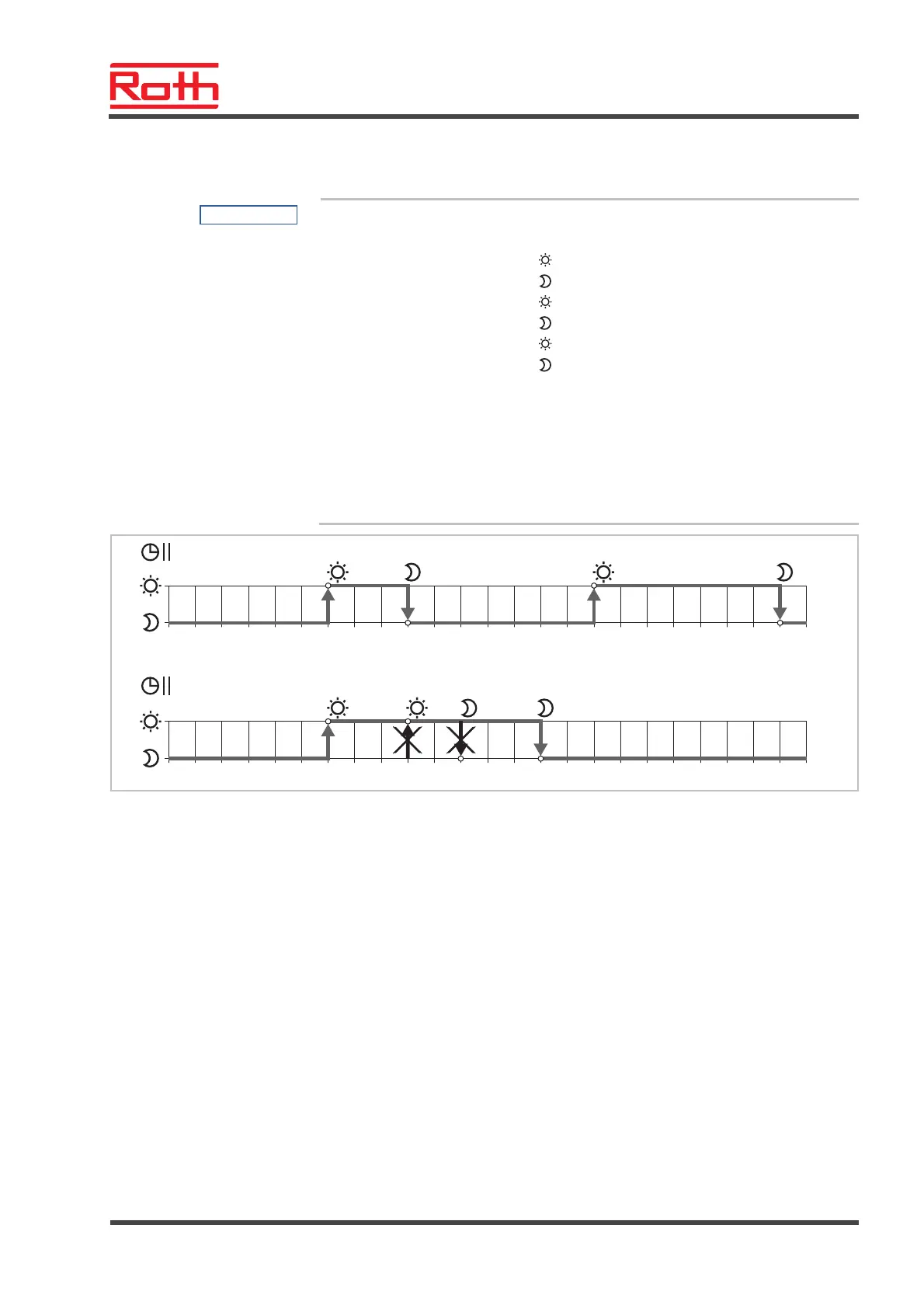

Fig. 43: Right and wrong settings of the time program
a Right setting: The switching points are configured in ascending order.
b Wrong setting: The switching points of the second switched-on period lie between the switching points of the first
switched-on period.
