User Manual Roth EnergyLogic Touchline/Wireless
Installation
36 P100011294 E
5.2.4 Wireless room thermostat with 230 V connection
DANGER
Danger to life from electrical voltage!
Contact with live parts is an immediate danger to life.
Damage to the insulation or individual components can be life threatening.
– When insulation is damaged turn off power immediately and arrange for
repair.
– Only a qualified electrician should perform work on the electrical system.
– Prior to any work on the system, shut off the power supply and secure
against restart. Check for the absence of power!
– Moisture and dust should be kept away from energized parts. Moisture
or dust can cause a short circuit.
► Open the cover of the wireless room thermostat. See page 32.
► Install the bottom part of the wireless room thermostat with the 2 included
screws and plugs.
B112246a
3
1
4
2
2
5
4 mm
60
42
4
32

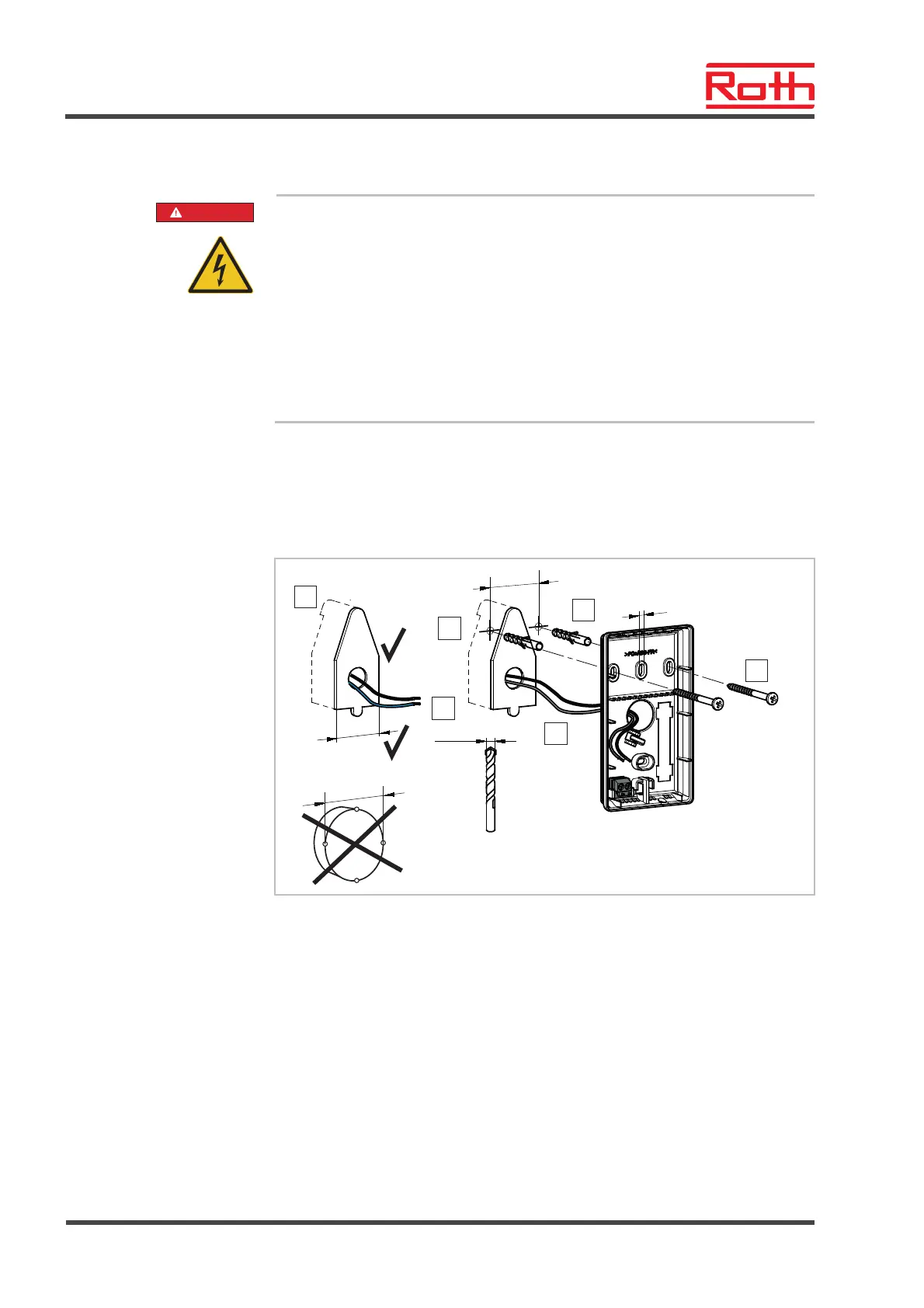

Fig. 22: Installation bottom part of wireless room thermostat
