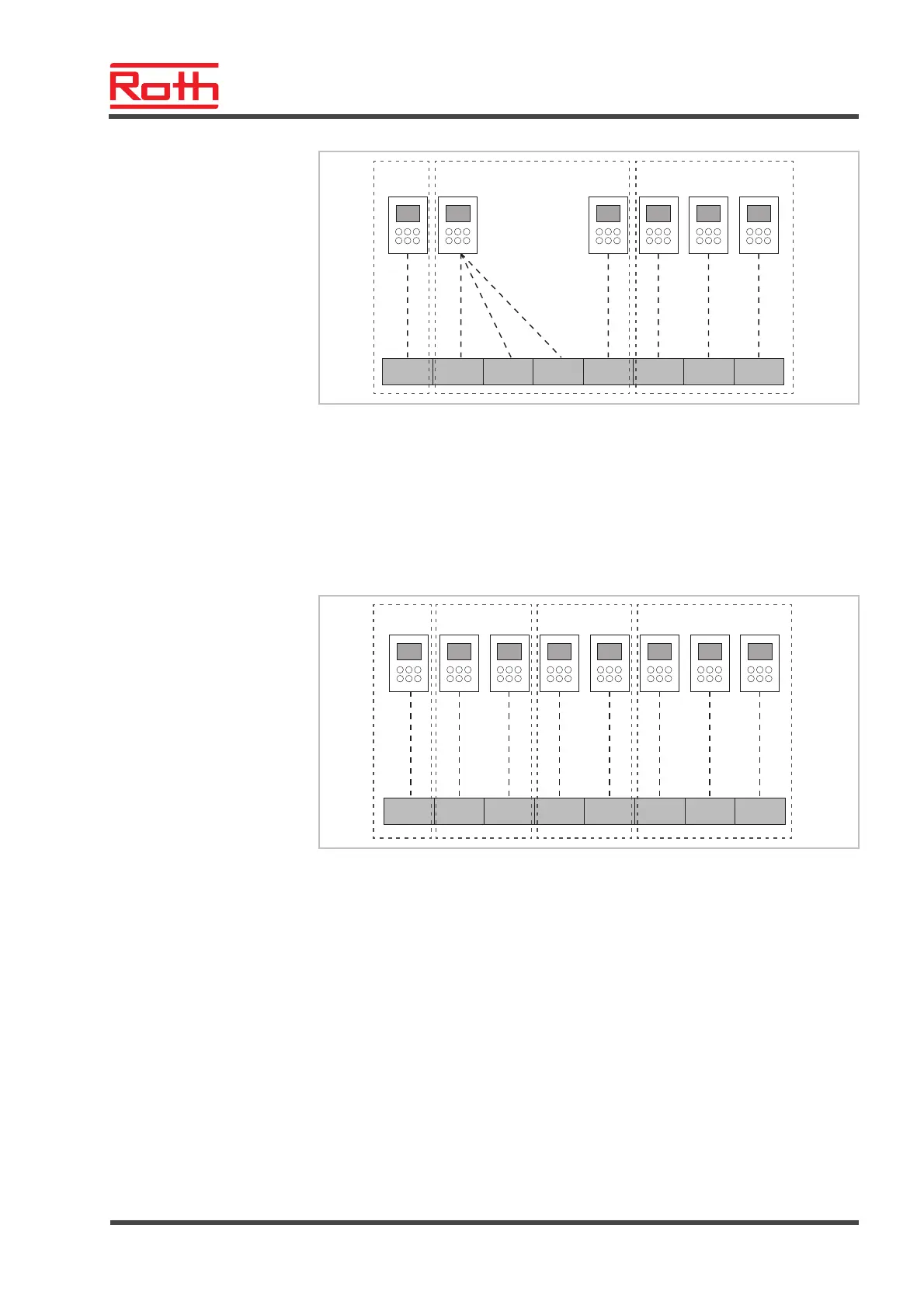

Fig. 62: Wireless room thermostat as "Master" for changing mode of operation
– Wireless room thermostat as "Master" with own zone.
1 Zone 1 Wireless room thermostat as "Master"
2 Zone 2
3 Zone 3
CH 1…CH 8: radio-channels
Master function
 see page 91, parameter P-48.
B12298a
4
3
CH 1
CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8
2
1
Fig. 63: Wireless room thermostat as "Master" for mode of operation
– wireless room thermostat outside the zones
1 Wireless room thermostat as "Master", outside the zones
2 Zone 1
3 Zone 2
4 Zone 3
CH 1…CH 8: radio-channels
Master function
 see page 91, parameter P-48.
