User Manual Roth EnergyLogic Touchline/Wireless
Plant examples and communication
122 P100011294 E
B12265a
P-46 P-46 P-46 P-46
3
CH 1
CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8
2
1
SENS
SENS

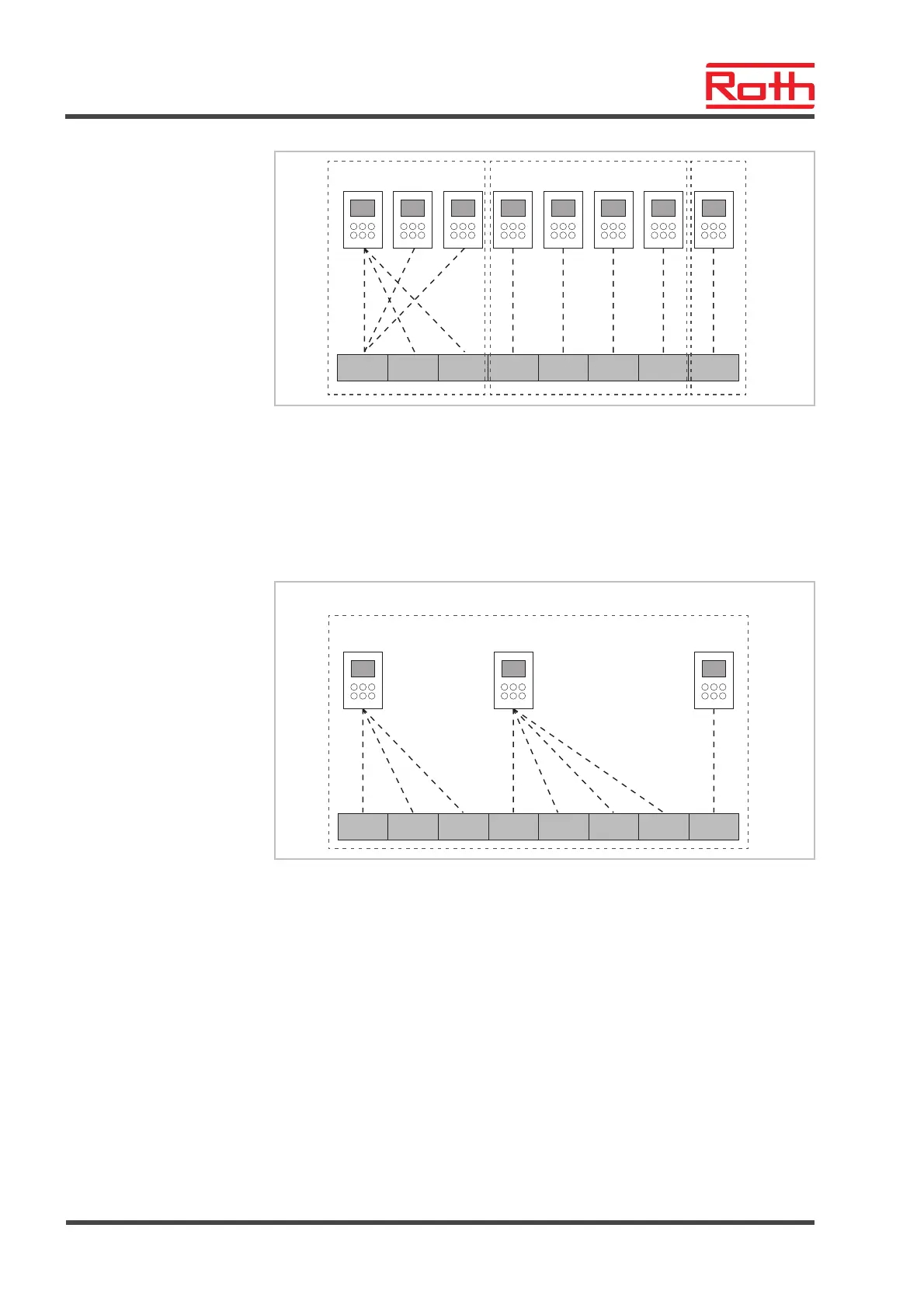

Fig. 60: Radio channel groups with zone building
1 Zone 1 with average temperature building
2 Zone 2 with setpoint sharing
3 Zone 3
CH 1…CH 8: radio-channels
Setpoint sharing
 see page 90, parameter P-46.
B12266a
1
P-46 P-46P-46
CH 1
CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8
3 42
Fig. 61: Setpoint sharing for all wireless room thermostat within one zone
1 Zone 1 with setpoint sharing
2 Radio channel group 1
3 Radio channel group 2
4 Single addressing
CH 1…CH 8: radio-channels
Setpoint sharing,
 see page 90, parameter P-46.
