Electrical connections
P100011294 E 39
Fine-wire conductor
Fine-wire conductors must only be used with wire-end ferrules.
L
L1
L

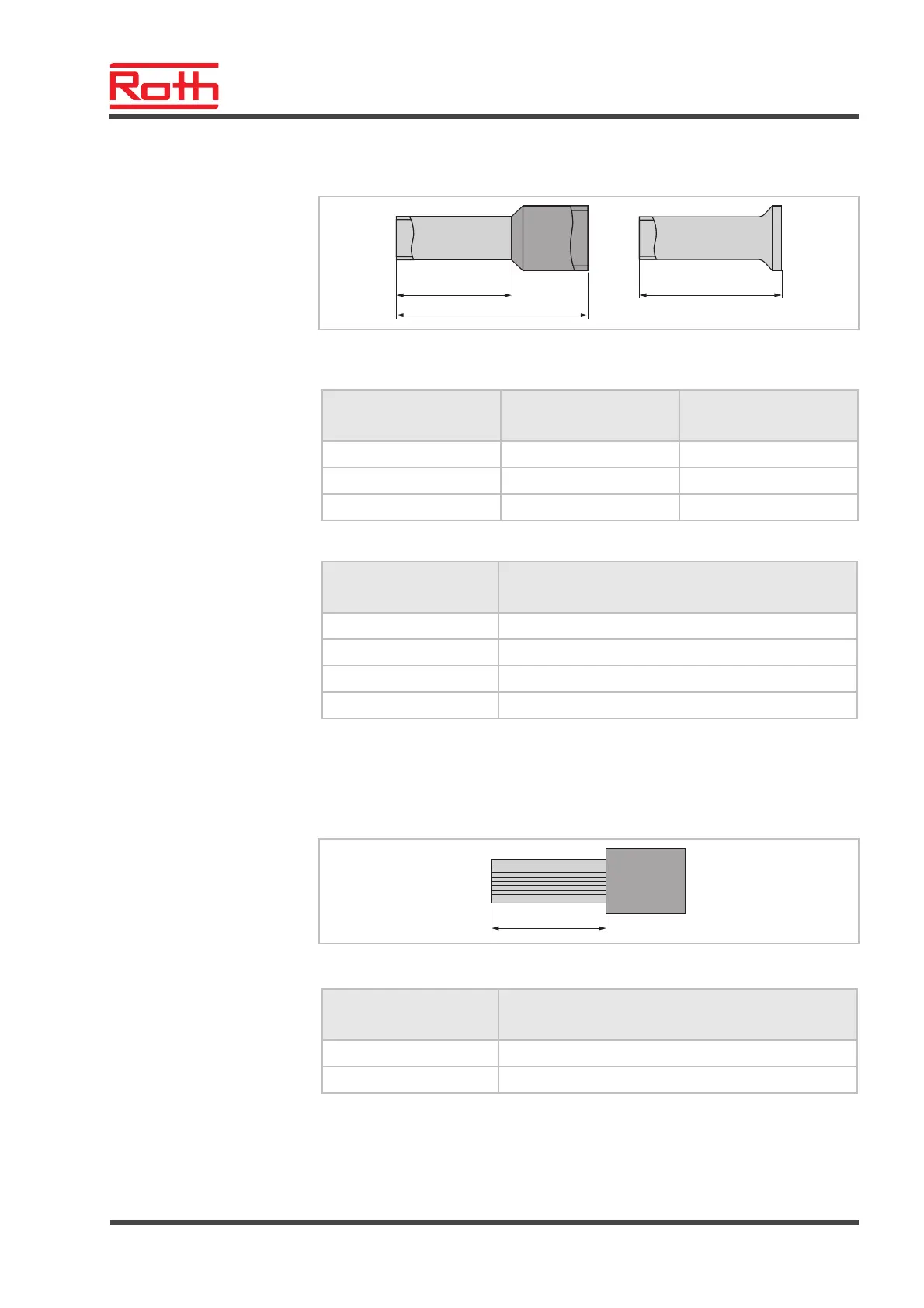

Fig. 24: Left: Wire-end ferrules with plastic collar
right: Wire-end ferrules without plastic collar
Strand cross-section
[mm²]
L [mm] L1 [mm]
0.25 to 0.34 8 10 to 14
0.5 8 12 to 14
0.75 8 12 to 14
Table 9: Dimensions for fine-wire conductors, wire-end ferrules with plastic collar
Strand cross-section
[mm²]
L [mm]
0.5 8
0.75 8
1 8
1.5 8
Table 10: Dimensions for fine-wire conductors, wire-end ferrules without plastic collar
Single-wire or multi-wire
conductors
Single-wire or multi-wire conductors must not be used without wire-end fer-
rules.
L
Fig. 25: Single-wire or multi-wire conductors
Strand cross-section
[mm²]
L [mm]
0.2 to 0.75 8
0.75 to 1.5 8
Table 11: Dimensions for single-wire or multi-wire conductors
