User Manual Roth EnergyLogic Touchline/Wireless
Electrical connections
46 P100011294 E
TB-input for temperature
monitoring (LAN versions
only)
The TB-input can be used for temperature monitoring by an external maxi-
mum temperature limiter.
► Connect the signal of the external temperature limiter to terminals 09 and
10.
B12251a
06
L
N
10
09
TB
c/o in
230 V
/TB
N L
09 10
05

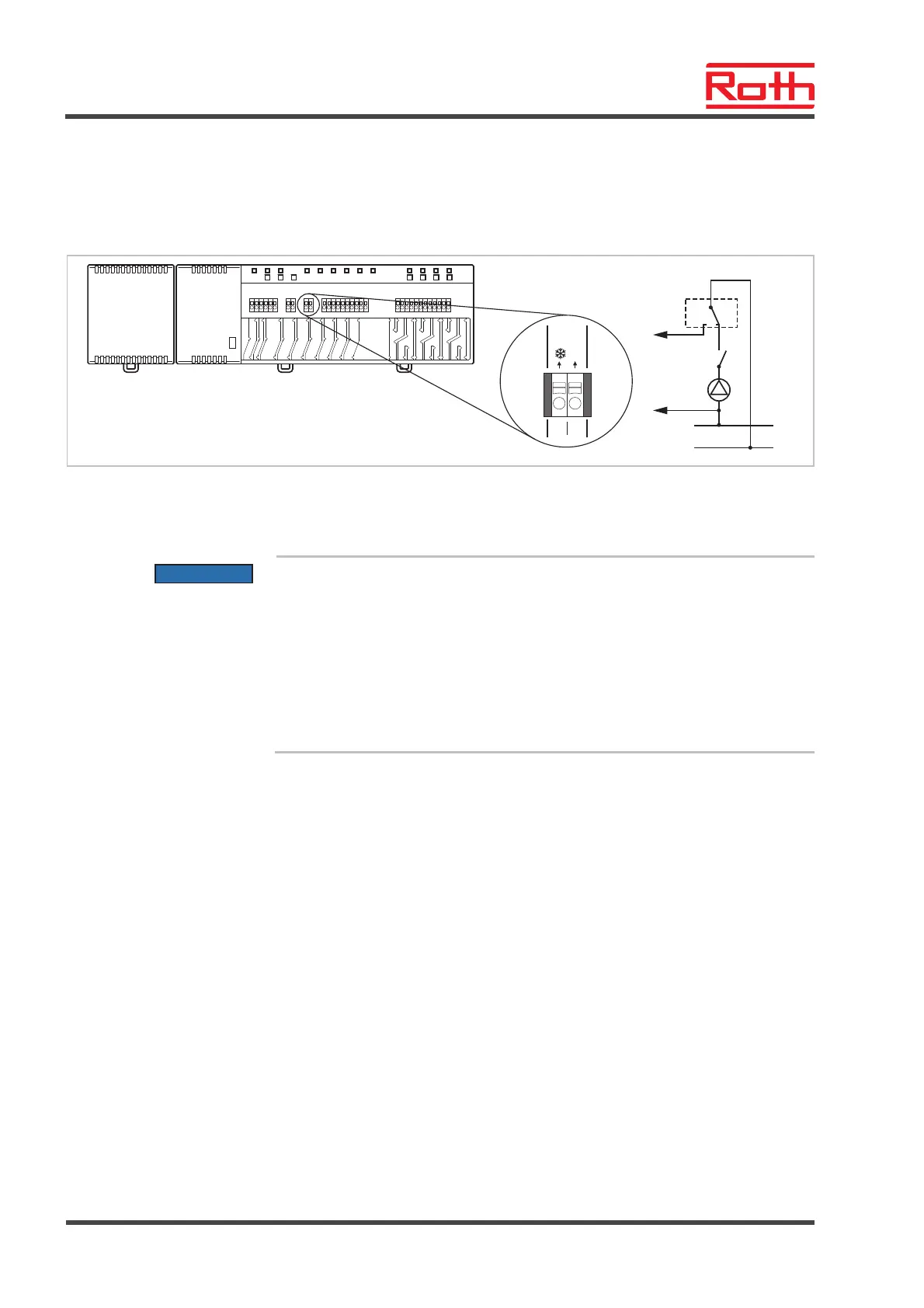

Fig. 35: TB-input for temperature monitoring
Voltage on terminal 10 ON: all valves closed
OFF: all valves are controlled by demand.
ATTENTION
Limitation of liability for safety function!
The safety function of the maximum floor temperature is provided by the
separate, external temperature limiter by switching the pump off. The sig-
nal on terminal 10 triggers the additional closure of all valves; however,
this does NOT replace the security function.
– Use only an approved temperature limiter
– Use the information regarding the maximum allowed water supply tem-
perature provided by the manufacturers of the floor respectively the floor
covering.
