ER-5200M/5240M Electronic Cash Register S-Mode Programming • 89
Updating Firmware Program
The ER-5200M/5240M firmware program is loaded in flash EPROM. Occasionally, CRS/SAM4s may
provide updates to the firmware in order to fix bugs and/or update the register feature set. The
firmware program can be transferred from a PC to an ER-5200M/5240M through the register’s RS-
232C ports.
Note: There are two parts to the firmware program: Boot area and Program area. In most
cases, you will only need to update the program area. You will be notified where updates are
required.
Update Files
To complete the firmware update, you will be supplied with the following files:
• Download.exe (The update utility program)
• ER5200M.bin and/or ER5240M.bin

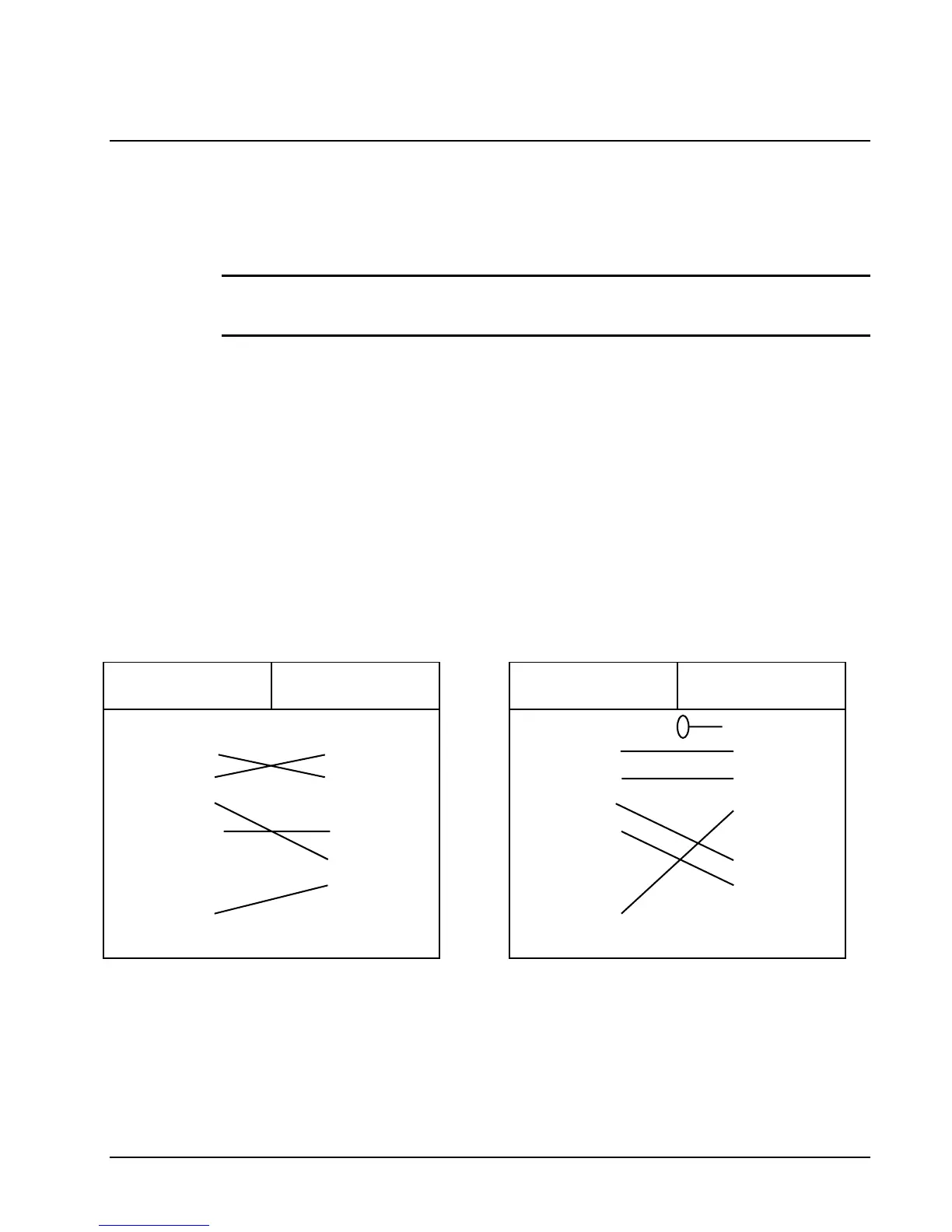

PC Connection Cable
Use one of the following cables:
• CRS Part # 522035 (Register DB-9M to PC DB-9F)
• CRS Part # 522038 (Register DB-9M to PC DB-25F)
Part # 522035
SAM4s
DB-9M
PC
DB-9F
DCD1
RXD2
TXD3
DTR4
GND5
DSR6
RTS7
CTS8
VCC9
1DCD
2RXD
3TXD
4DTR
5GND
6DSR
7RTS
8CTS
9RI
Part # 522038
SAM4s
DB-9M
PC
DB-25F
DCD1
RXD2
TXD3
DTR4
GND5
DSR6
RTS7
CTS8
VCC9
1ChGND
2TXD
3RXD
4RTS
5CTS
6DSR
7GND
8DCD
20DTR
To Next Page
