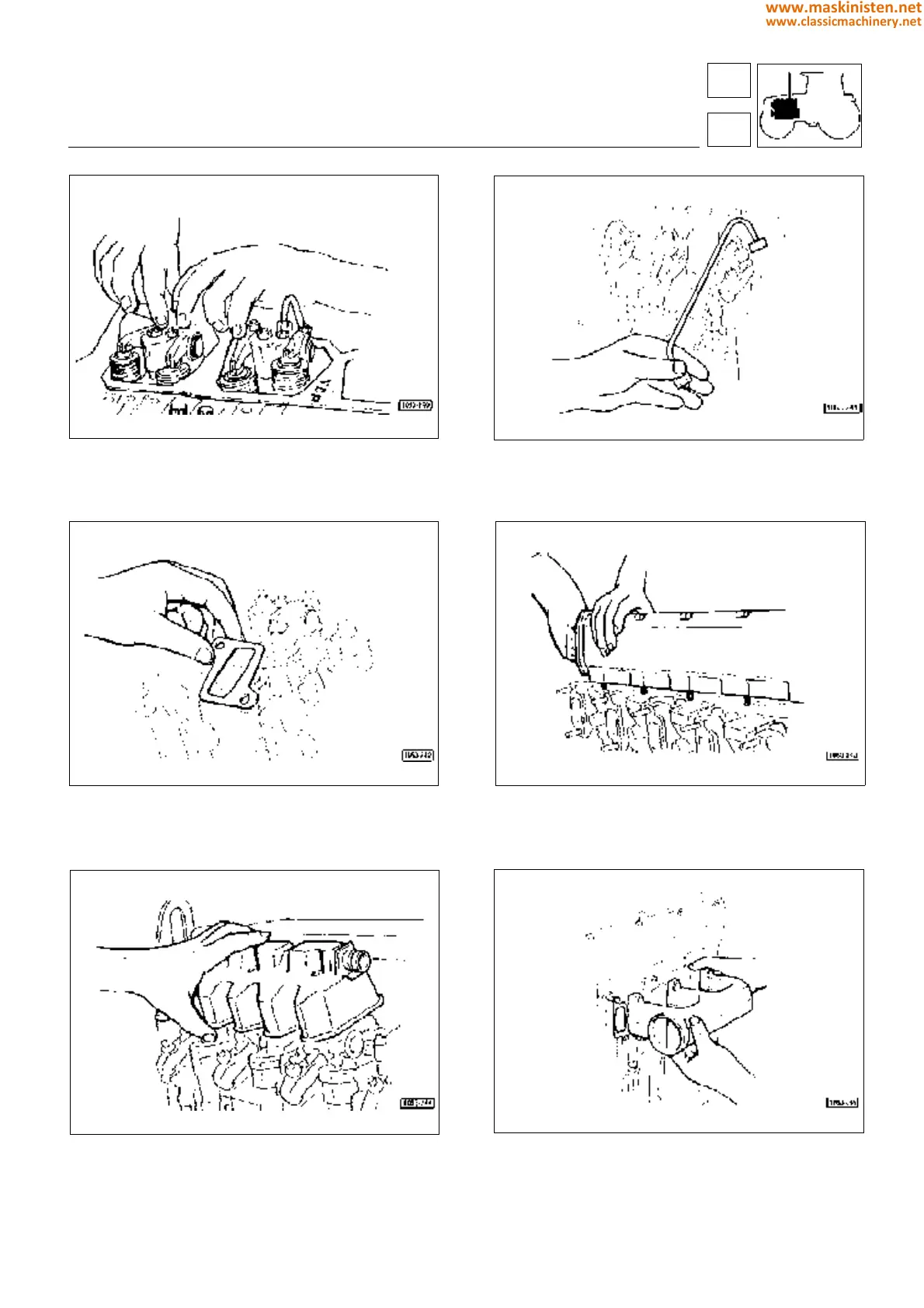

Fig. 65 - Fit gaskets between heads and caps. Orientation
shall be provided according to "TOP" indication on them;
Fig. 67 - Install gaskets between heads and intake manifold;
Fig. 69 - Install the head caps;
Fig. 66 - Install pump-to-injector pipes as well as the fuel
recovery pipes from injection pumps and injectors;
Fig. 68 - Install the intake manifold;
Fig. 70 - Fit the exhaust manifold gaskets. Install the exhaust
manifold;
engine
assembly
1
103
