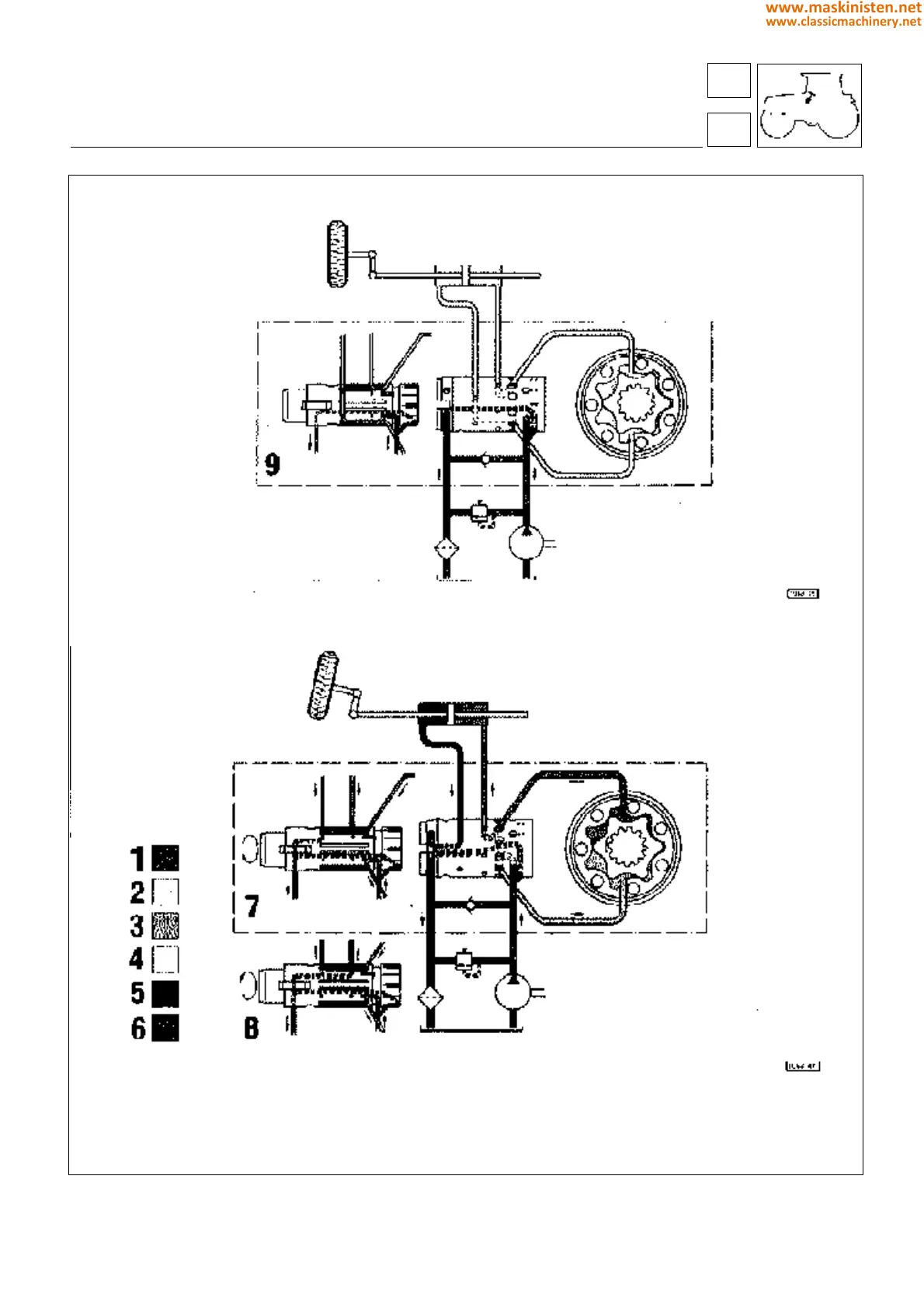

Fig. 11 - Reactive-type, open-centre hydraulic distributor schematic diagram.
controls
hydrostatic steering
1 - oil to the main pump
2 - oil to the flow control shutter
3 - oil to the steering cylinder
4 - oil trapped in closed circuit
5 - oil in the discharging line
6 - oil in the aspirating line
7 - right-hand rotation
8 - left-hand rotation
9 - neutral position
63
6
301
