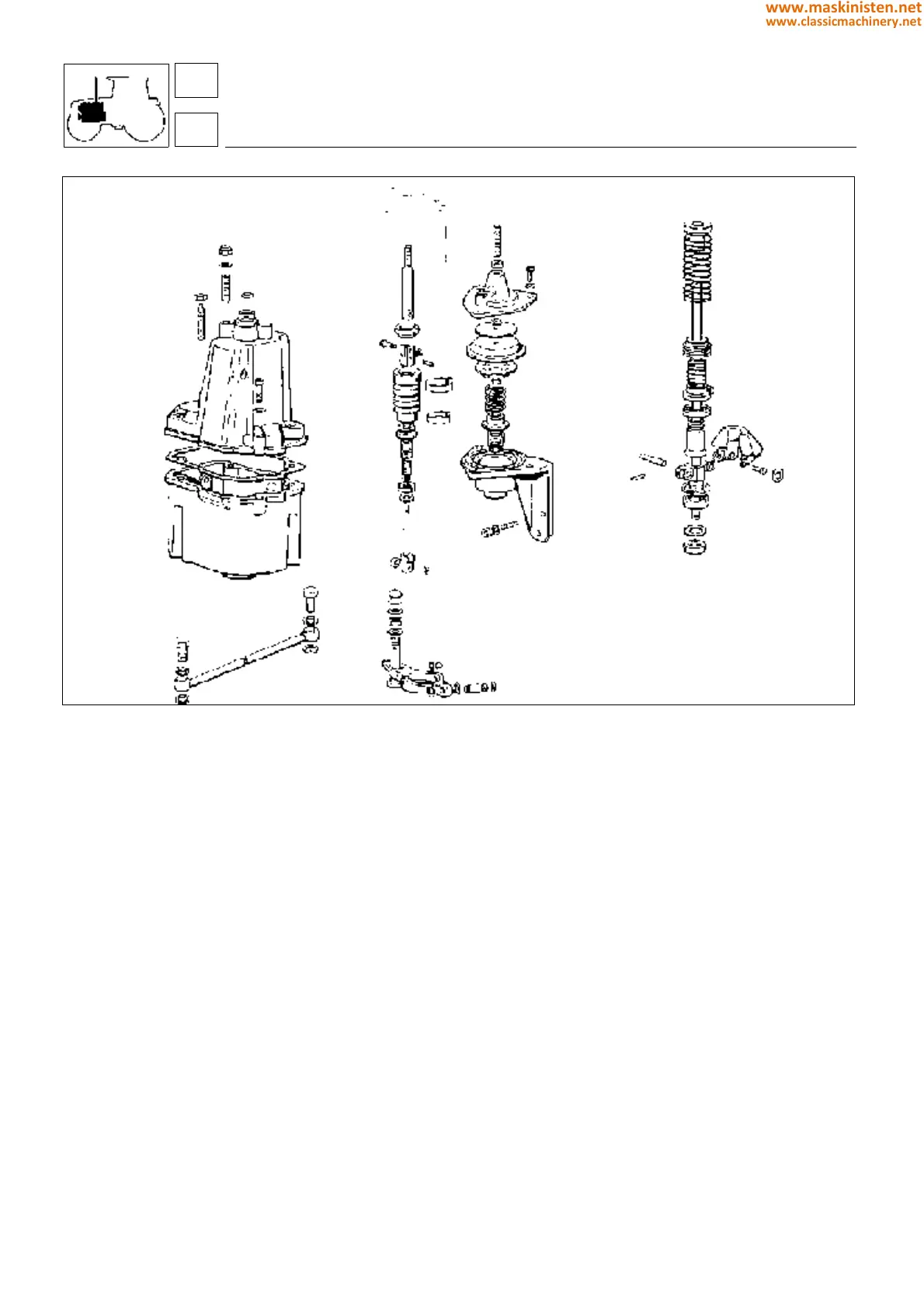

Fig. 18 - Engine governor assembly with L.D.A. valvel
SILVER 100.4.
Accelerator pedal (fig. 19).
Attach the control cable A to bracket C and then to lever D; fit spring P.
Adjust the position of the rubber G to obtain a distance of 100 mm as shown in figure 19; tighten locknut Q.
Hand throttle control
Attach cable B to bracket E and then to lever F; apply a force f = 5
±0.5
to lever F and screw in the self-locking nut R
until the force applied no longer moves the lever.
Connecting the pedal and hand throttle cables to the governor.
Attach the two cables to bracket H using the two snap rings I;
To adjust the accelerator pedal cable, screw in nut L until the cable is fully tensioned, then tighten locknut M.
Bring the hand throttle lever to the "MAX" position and push lever F to its travel limit; screw in nut N until the cable is
fully tensioned and then tighten locknut O.
Lubricate the surfaces of the governor lever in contact with nuts L and N using "Molikote Gn" grease.
FITTING AND ADJUSTING THE EXTERNAL CONTROLS OF THE MECHANICAL GOVERNOR
engine
fuel system
16
1
60
