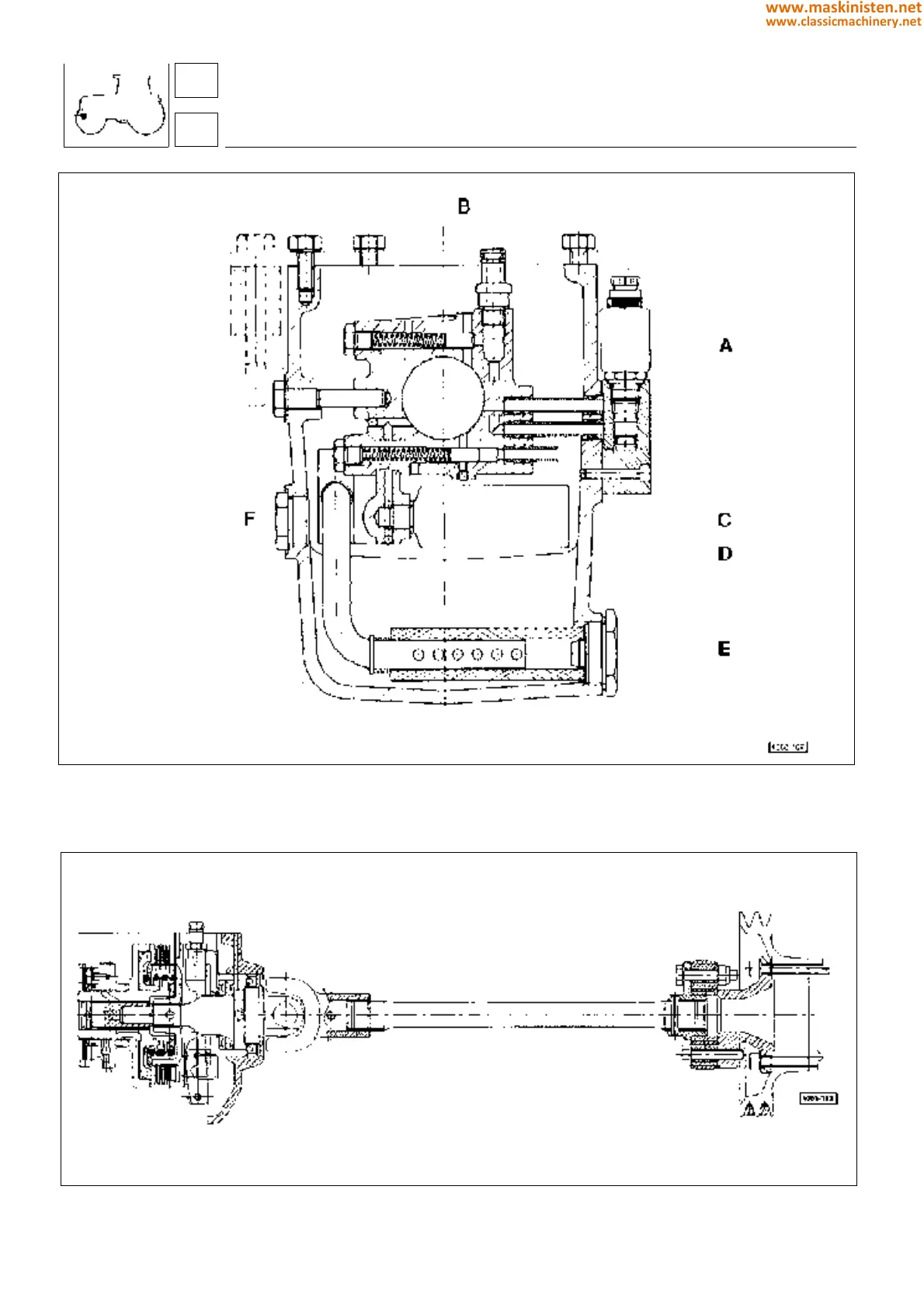

Fig. 5 - Longitudinal section of the front P.T.O. assembly.
Fig. 6 - Front P.T.O. shaft flexing coupling.
Apply some LOCTITE 510 (red) on the screw threads.
A - Solenoid valve
B - Clutch pressure control valve
C - Solenoid operated brake apply pressure control valve
D - Clutch engagement pressure accumulator
E - Strainer
F - Oil level indicator plug
59
5
vehicle
front power take-off
288
