drive axles - axles

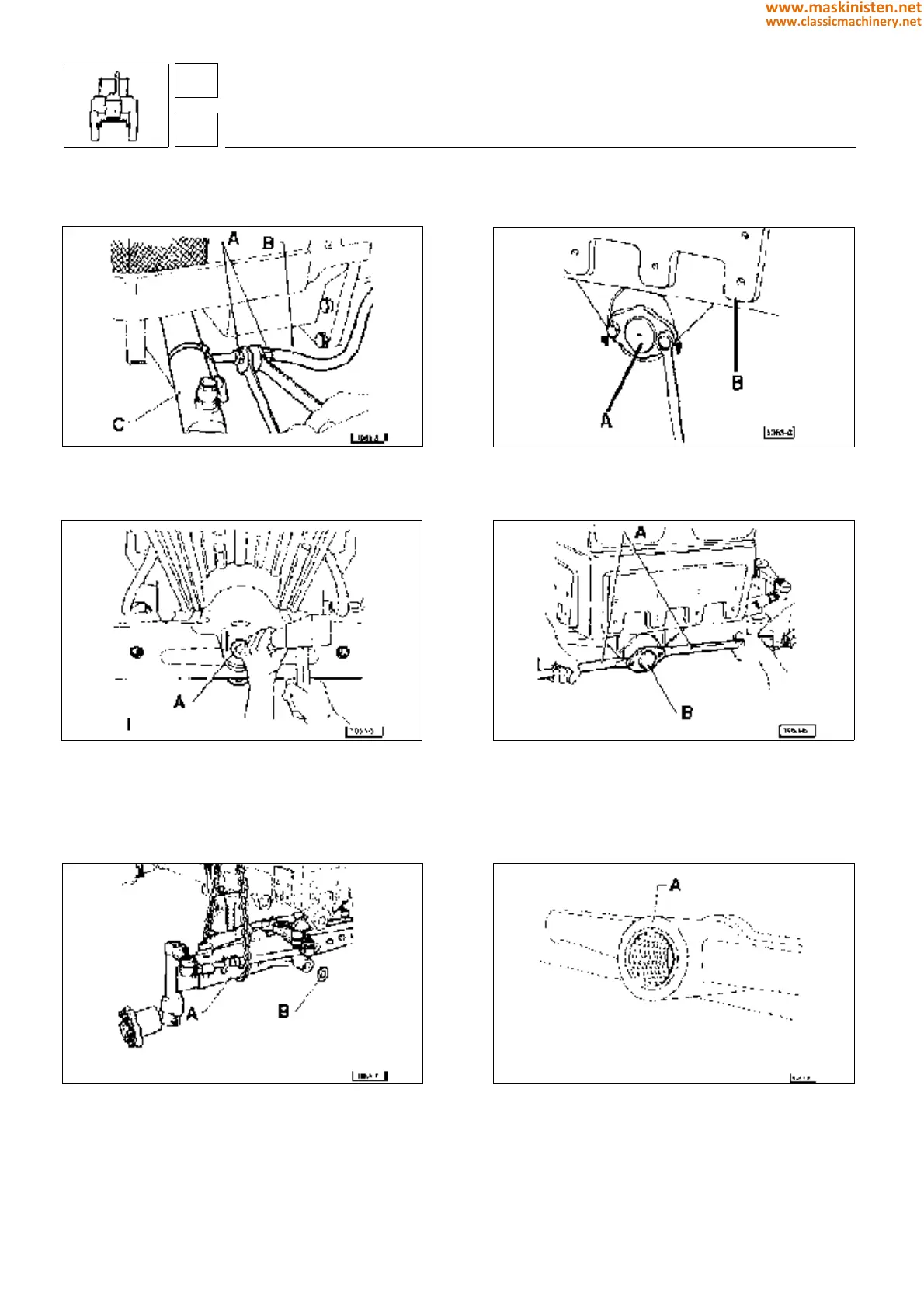

2-W.D. extendible axle
Fig. 5 - Using a light-alloy hammer and punch to tap on rear
pin end A.
WARNING: Keep the shim packs separated so that the
correct position can be restored on reassembly.
Fig. 7 - Remove the axle from the front support by tapping a
few times the axle centre portion with the hammer.
Lower axle A very slowly and make sure that no hindrance
is produced during lowering, then remove shoulder rings B.
Fig. 3 - Place some suitable vessels beneath the steering
control cylinders, then loosen control cylinders A unions C
from hoses B side.
Fig. 6 - By way of both levers A withdraw pin B forward and
recover the shims interposed between flange and front
support. Ensure the securing pin surface shows no flatten-
ing, craking or chipping, replace the pin if necessary.
Fig. 8 - Ensure that bushes A of the centre axle are not worn,
checking for well-evident indentations, remove the bushes
by hammer and punch if necessary.
Fig. 4 - Loosen both securing screws of pin A to axle support
B.
Removing the axle from the front support
