Side hubs
Disassemble the twin universal joints if required, keeping to the following procedure:
— Remove both snap rings A from one cross journal B. A non-ferrous metal hammer and punch may help in carrying
out this operation, (see Fig. 14).
— Fix the joint fork in a vice provided with protective jaws.
— Tap with a hammer on wheel shaft fork A (see Fig. 16), so that the bearing may be removed from its seat in fork A
and taken from the top. Separate cross joint D from the fork.
— Following the same procedure separate the cross joint from the universal joint fork as well as from the axle shaft
fork.
— Recover bearing rollers A along with dust rings B.

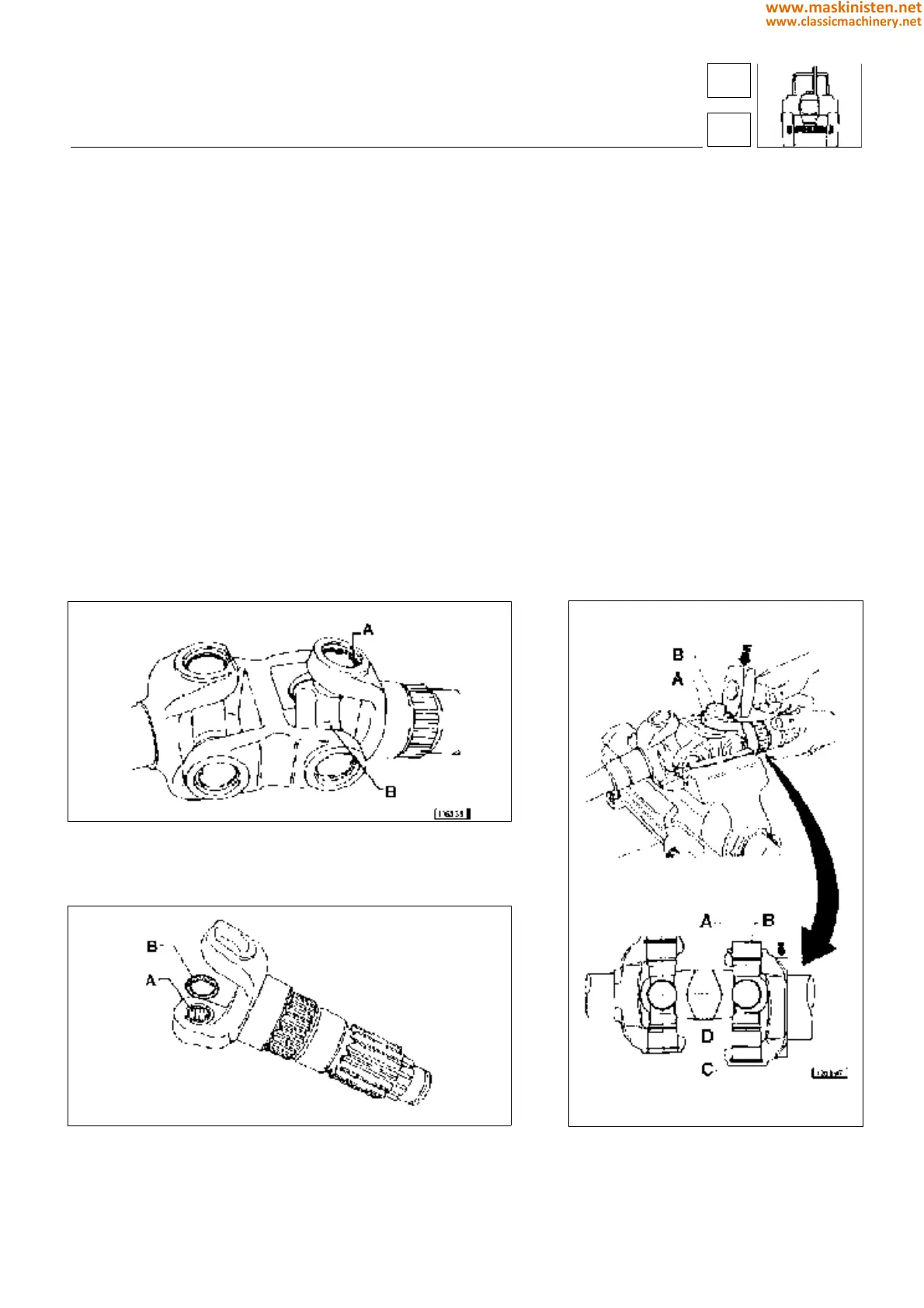

Fig. 14 - Twin universal joint.
A - Snap ring
B - Twin universal joint cross journal
Fig. 15 - Axle shaft twin-type universal joint bearing.
A - Rollers
B - Dust rings
Fig. 16 - Disassembling the twin-type universal
joint from the axle shaft.
A - Wheel shaft forks
B - Roller bearing
C - Roller bearing
D - Cross joint
drive axles - axles
4-W.D. front axle
43
4
201
