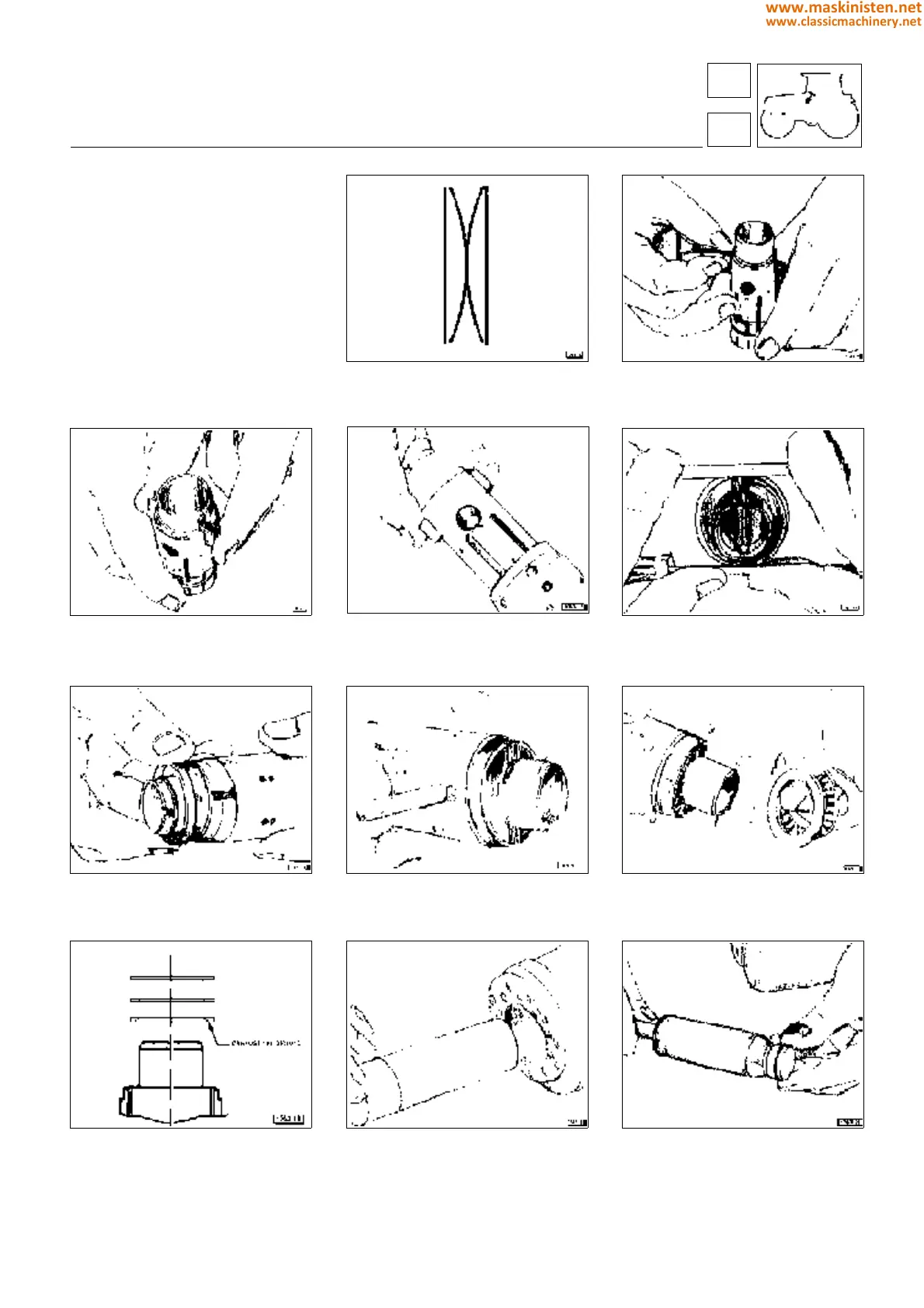

Instructions for the
hydrostatic steering
distributor assembly
controls
hydrostatic steering
3 - Press the spring blades to align in
centre position.
4 - Reassemble the rotary distributor. 5 - Act on springs in such a way they are
prevented from projecting outwards with
respect to the rotary distributor outside
surface.
6 - Fit the spacer onte the distributor. 7 - Insert the drive pin into the cylinder. 8 - Install the axial bearing following the
assembly order shown in next figure.
9 - Axial bearing installation. 10 - Use no. 5.9030.480.0 tool to fit the
seal ring.
11 - Insert the O-ring after fitting the tool
sleeve into the distributor case.
1 - Insert the spring set (blue) as shown
in figure.
2 - Insert first the two external spring
blades into the rotary distributor and
subsequently the two internal ones.
