Front and rear differential lock clutches for machines with SBA system
Technical specifications
front differential rear differential
clutch oil-immersed multiple disc with axial piston
number of friction discs 4 6
disc diameter (mm) 110 148,8
thickness of assembled friction discs
minimum (mm) 13 23.7
maximum (mm) 13.6 24.78
number of intermediate discs 3 6
maximum pressure setting (bar) 18
piston return spring
number of springs 4 1
wire diameter (mm) 1.6 5
external diameter (mm) 13 90
length relaxed (mm) 24.1 58
length compressed
under 68.6 N (7 kg) load (mm) 15,7 -
under 97.3 N (10 kg) load (mm) 12.2 -
under 255 N (25 kg) load (mm) - 21
under 283 N (27.8 kg) load (mm) - 17

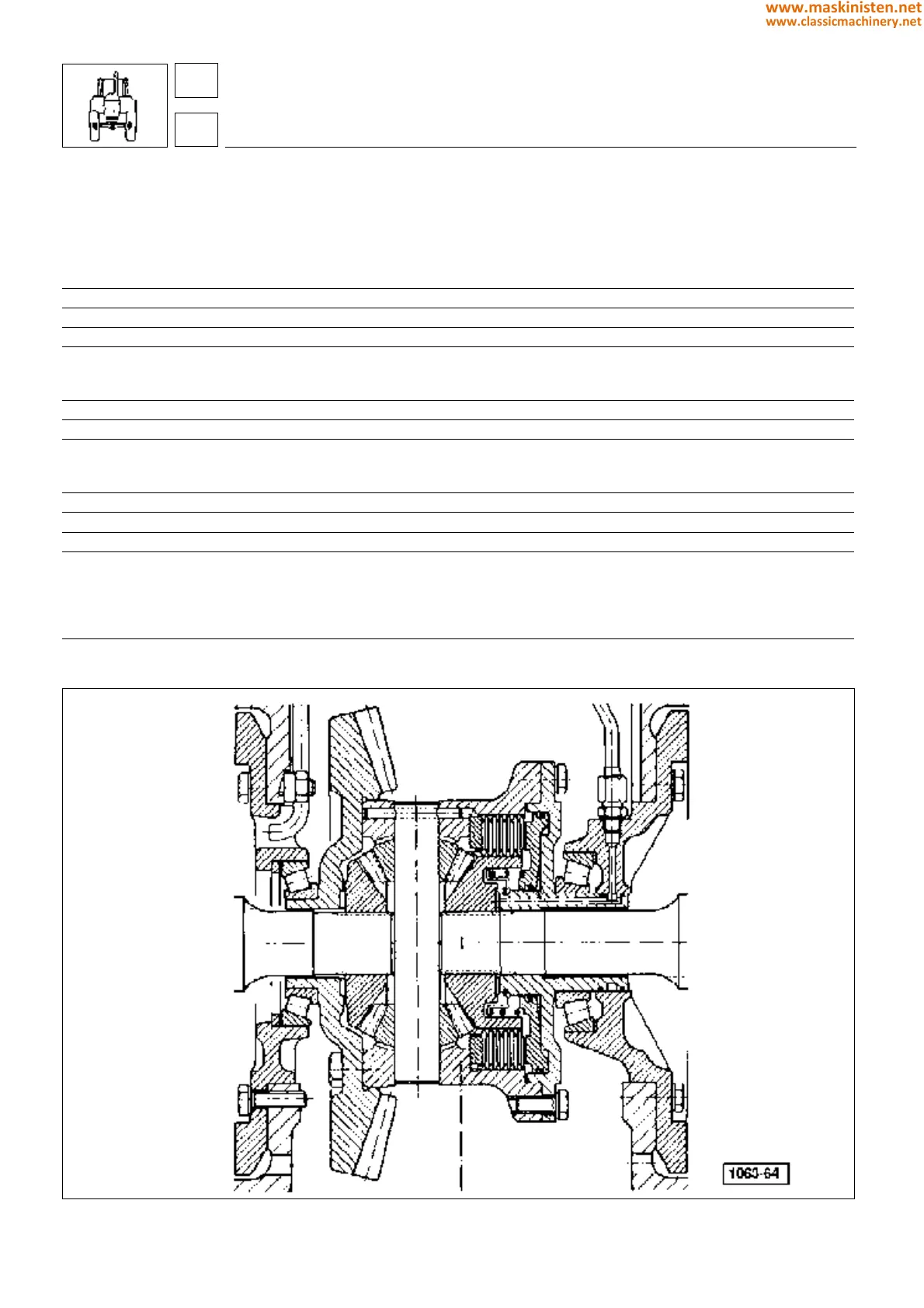

Fig. 10 - Rear differential lock on machine with SBA system.
