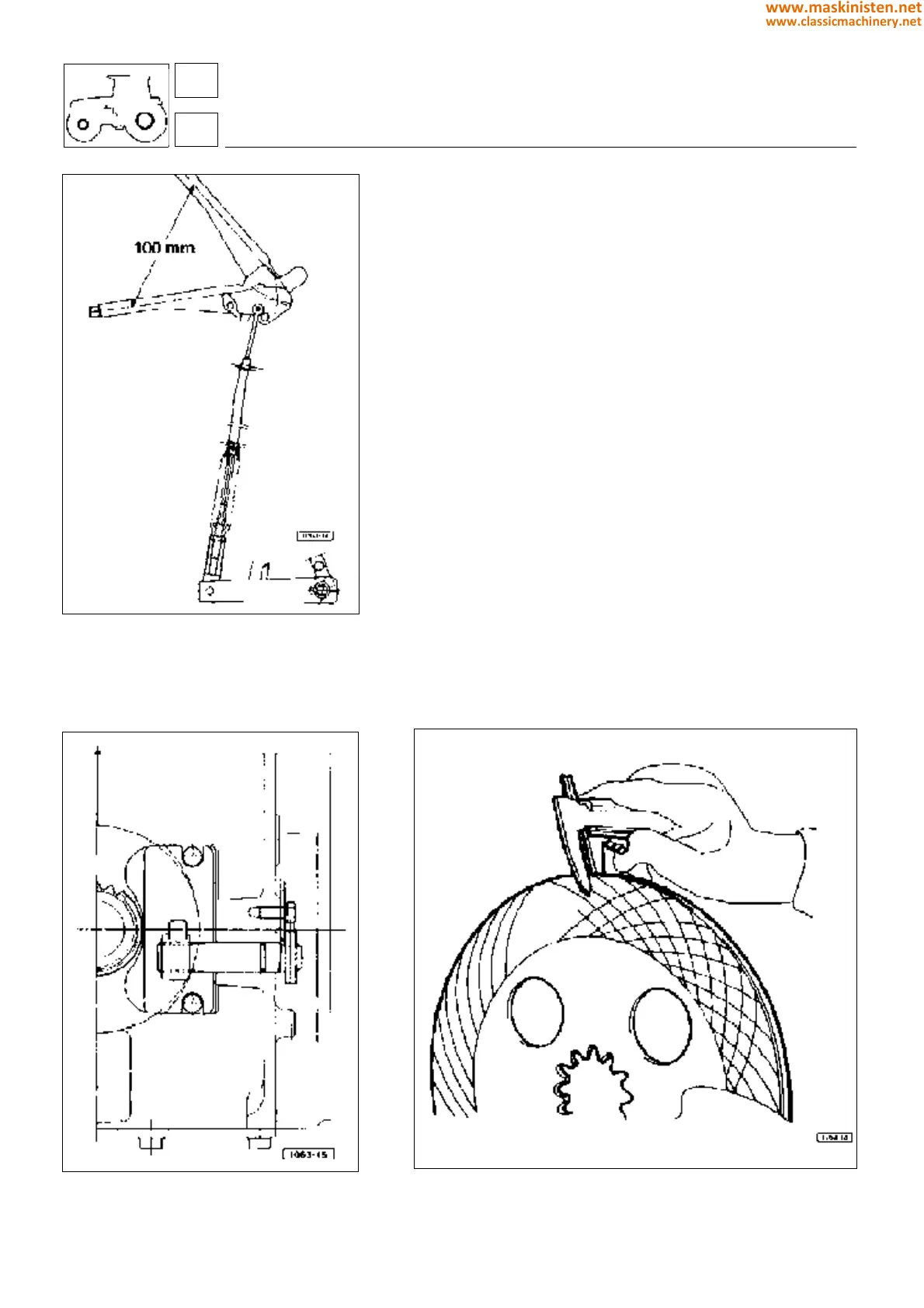

Fig. 15 - Parking brake checking and adjusting
dimension.
Fig. 16 - Parking brake.
The parking brake, completely independent from the service
brakes, is applied by pulling the special hand lever upwards.
Once the parking brake is applied the related pilot lamp on the
dashboard lights up.
Checking parking brake pads
Examine the brake pads for wear. If brake pad thickness is out of
specifications these shall be replaced.
Brake pads can be dismounted after removing the lower brake
pad lockpin, this permits access through the cover placed under
the gearbox to be gained.
Before installing new brake pads, check lockpin seal ring condi-
tions, replace if necessary.
Parking brake control lever overall travel
This travel should be 100 mm, otherwise operate the special
adjusting screw until the specified dimension is obtained.
Fig. 17 - Measuring the brake disk thickness.
vehicle
brakes
54
5
220
