MULTIFUNCTION CONTROL HANDSET (only available for machines equipped with electronic lift and engine with
electronic rpm control).

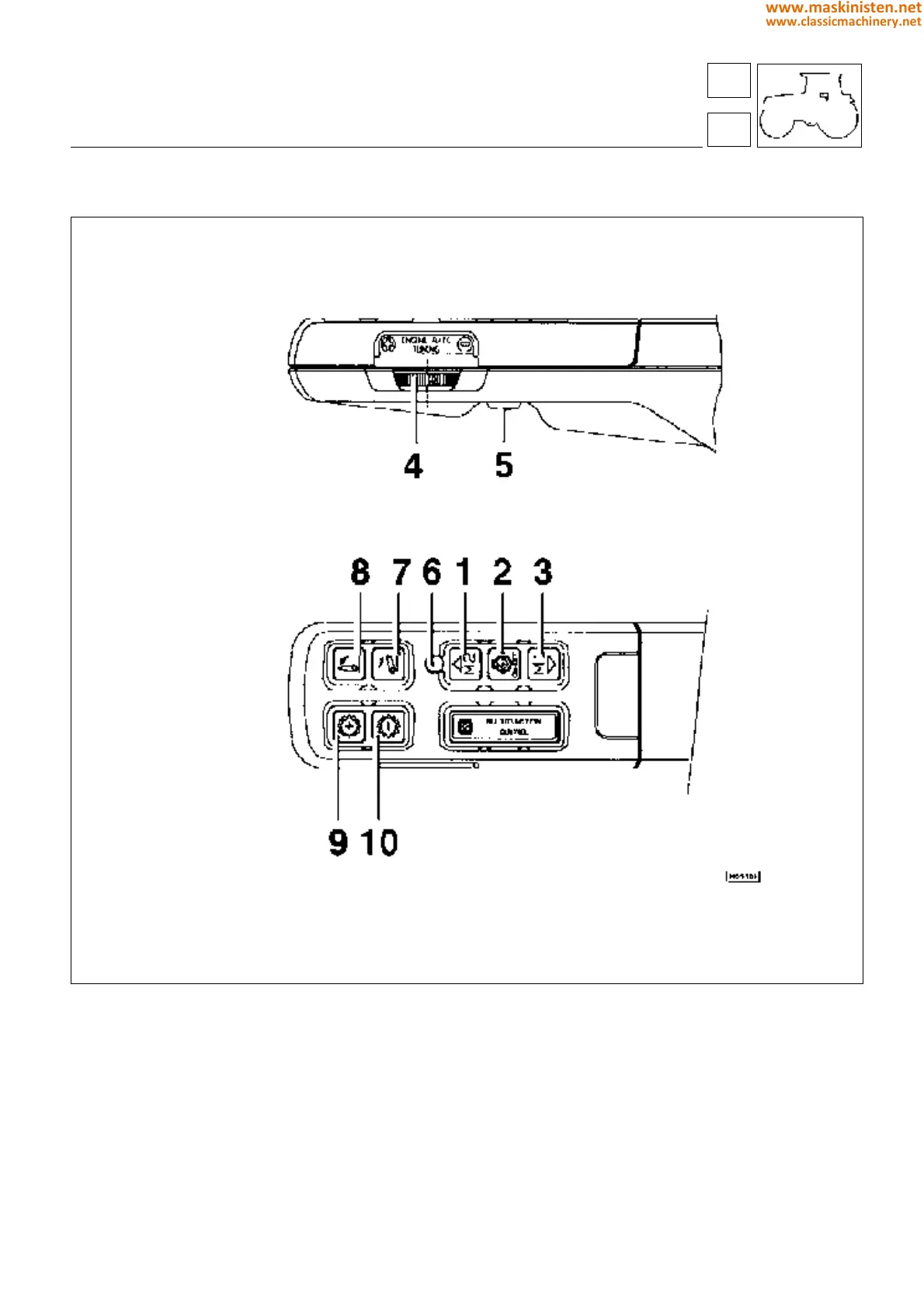

Fig. 1 - Multifunction control unit
1 - MAXIMUM memory storage and recall
2 - Temporary memory/storage and recall
3 - MINIMUM memory storage and recall
4 - Precision engine speed regulator
5 - Permissive pushbutton
6 - Memory engaged lamp and ISOCRONA speed regulator
7 - Lower rear lift
8 - Raise rear lift
9 - AGROSHIFT increase gear change
10 - AGROSHIFT lower gear change
controls
multifunction control unit
68
6
329
