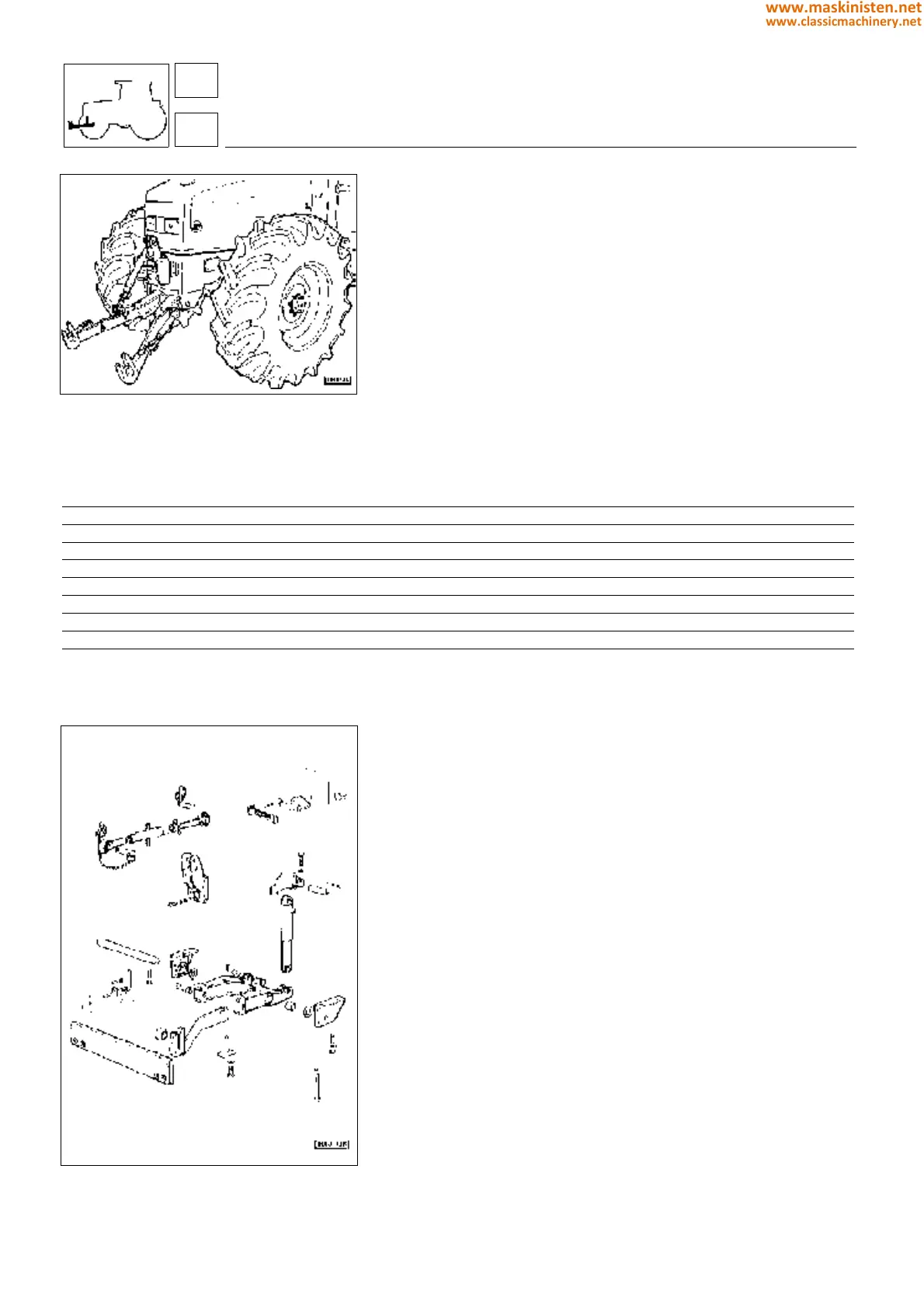

Fig. 1 - Front power-lift.
Fig. 2 - Front hydraulic power-lift parts.
General information
On request the tractor can be equipped with the front hydraulic
lifting system.
It is operated by means of two hydraulic cylinders actuated by the
related control lever placed at the right-hand side of the operator
driving position.
The lever controls a single-acting distributor valve linked to the
rear tractor power-lift case.
Specifications
power-lift type with two hydraulic cylinders and removable arms
hydraulic cylinder type single-acting
oil supply from the rear auxiliary hydraulic distributor
peak operating pressure bar 180
cylinder stem diameter mm 50
lifting stroke mm 170
distance between both lower link ends mm 865
lifting capacity kg 1500
Inspections
Ensure that the cylinder pin bushings are not worn and be sure
these are firmly secured in their seats.
NOTE: Replace gaskets after each hydraulic lifting cylinder disas-
sembly.
