SAME SILVER 80 - Auxiliary Lifting Cylinders

Fig. 37 - Removing the stem from cylinder.
A Stem
B Cylinder

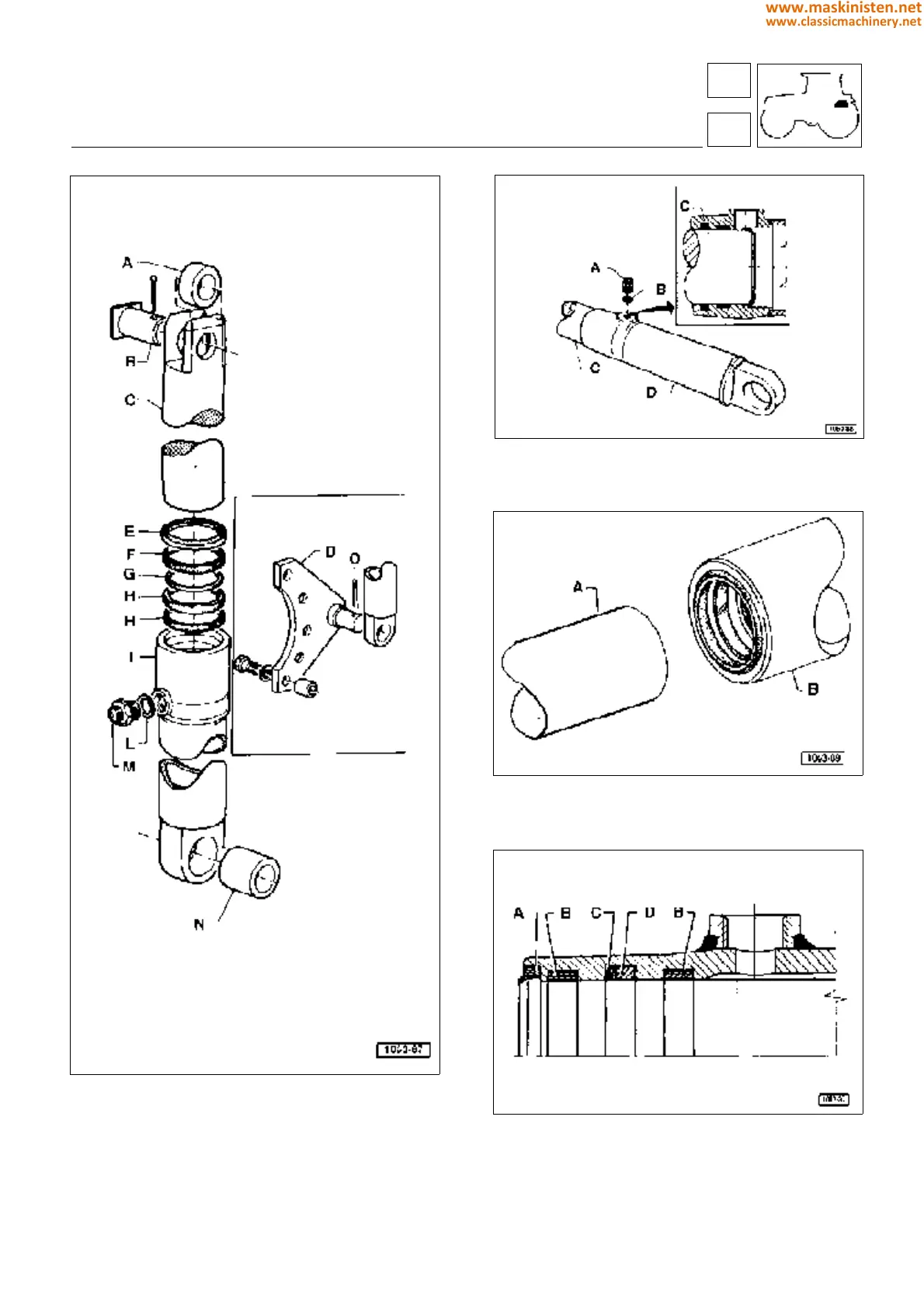

Fig. 35 - Auxiliary hydraulic lifting cylinders.
A Bushing
B Upper pin
C Stem
D Bracket
E Oil retainer ring
F Guide ring
G Teflon ring
H Seal ring
I Cylinder
L Gasket
M Fitting
N Spacer
O Snap ring
Fig. 36 - Hydraulic distributor stem.
A Fitting
B Gasket
C Stem
D Cylinder
Fig. 38 - Distributor internal seal rings.
A Oil retainer
B Guide ring
C Teflon ring
D Seal ring
