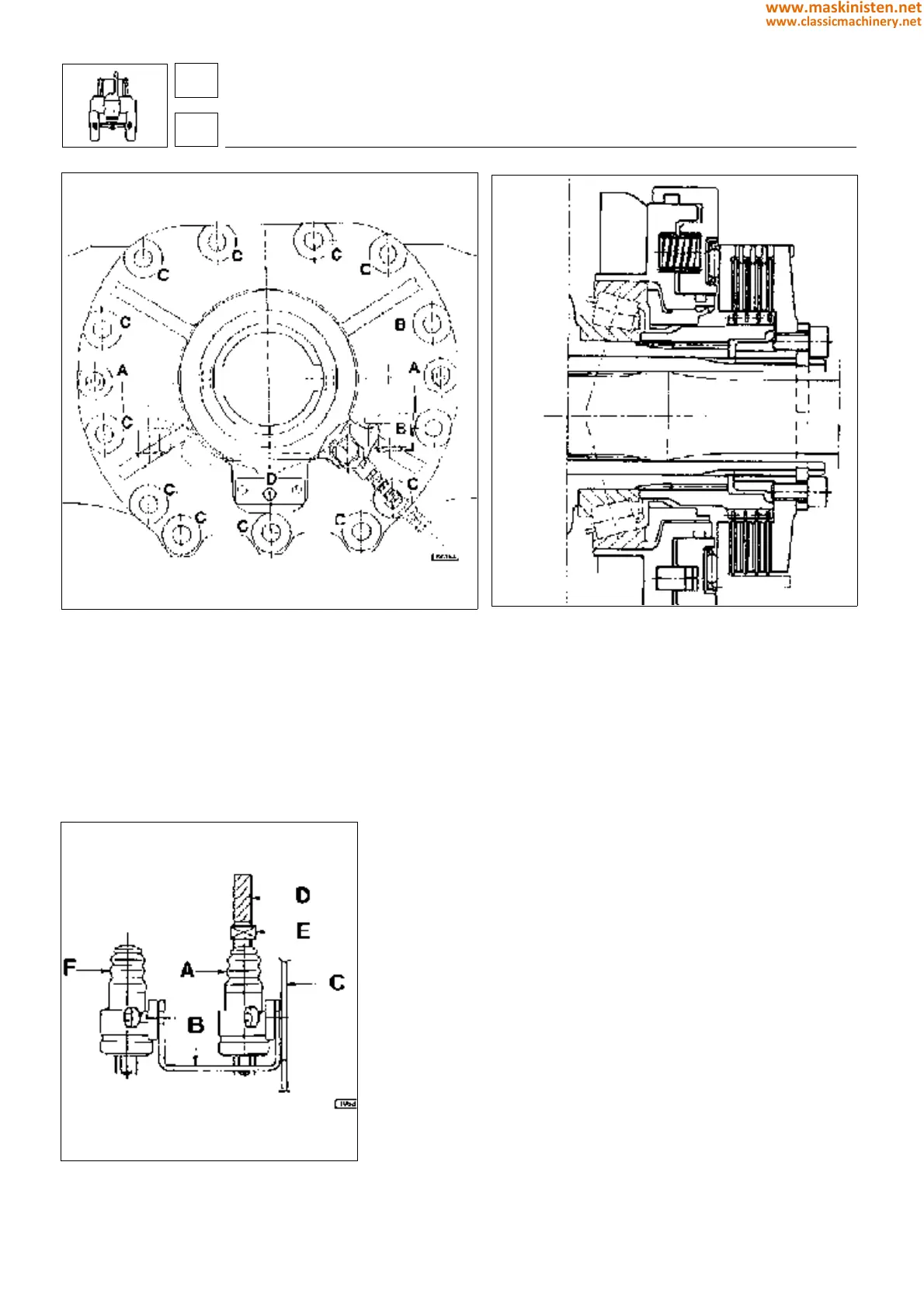

Fig. 6 - Installing the differential in the axle. Fig. 7 - Differential lock clutch.
Installation of differential unit in front axle
To refit the differential unit, repeat the removal operations described on page 209 in reverse order. In addition:
— Apply Loctite 272 to the threads of the 2 studs at A, p/n 2.1699.434.0 (fig 6).
— Apply Loctite 270 to the threads of the 2 bolts at B, p/n 2.0113.413.2 (fig 6).
— Apply Loctite 270 to the threads of the 11 bolts at C p/n 2.0113.415.2.
— Torque the two bolts B - C to 107 Nm (11 kgm).
NB: Position the plate with the hole D directed downwards
Fig. 8 - SBA System brake sensor.
drive axles - axles
4-W.D. front axle
Assembly and positioning of the SBA system brake
switches
Position switch A on mount B and fix to part C, without tightening
the screws.
Locate 1 x 4 mm spacer E between the pedal D and the feeler of
the switch.
Press the switch against the spacer so that the slider is at its travel
limit, then tighten the screws.
Repeat the procedure for the remaining switch F.
43
4
212
