CORRECT FITMENT OF DRAFT CONTROL SENSOR
Screw the sensor tightly into its seating and verify that the notch A is facing downwards.
Tighten the sensor B to a torque of 150 Nm (15 kgm approx.).
When installing, smear a small quantity of Loctite 242 on the thread C of the sensor.

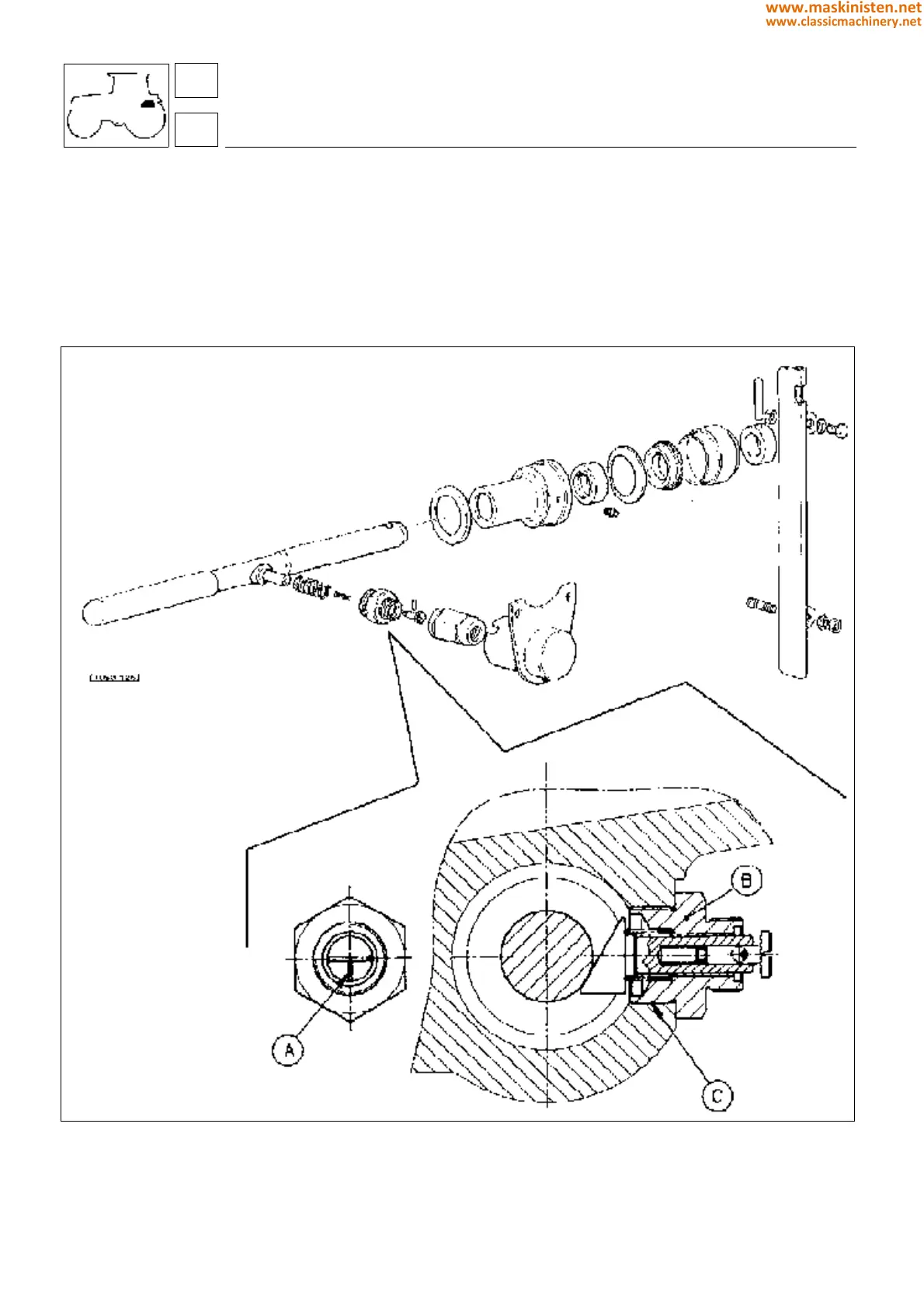

Fig. 13 - Component parts of the draft control system.
59
5
vehicle
electronic power-lift
258
