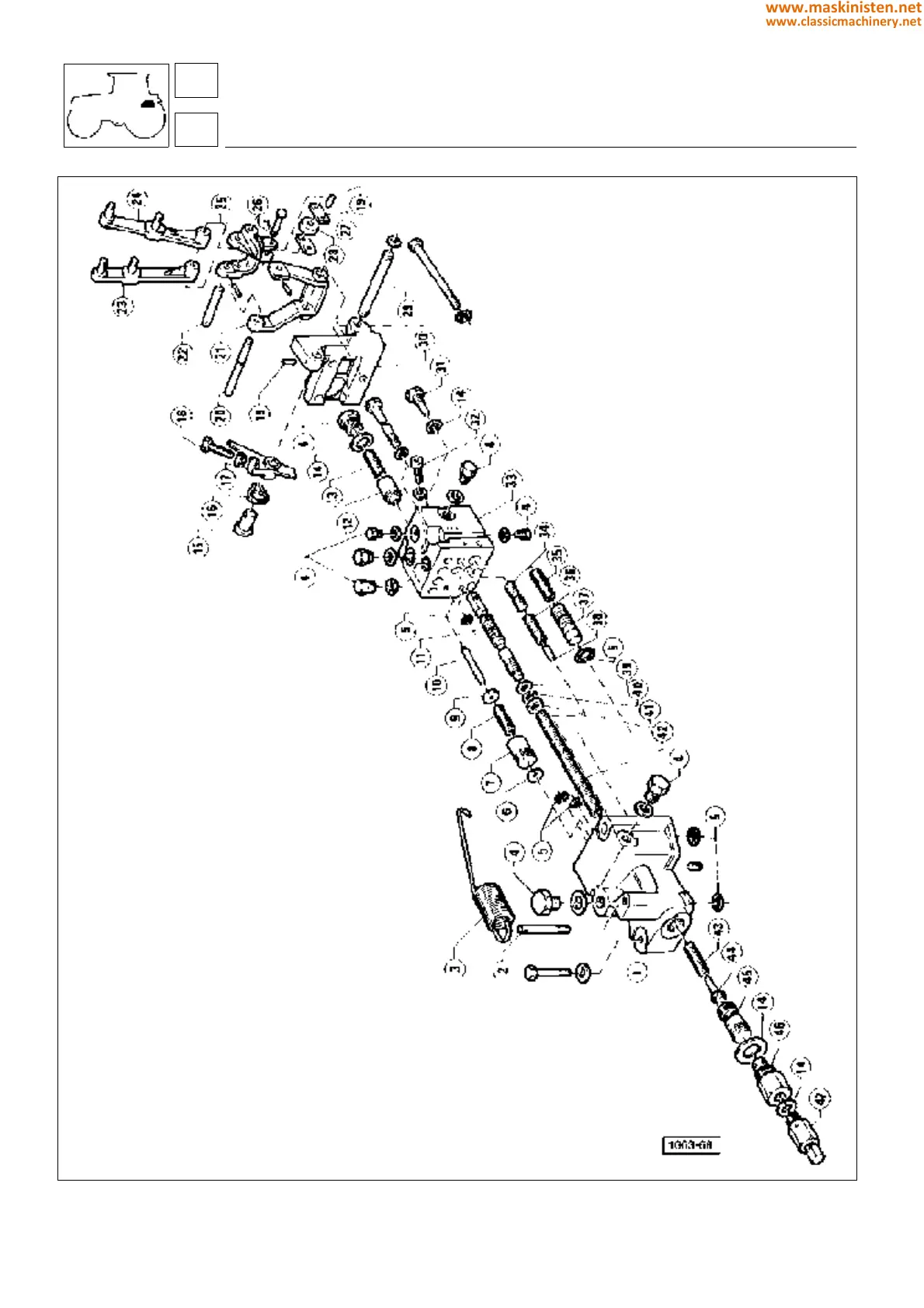

Hydraulic distributor assembly.
25 intermediate fork
26 pin
27 plate
28 spacer
29 pin
30 lever support
31 cap screw
32 oil inlet valve
33 rear case
34 pilot/control valve piston
35 spring
36 spring
37 oil flow control valve piston
38 spacer
39 shoulder ring
40 snap ring
41 plate with snap ring groove
42 hydraulic distributor spring
43 spring
44 spacer
45 valvematic device piston
46 fitting
47 anti-shock valve
1 front case
2 spring fixing pin
3 spring
4 plug
5 O-ring
6 shim
7 nonreturn valve piston
8 spring
9 plate
10 nonreturn valve pushrod
11 distributor stem
12 nonreturn valve
13 spring
14 gasket
15 pin
16 spring
17 limit lever
18 setscrew
19 pin
20 stud
21 fork
22 stud
23 lever
24 lever
