Inspections and checks
Carry out a thorough check and adjust the end play as follows:
— Move the axle forward tapping with a non-ferrous metal ham-
mer.
— Use thickness gauge A (see Fig. 5), to make sure that the end
play between shoulder ring B and differential housing C is
within specifications given in the related table (see page 195).
If the end play is correct loosen the four nuts securing front
swivel support C to drive axle A and add or remove a number
of shims B enough to obtain the recommended end play.
— Bleed the air from the brake system.
— Check the toe-in and adjust the differential lock operating rod
if necessary.
— Tighten the swivel support securing nuts to the specified
torque.
Swivel support securing nuts
front 89 Nm (9,1 kgm)
rear 142 Nm (14,5 kgm)

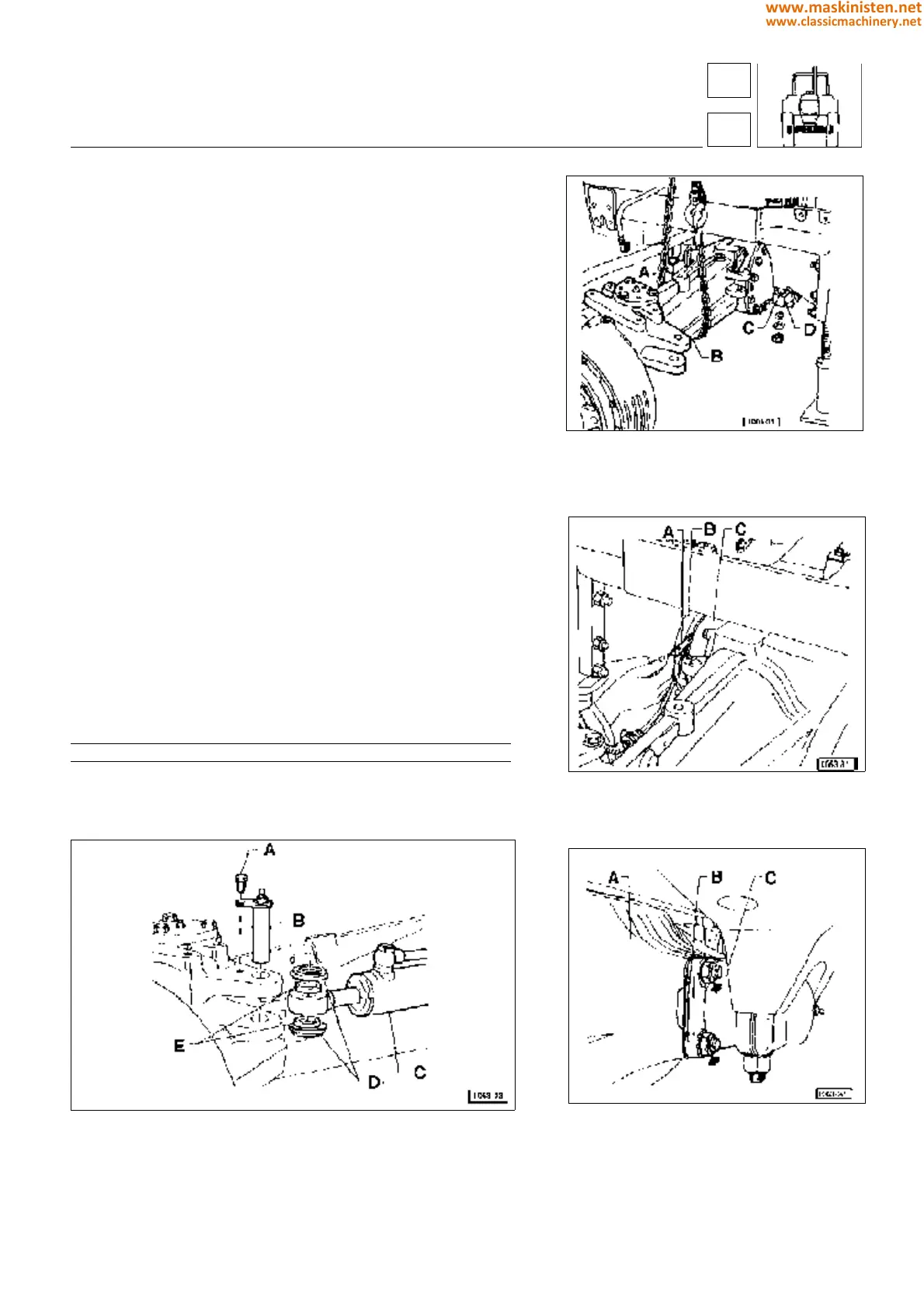

Fig. 7 - Power steering cylinder securing pin.
A - Pin securing pin
B - Power steering cylinder fixing pin
C - Power steering hydraulic cylinder
D - Dust cover
E - Spacers
Fig. 4 - Removing/Installing the front drive axle.
A - Swivel supports
B - Front axle
C - Spacers
D - Swivel support
Fig. 5 - Checking the front axle end play.
A - Thickness gauge
B - Shoulder ring
C - Differential housing
Fig. 6 - Front axle end play check point.
A - Front drive axle
B - Shims
C - Front swivel support
drive axles - axles
4-W.D. front axle
43
4
197
