SAME SILVER 80 User Manual

Adjustment of front and rear differential lock control mechanism for machines not equipped
with SBA System
Adjust the yoke A and the lock nut B to obtain a preload on the spring C such as will give a clearance X that allows
contact with the piston E (with spring D attached), when this is positioned flush with surface F in the electrohydraulically
operated version, and a projection of 18,5 mm in the mechanically operated version; check also that the shoes of the
yoke do not rub against the sides of the coupling sleeve.
For adjustment of the coupler, refer to the chapter on four wheel drive with SBA System.

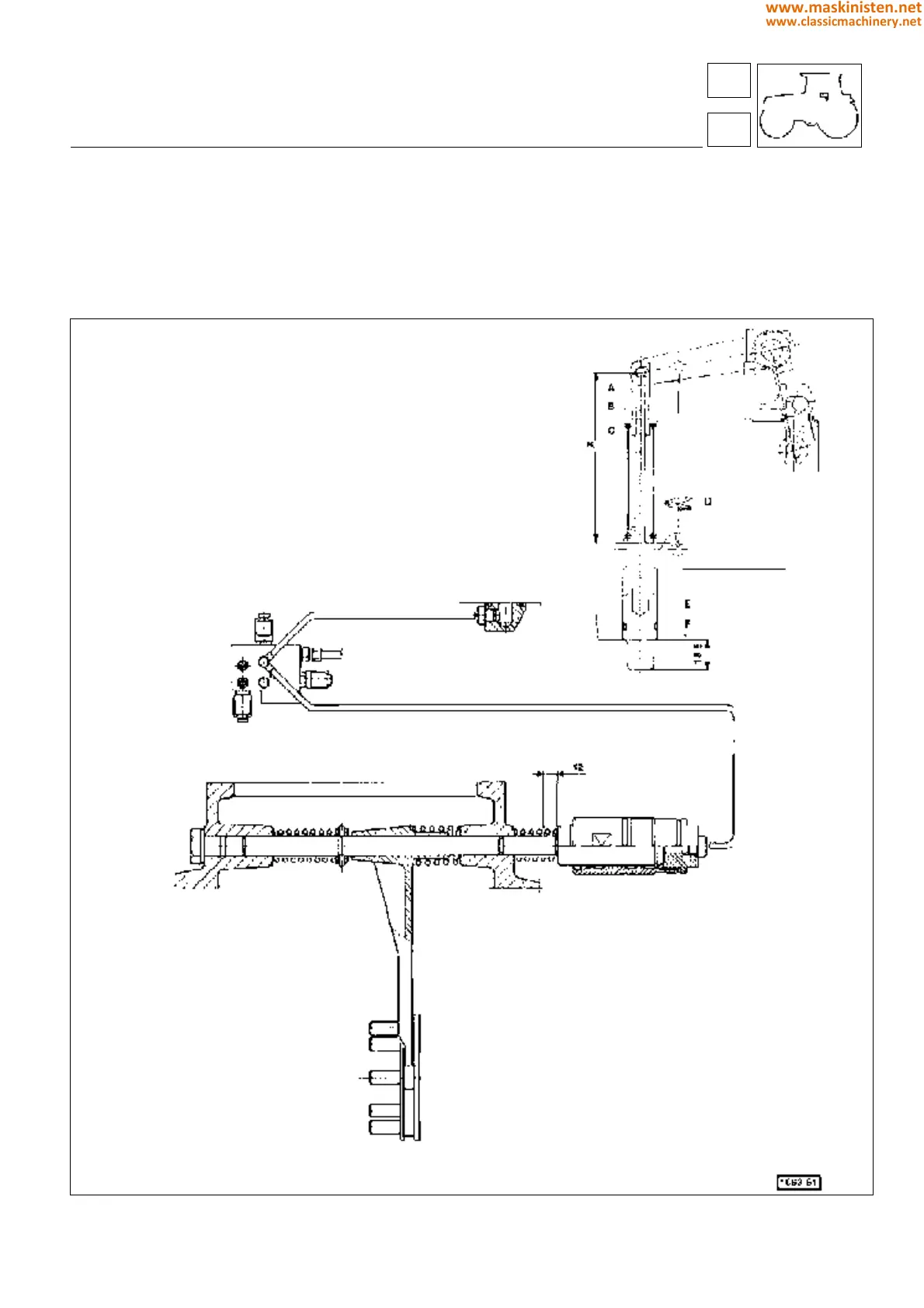

Fig. 15 - Front and rear differential lock control linkage for machines not equipped with SBA System.
