FITMENT OF CROSS SHAFT CRANK LEVER SET SCREW
To ensure correct fitment of the set screw A to the crank lever B, apply LOCTITE 242 to the thread.
Turn the screw into the relative socket of the cross shaft C until fully home, then loosen half a turn and tighten the nut D.

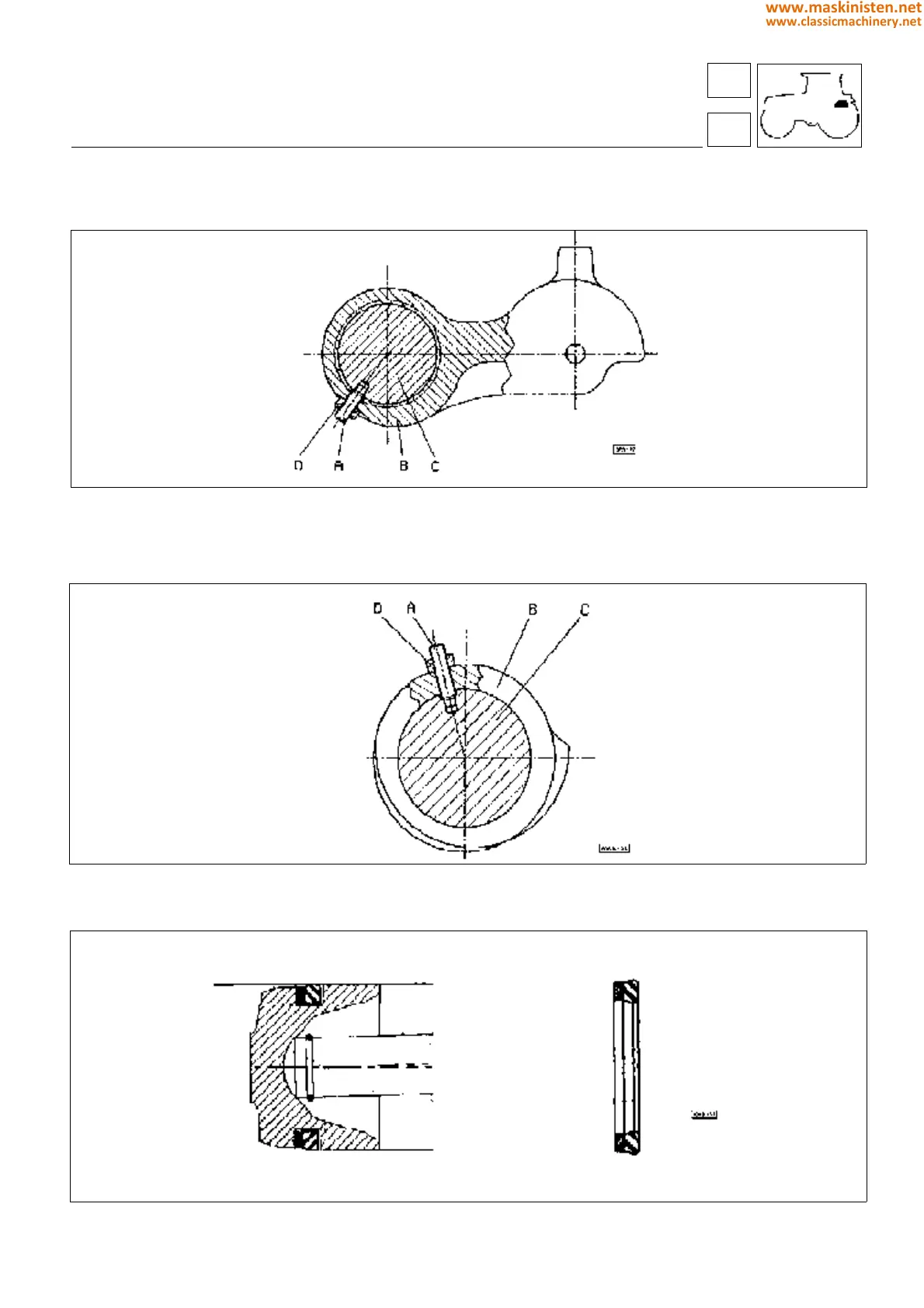

Fig. 3 - Fitment of set screw to cross shaft crank lever inside lift housing.
FITMENT OF CROSS SHAFT CAM SET SCREW
To ensure correct fitment of the set screw A to the cam B, apply LOCTITE 242 to the thread.
Turn the screw into the relative socket of the cross shaft C until fully home, then loosen half a turn and tighten the nut D.
Fig. 4 - Fitment of set screw to cross shaft cam.
Fitment of piston seal
When fitting, position the seal on the piston as illustrated below.
Fig. 5 - Fitment of piston seal.
