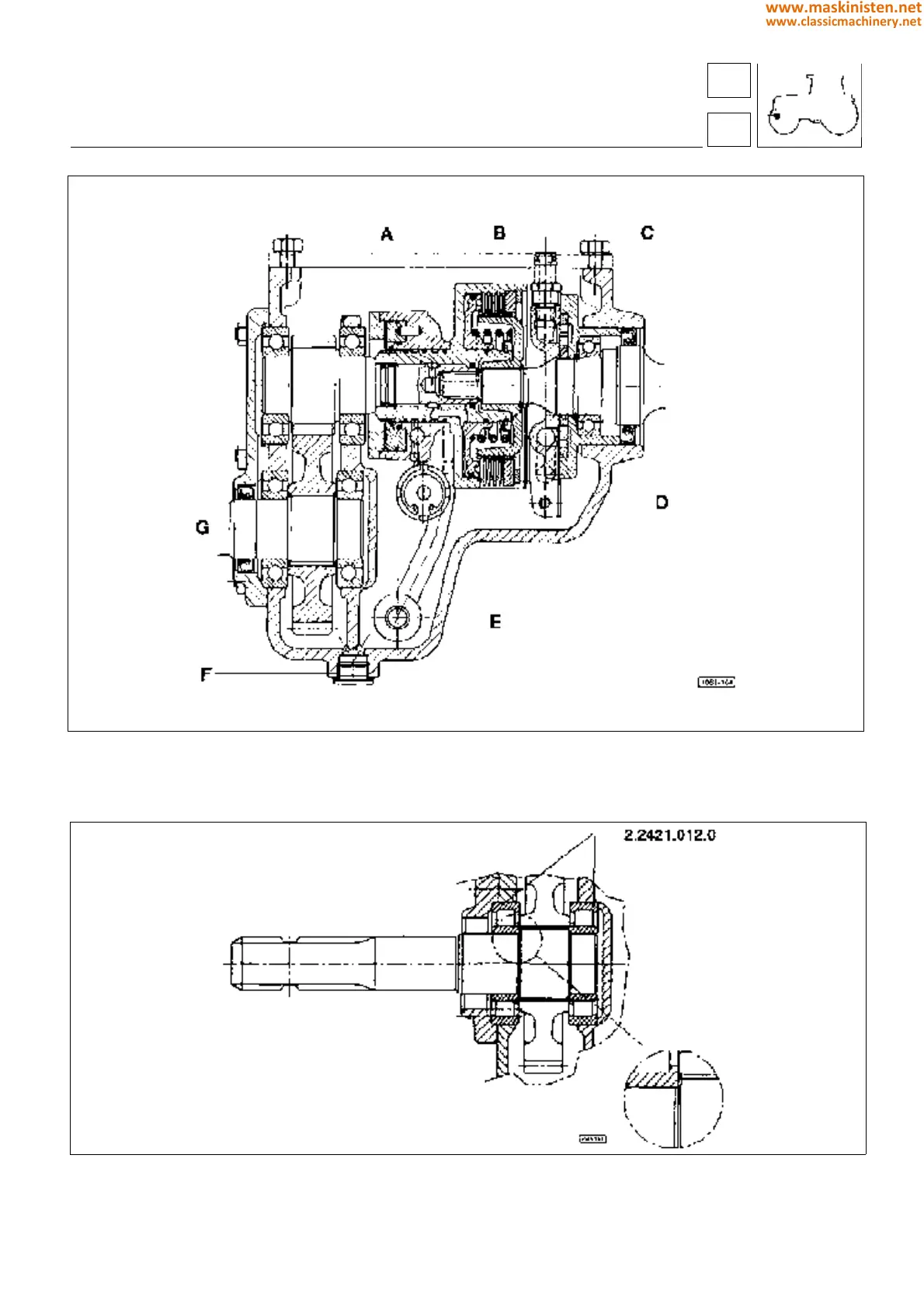

Fig. 7 - Cross-section of the front P.T.O. assembly.
Fig. 8 - Top view of front P.TO.
Correct fitment of front P.T.O. shaft bearing
Locate the bearing 2.2421.012.0 with the shoulder directed toward the gear as indicated in fig 8.
Apply some LOCTITE 510 (red) on the screw threads.
A - Brake disc
B - Clutch discs
C - Oil pump
D - Input shaft
E - Strainer
F - Oil drain plug
G - P.T.O. shaft
59
5
vehicle
front power take-off
289
