SAME SILVER 80 - Page 300

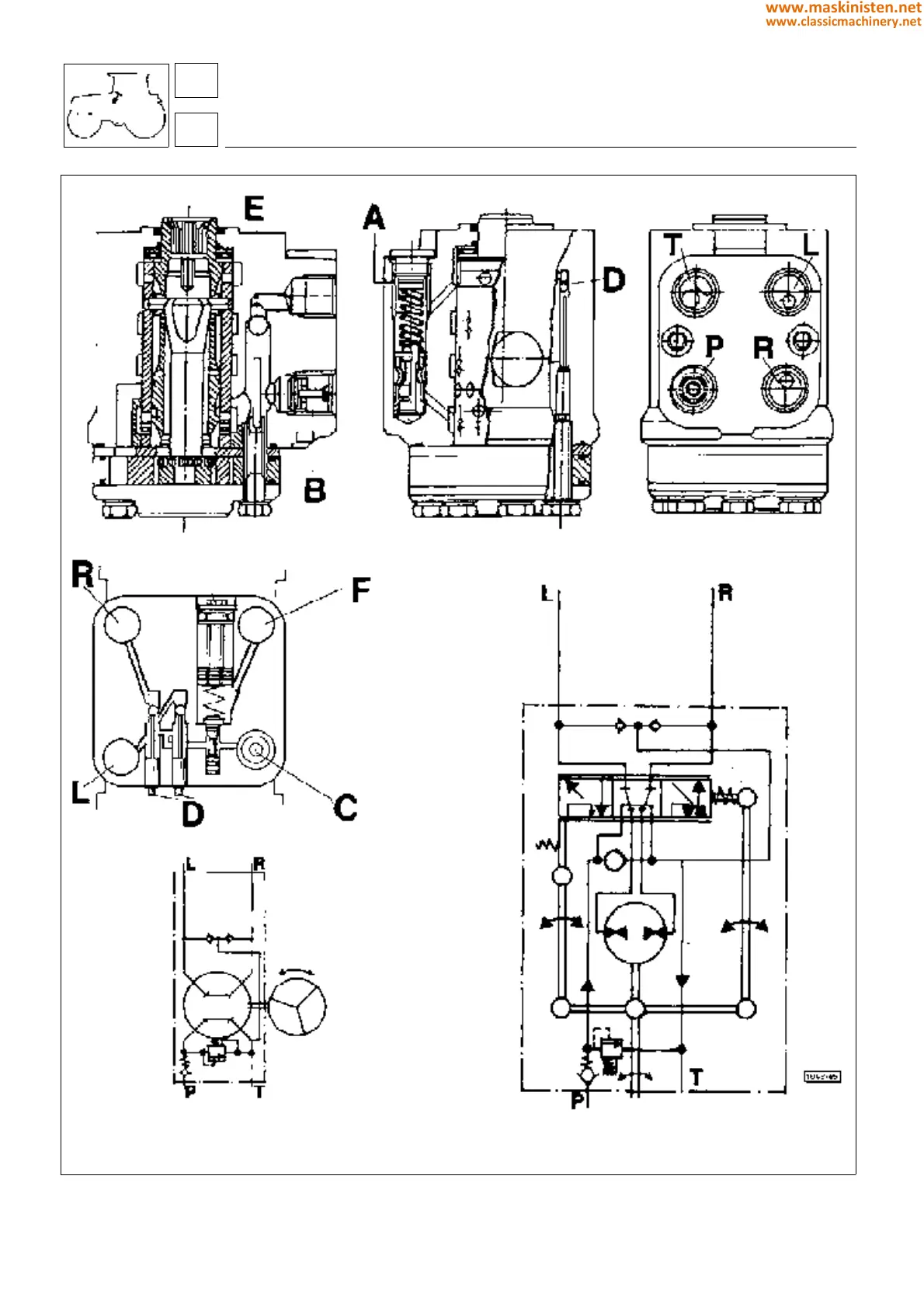

Fig. 10 - Distributor cross-section.
controls
hydrostatic steering
A - pressure relief valve
B - check valve
C - from pump
D - anticavitation valve
E - emergency steering check valve
F - return flow
L - to left hand cylinder
R - to right hand cylinder
P - pump
T - tank
63
6
300
