controls
hydrostatic steering

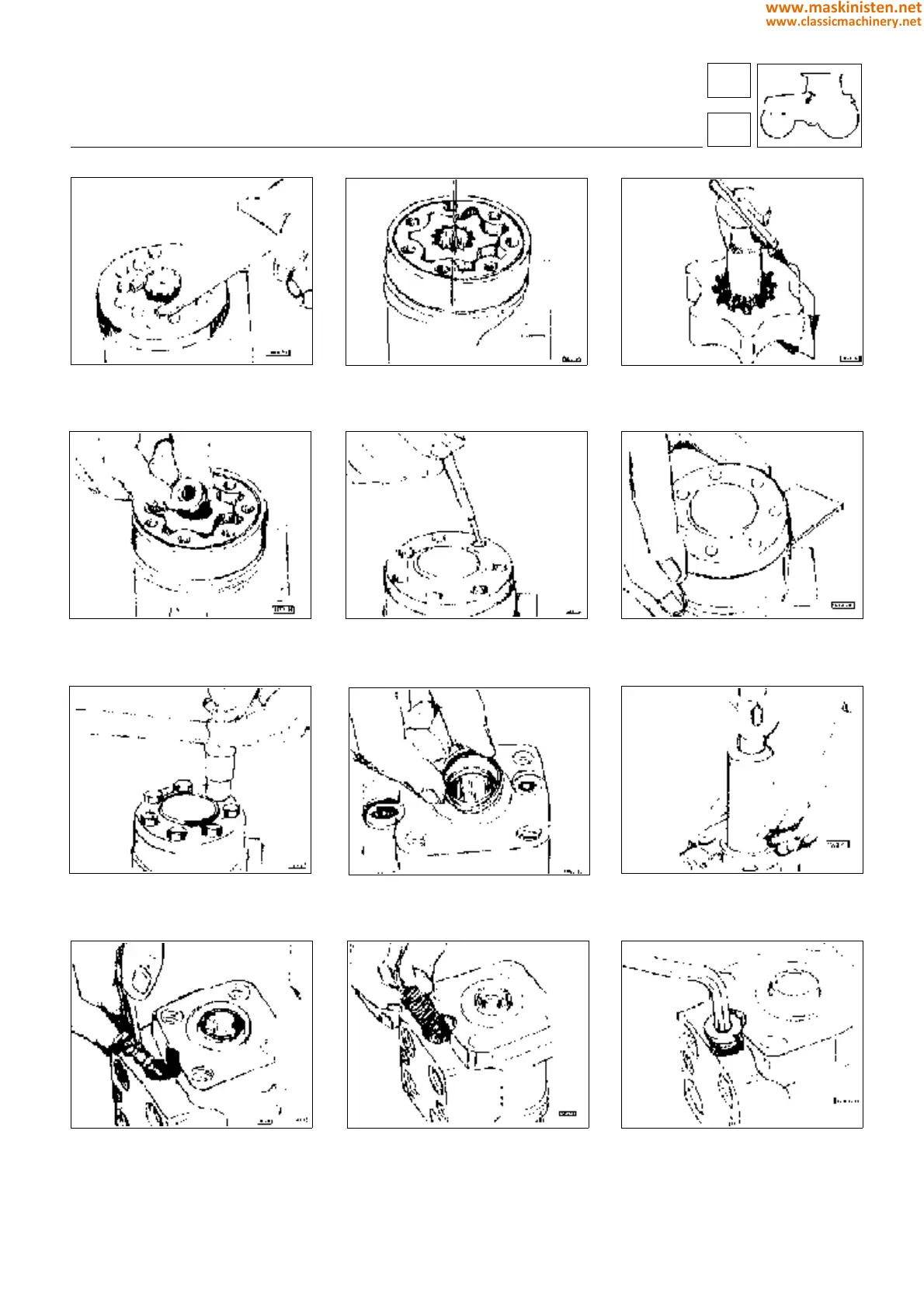

27 - Place the spacer ring. (only for
those models which the spacer is fitted).
28 - Install the pin screw in the special
hole (the ball valve hole).
29 - Fit the cover.
30 - Fix the cover with the securing
screws by tightening to the recom-
mended torque.
31 - Fit the seal ring. 32 - Insert the seal ring into its seat.
33 - Install the pressure relief valve. 34 - Insert the spring. 35 - Fit the pressure relief valve cap
screw.
24 - Place the fork as shown in figure so
as the drive shaft may be held in posi-
tion.
25 - After inserting the two O-rings
properly lubricated into the oil flow con-
trol shutter fit the stator positioning as
shown in figure.
26 - The rotor should be placed to the
stator and then swiveled with regard to
the drive shaft as shown in figure.
63
6
299
