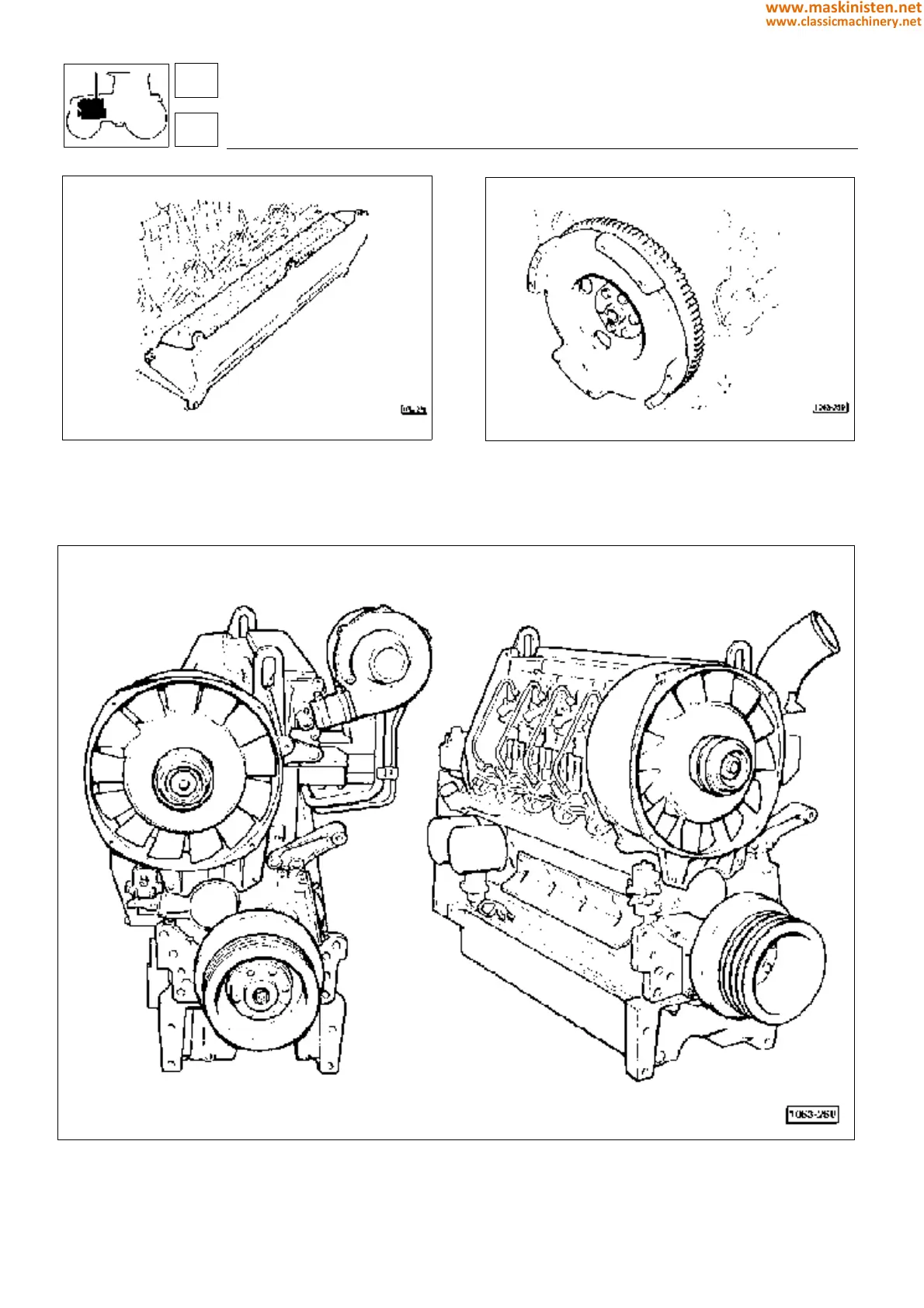

Fig. 83 - Install the engine oil radiator;
Fig. 85 - Engine views.
Fig. 84 - Install the injection pump guard. If required, install
the external application auxiliary drive unit interposing a
number of shims so that between the gear teeth the requierd
backlash may be established (also refer to page 25 instruc-
tions). Install the engine flywheel;
engine
assembly
1
106
