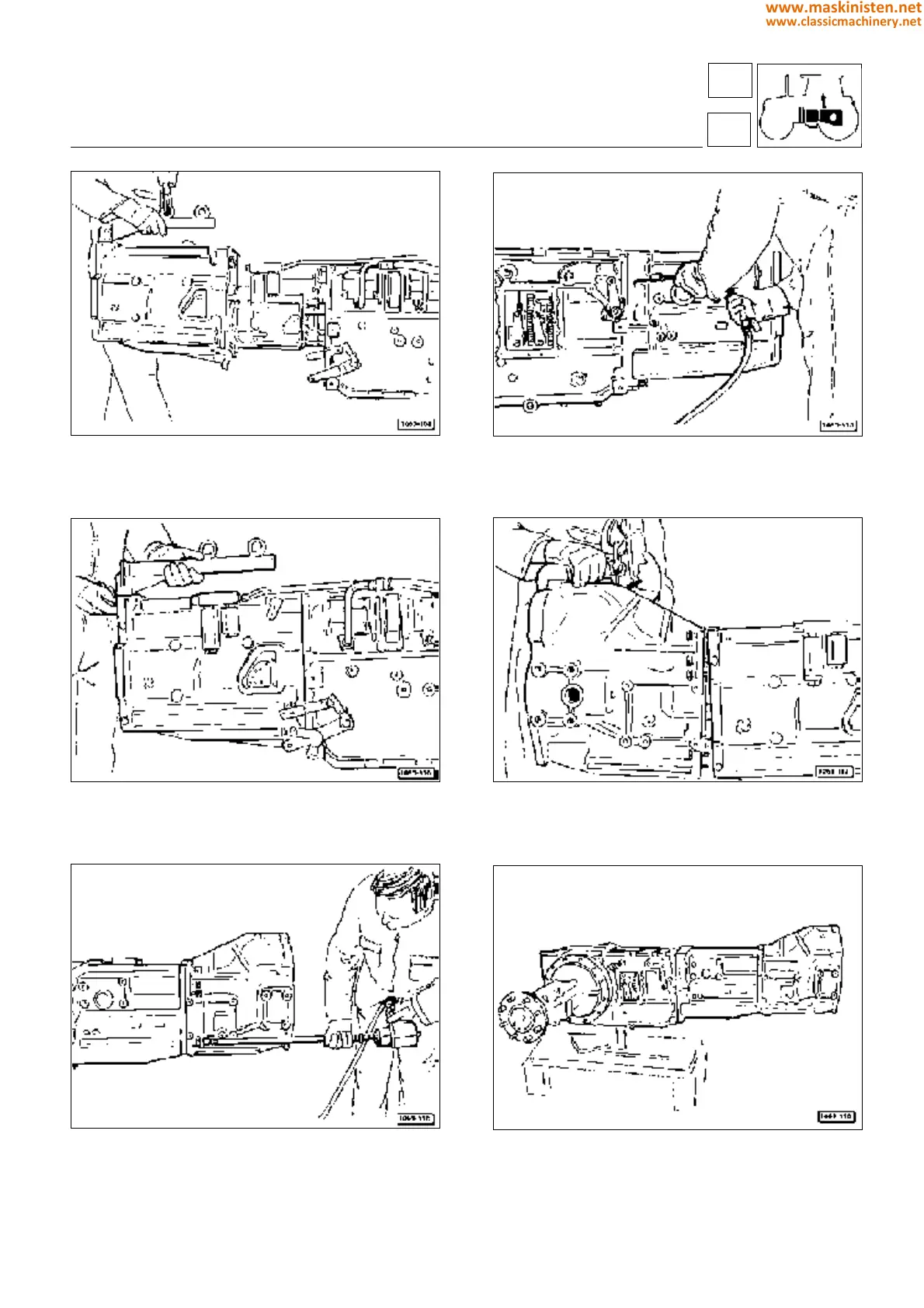

Fig. 52 - Using a hoist, unite the front and rear transmission
housings.
Fig. 54 - Detach the lifting gear from the front housing.
Fig. 56 - Secure the intermediate housing, torquing the bolts
to 14 kgm.
Fig. 53 - Secure the housing, torquing the bolts to 12 kgm.
Fig. 55 - Using a hoist, offer the intermediate housing to the
front transmission housing.
Fig. 57 - Transmission housing, complete.
