SAME SILVER 80 User Manual

Technical specifications
P.T.O. ratios SILVER 80 - 90 - 100.4 SILVER 100.6
540 rev/min (14/57) 1/4,0714 = (19/46)x(43/23)x(16/51) 1/4,1278
1000 rev /min (20/49) 1/2,450 = (19/46) 1/2,4211
775 rev /min(23/44)x(49/20)x(14/57) 1/3,1791 = (16/51) 1/3,1875
1300 rev /min (23/44) 1/1,9130 = (23/43) 1/1,8696
Live power take-off
Live power take-off is available at an independent rear shaft. Live P.T.O. is engaged with a specific selector (fig 7).
P.T.O. revolutions per wheel revolution SILVER 80 - 90 - 100.4 SILVER 100.6
- 30 km/h 1
st
version 33,729 33.919
2
nd
version 40,771 40,999
- 40 km/h 1
st
version 25,667 25,721
2
nd
version 31,026 31,090
1
a
version - up to S/N: SILVER 80 (S/N.1441) - SILVER 90 (S/N.1829) - SILVER 100.4 (S/N. 1335).
1
a
version - up to S/N: SILVER 100.6 (S/N.1547)
2
a
version - from to S/N: SILVER 80 (S/N.1442) - SILVER 90 (S/N.1830) - SILVER 100.4 (S/N. 1336).
2
a
version - from to S/N: SILVER 100.6 (S/N.1548)

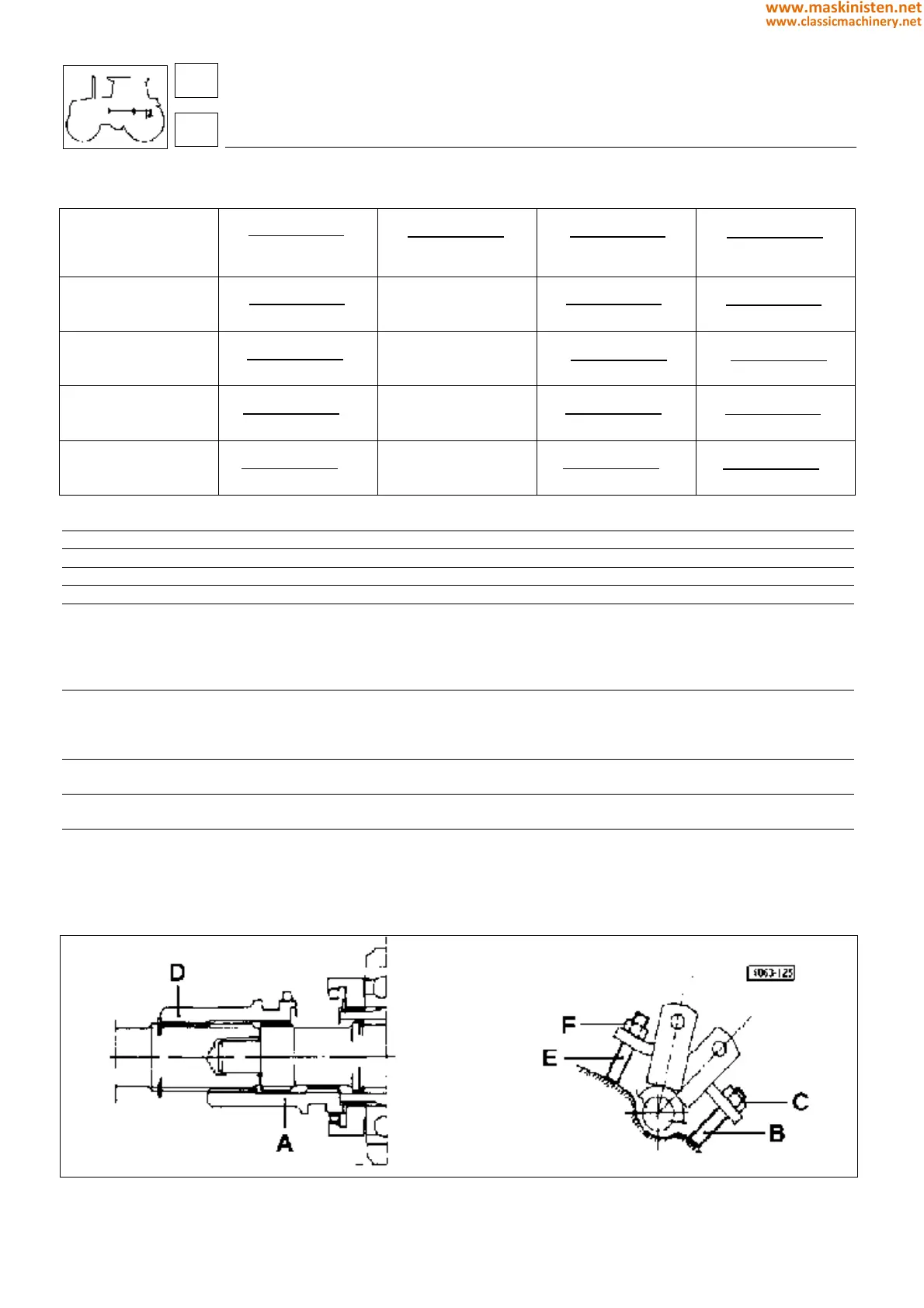

Adjustment of the Standard-Economy selector control linkage
Shift the sleeve into position A - STANDARD, and adjust the control linkage by turning the set screw B until in contact
with the rear support and then tightening the lock nut C.
Shift the sleeve into position D - ECONOMY, and adjust the control linkage by turning the set screw E until in contact
with the rear support and then tightening the lock nut F.
transmission
power take-off
power tak-off
PTO r.p.m.
engine r.p.m. at maximum
horsepower speed
engine r.p.m.
PTO r.p.m.
PTO r.p.m.
engine r.p.m. at fast
idling speed
PTO r.p.m.
engine r.p.m. at low
idling speed
540 r.p.m.
(2229 giri/mot.)
606
2500
4,1278
642÷649
2650÷2680
158÷170
650÷700
1000 r.p.m.
(2421 engine r.p.m.)
1033
2500
2,4211
1095÷1107
2650÷2680
268÷290
650÷700
775 r.p.m.
(2470 engine r.p.m.)
784
2500
3,1875
831÷841
2650÷2680
204÷220
650÷700
1300 r.p.m.
(2430 engine r.p.m.)
1337
2500
1,8695
1417÷1434
2650÷2680
348÷374
650÷700
Fig. 7 - Adjustment of the STANDARD-ECONOMY selector control linkage.
