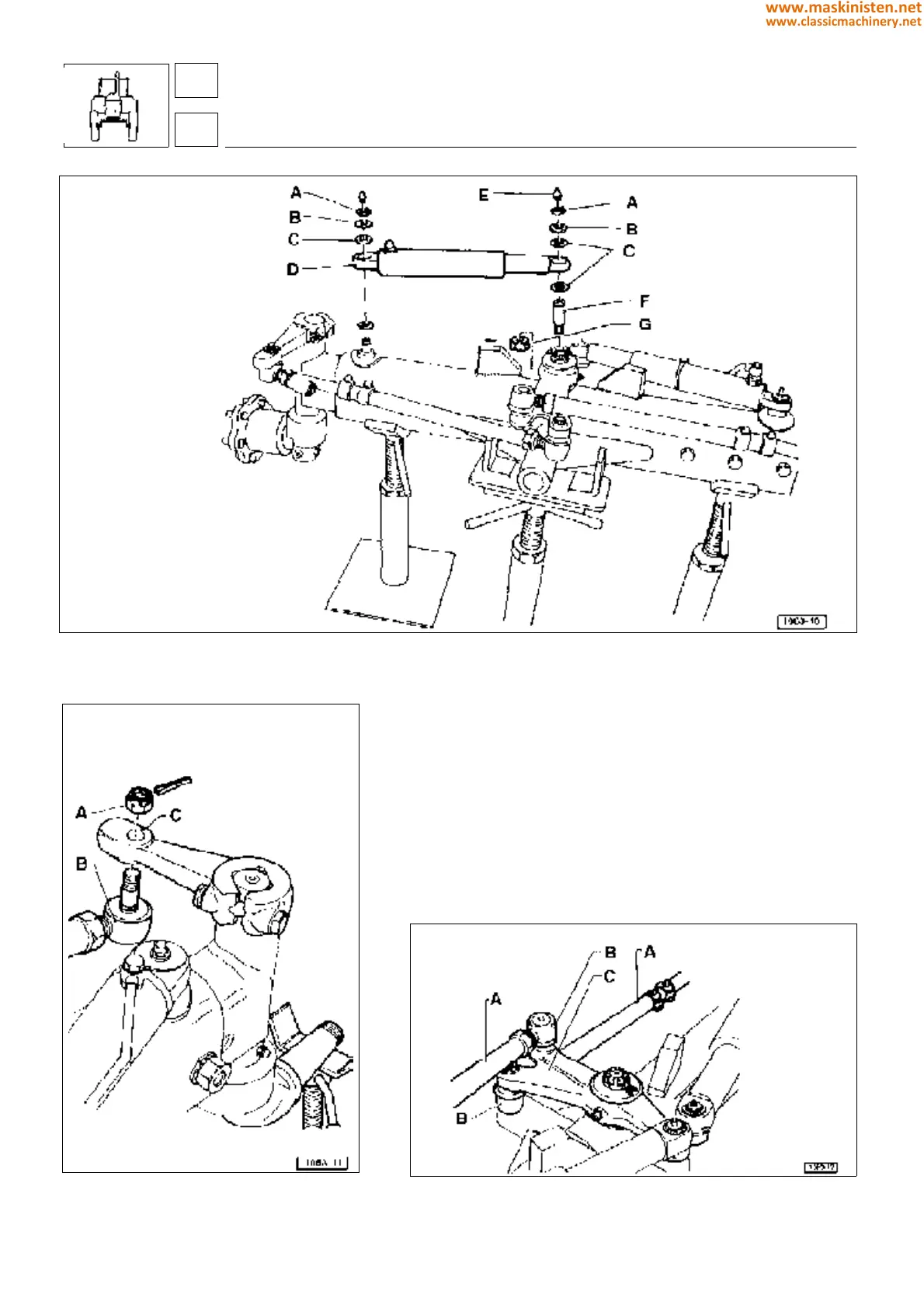

Fig. 10 - Front axle.
Fig. 11 - Steering arms.
— check steering rod ball-and-socket joints for damage or wear
and make sure these are able to rotate freely and without
excessive play inside their seats. Replace if necessary.
— Ensure the rubber ball joint guard is intact, otherwise replace
the ball joints.
— Examine the operating rods for damage or warping. Replace
if required.
Fig. 12 - Steering linkage.
drive axles - axles
2-W.D. extendible axle
A - Snap ring
B - Thrust ring
C - Seal ring
D - Power steering cylinder
E - Grease nipple
F - Pin
G - Castellated nut
A - Castellated nut
B - Ball-and-socket joint
C - External steering lever
A - Steering rods
B - Ball-and-socket joints
C - Centre steering lever
42
4
190
