Electrical connections for installation of air conditioning kit

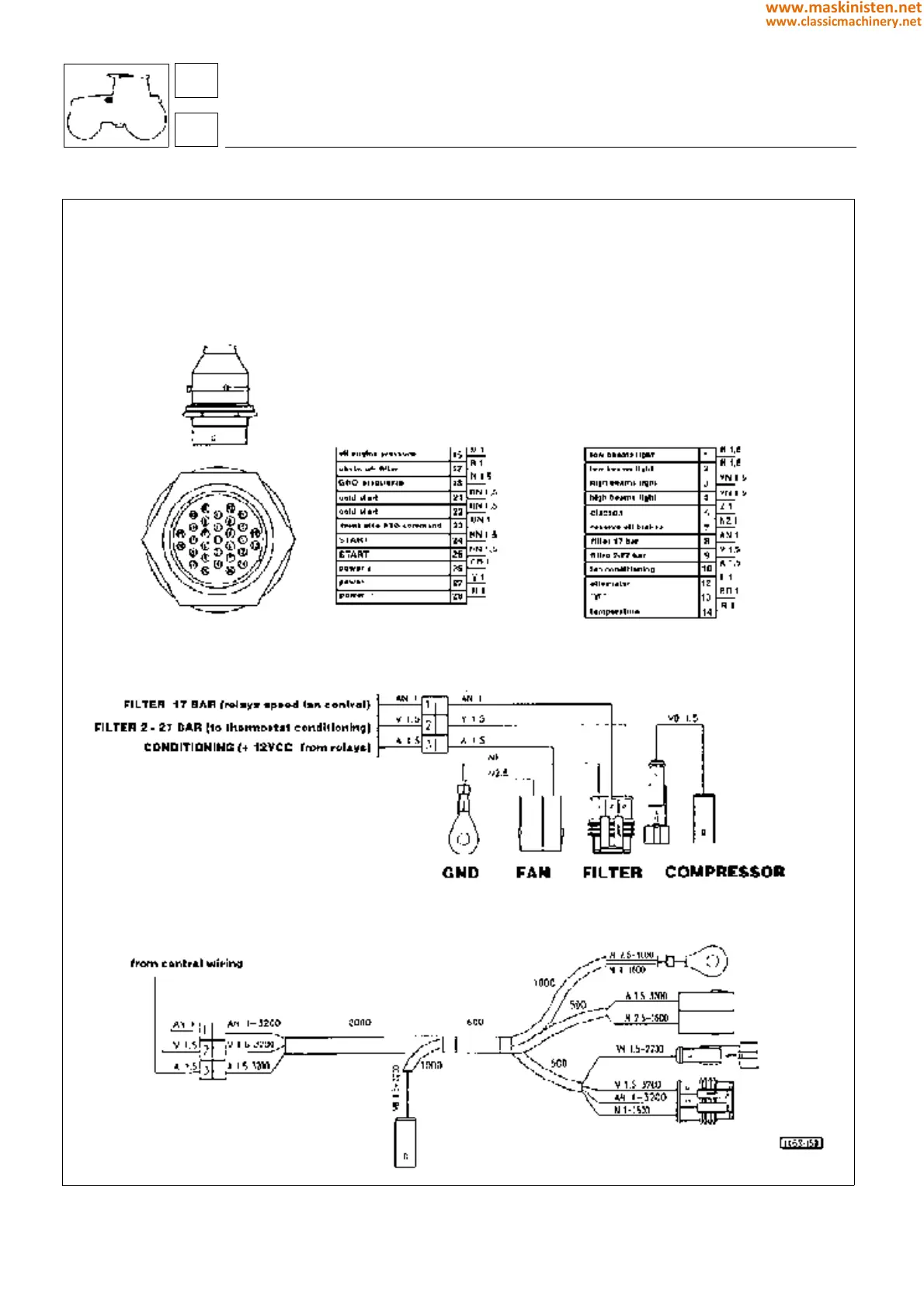

Fig. 10 - Wiring harness for air conditioning kit.
systems
air conditioning
In the event of air conditioning being fitted to a tractor already in service, the wiring supplied with the kit must be
connected to the central harness of the machine. This figure shows the tractor connector to enable identification of
the air conditioning system pin allocation, also the wiring specific to the air conditioning system and indications for
the connection of each single terminal.
Points to observe when making connections
The wires of the air conditioning system must be routed to the connector (25 pin round
female) of the central wiring harness.
The figure below indicates the positions of the wires and their functions.
To make the connection, remove the wires at positions 8, 9 and 10, route into a three
way block and connect with an extension as indicated in the diagram below.
If the round male connector has a plastic cap, connect the extension cable into the front
section wiring harness after having removed the plugs at positions 8, 9 and 10.
86
8
374
