Fitting the oil lines to auxiliary hydraulic spool valves.
These must be fitted as indicated in figure 15 and in accordance with the data in the table below.
At the moment of assembly, apply a small quantity of Loctite 572 to the spool valve fitting.

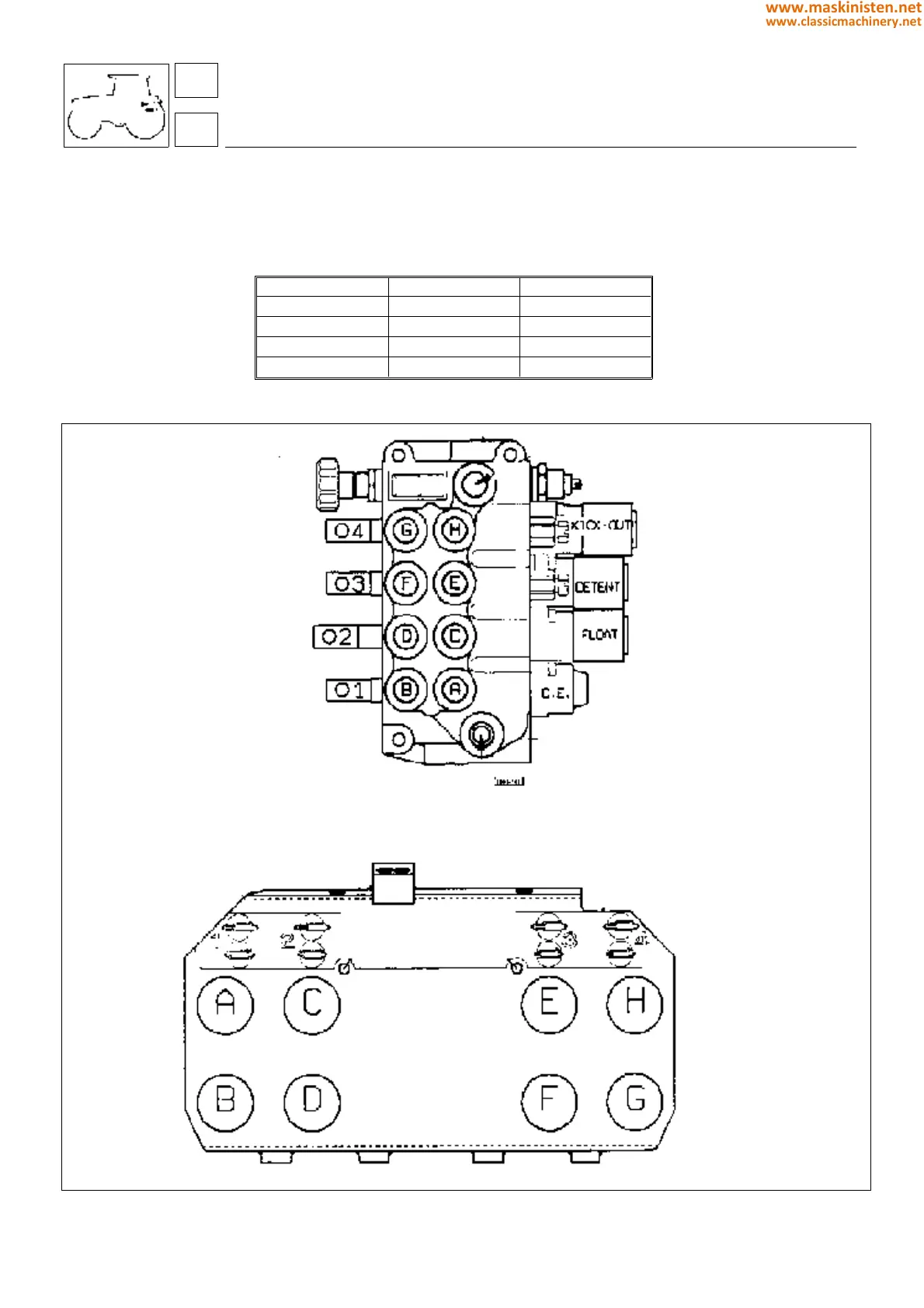

Fig. 15 - Fitment of oil lines to auxiliary hydraulic spool valves.
REF P/N LENGTH mm
A - B 008.9698.3 950
C - D 008.9699.3 850
E - F 008.9700.3/10 730
G - H 008.9701.3/10 630
88
8
systems
auxiliary systems
390
