INSTALLATION OF THE SHUTTLE UNIT
Pre-assembly of the Belleville springs
Arrange the Belleville springs on the hubs as shown in figure 5 and position the snap ring.
During assembly, ensure that the voids in the clutch plates are aligned with the voids in the bell housings as shown in
detail A and as indicated by arrows B in figure 6.
Note: the voids in the housings are aligned with the series of oil drain holes.

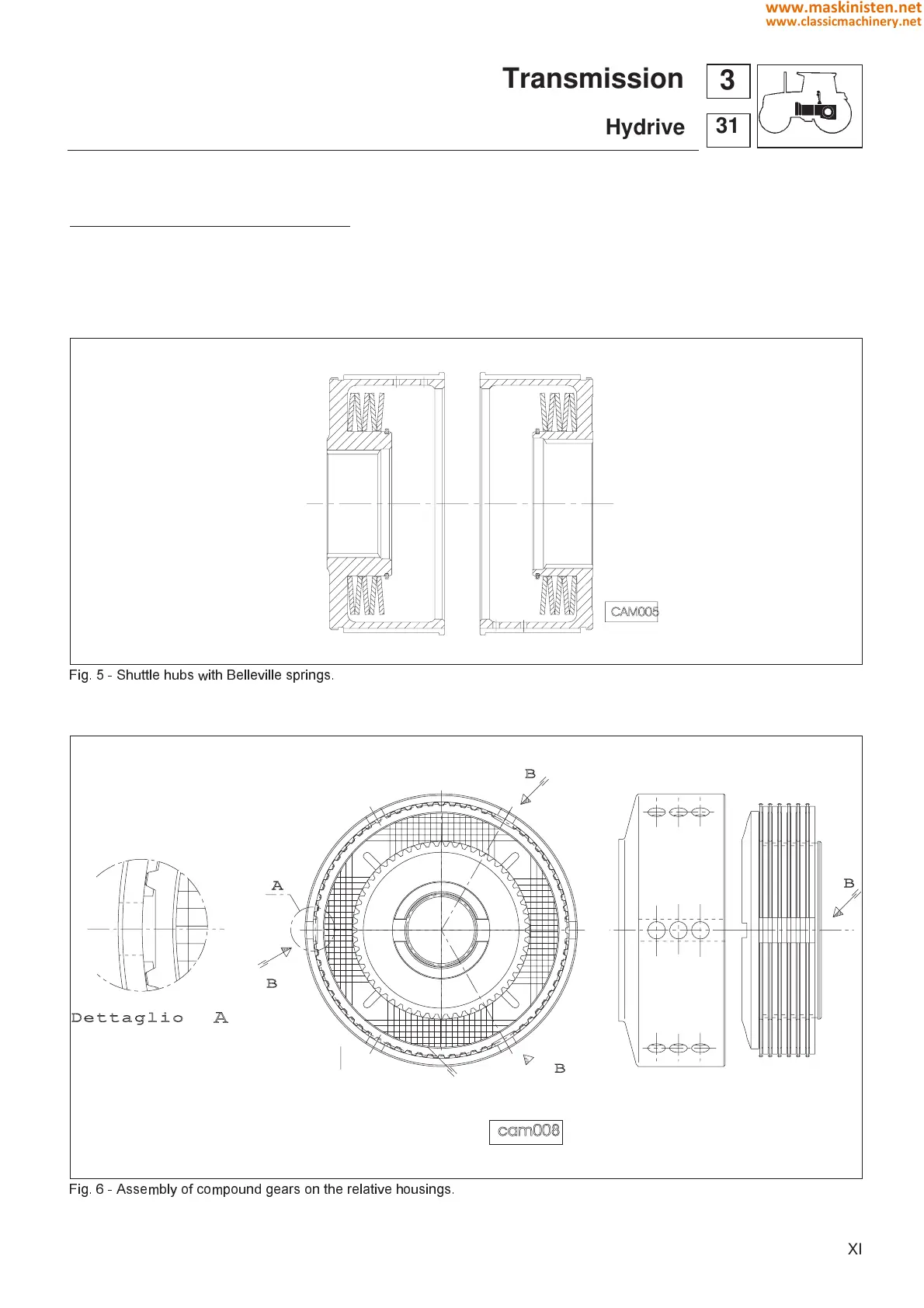

Fig. 5 - Shuttle hubs with Belleville springs.
Fig. 6 - Assembly of compound gears on the relative housings.
XI
31
3
Transmission
Hydrive
