SAME SILVER 80 - Page 469

END PLAY 0.05 - 0.15 mm

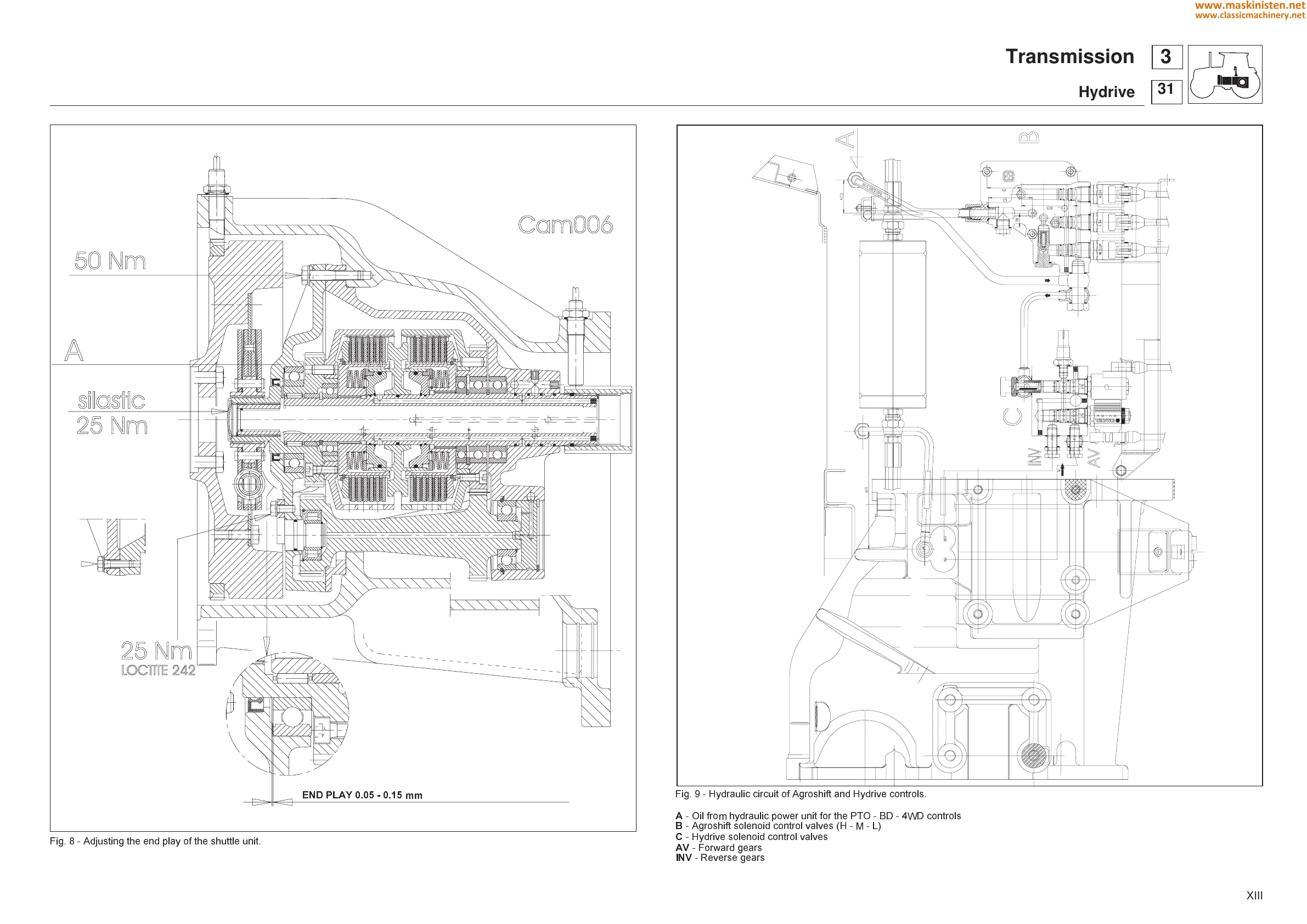

Fig. 8 - Adjusting the end play of the shuttle unit.
Fig. 9 - Hydraulic circuit of Agroshift and Hydrive controls.
A - Oil from hydraulic power unit for the PTO - BD - 4WD controls
B - Agroshift solenoid control valves (H-M-L)
C - Hydrive solenoid control valves
AV - Forward gears
INV - Reverse gears
