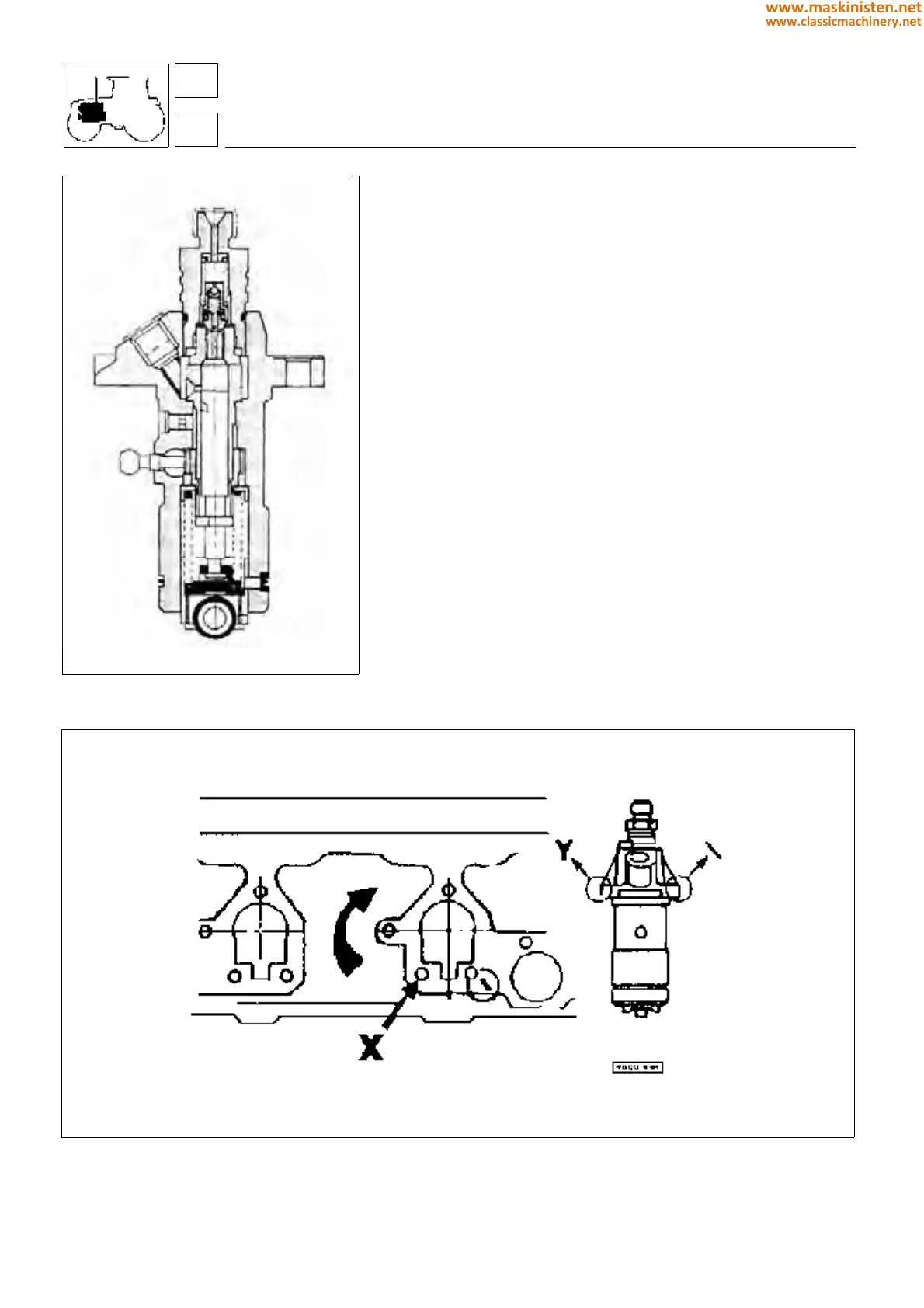

Fig. 16 - Section view of injection pump
2.4619.050.0
NB: The timing procedure for injection pumps with p/n 2.4619.050
(fig 16) is the same as given already for pumps with p/n
2.4619.050.0/20, whereas the pumps are positioned internally of
the block as follows:
Fit the pump control rod into the block and position the pumps,
aligning the notches on the block with those of the single pumps
(see fig 17).
Check that the rod slides freely; then fit the actuator and the cap
to the rear (flywheel) end.
Fig. 17 - References stamped on pump 2.4619.050.0 and block for pump shimming and positioning .
X = Shim pack to reline the bearing face of the pump on the engine block
Y = Value of the shim pack stamped on the pump
\ = Notch for the positioning of the pump on the engine block
engine
fuel system
16
1
80
