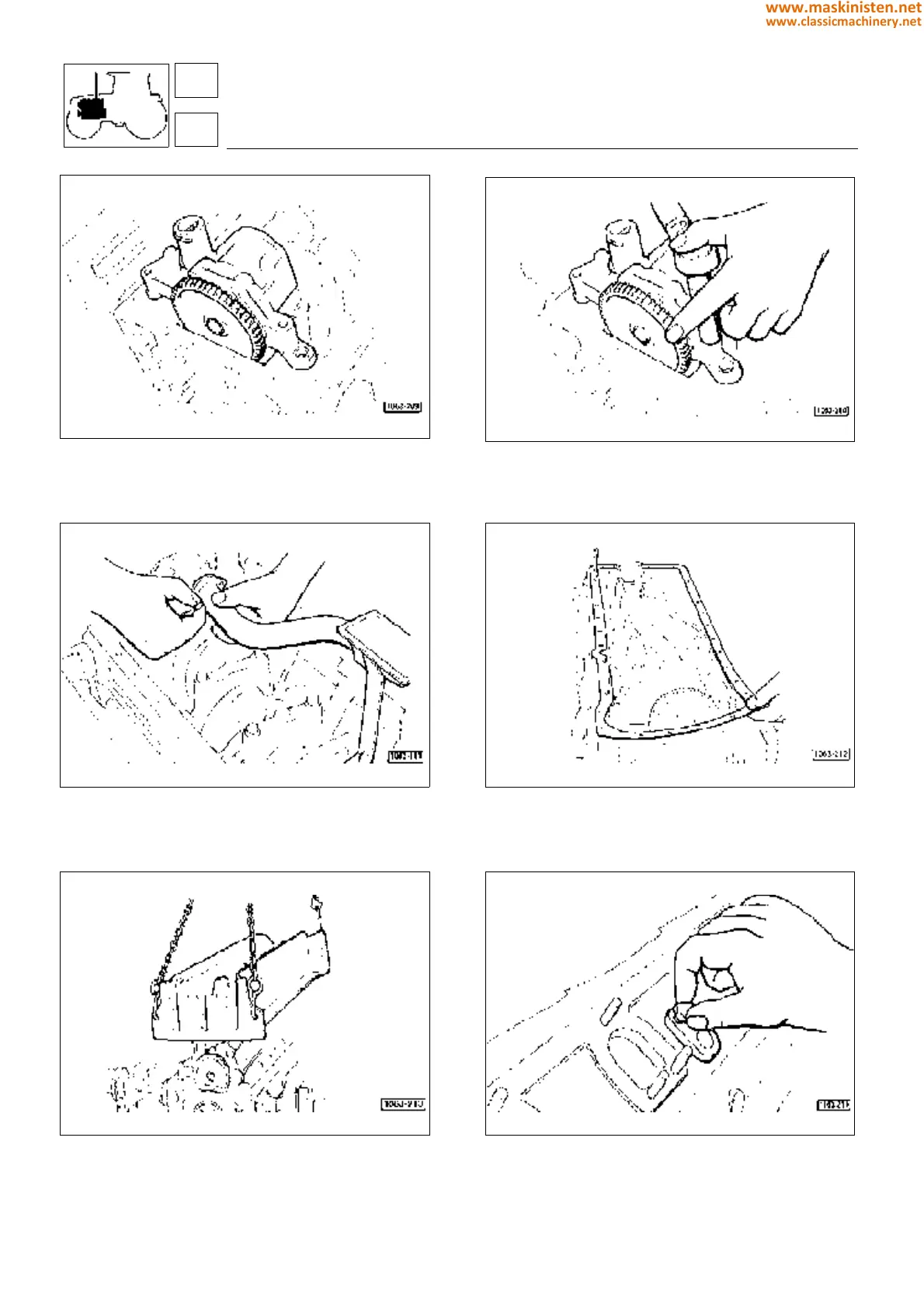

Fig. 35 -
SILVER 100.6
ONLY - Engine block mounted oil
pump;
Fig. 37 -
SILVER 100.6
ONLY - Install the oil pipe rose;
Fig. 39 - Install the engine oil pan;
Fig. 36 -
SILVER 100.6
ONLY - Tighten the engine oil pump
securing screws to the specified torque;
Fig. 38 - Place the engine oil pan gaskets;
Fig. 40 - Place the injection pump control rod guide supports
in the block and lock with the related securing screws;
engine
assembly
1
98
