Samsung DCS-816 - 4 TRK CARD (Figure 3-3); 8 TRK CARD (Figure 3-4)

SAMSUNG Installation
DCS-816 February, 1999
3-3
3.3 4TRK Card (Figure 3-3)
Four (4) analogue trunk interfaces with MPD or PRS option
The card has four (4) interfaces for MPD or PRS optional chips. Install any MPD or PRS chip
before installing the card. Concerning PRS and 50Hz MPD facilities, the capacitors marked on
Figure 3-3 should be replaced with wire jumpers. Only one card can be installed in the expansion
slot. Ensure that it is fully inserted into the slot.
3.4 8TRK Card (Figure 3-4)
Eight (8) analogue trunk interfaces with MPD or PRS option
The card has eight (8) interfaces for MPD or PRS optional chips. Install any MPD or PRS chip
before installing the card. Concerning PRS and 50Hz MPD facilities, the capacitors marked on
Figure 3-4 should be replaced with wire jumpers. Only one card can be installed in the expansion
slot. Ensure that it is fully inserted into the slot.

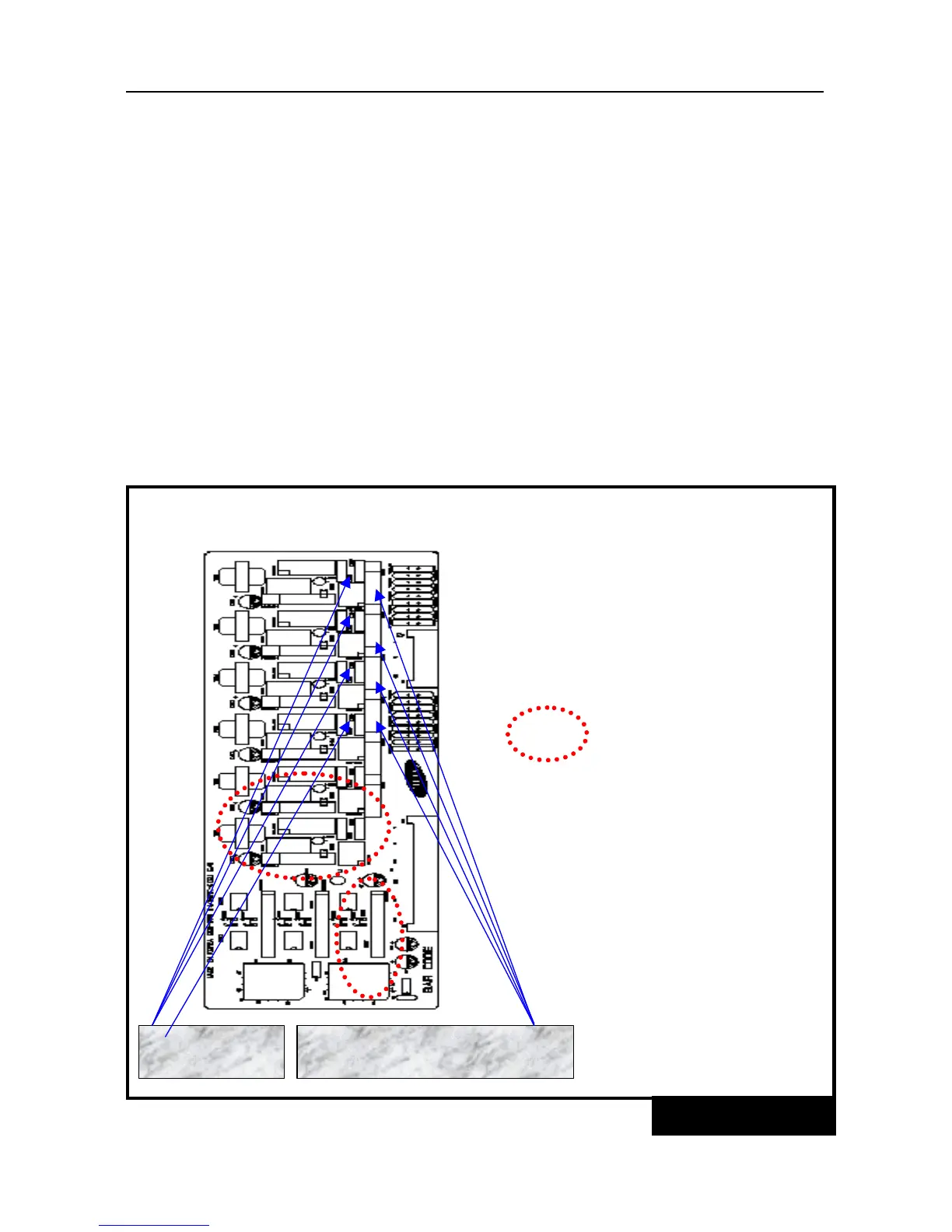

FIGURE 3-3
2 CAPACITORS
PER LINE
MPD/PRS SOCKETS FOR
TRK1 TO TRK4 FROM THE TOP
4TRK CARD
Parts
Not Assembled
