Samsung DCS-816 - 2 BRI CARD (Figure 3-4)

SAMSUNG Installation
DCS-816 February, 1999
3-4
3.5 2BRI Card (Figure 3-4)
Two (2) ISDN BRI ports
There are no hardware options to select on this card. This card supports both S and T reference
points defined by ITU-T. You can select the S/T mode of each port respectively by programming
(MMC). Note that the card does not provide power to ISDN terminal equipment even though you
select So mode.
Insert the card and ensure that it is pushed firmly into the slot.
3.6 4BRI Card (Figure 3-4)
Four (4) ISDN BRI ports
There are no hardware options to select on this card. This card supports both S and T reference
points defined by ITU-T. You can select the S/T mode of each port respectively by programming
(MMC). Note that the card does not provide power to ISDN terminal equipment even though you
select So mode.
Insert the card and ensure that it is pushed firmly into the slot.

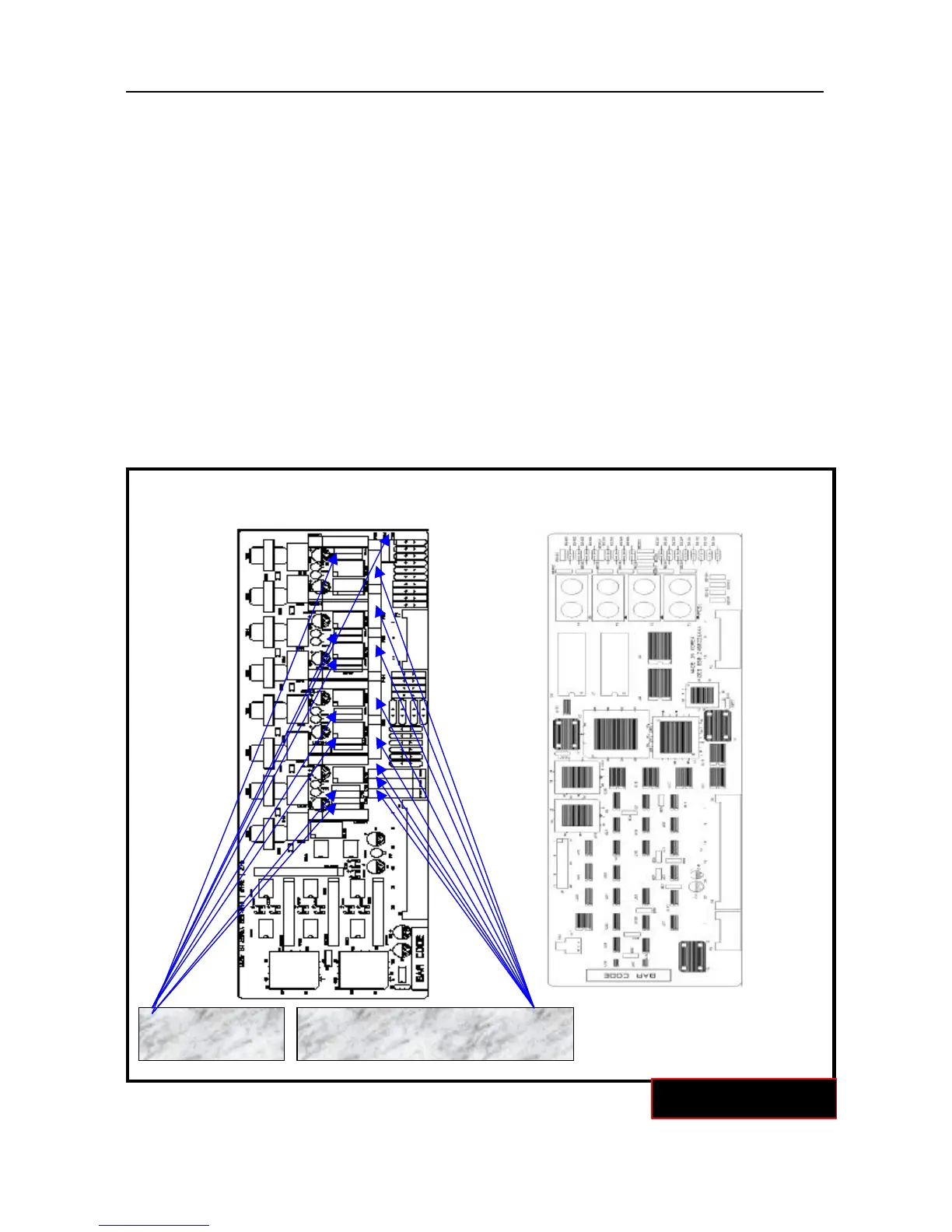

FIGURE 3-4
2 CAPACITORS
PER LINE
MPD/PRS SOCKETS FOR
TRK1 TO TRK8 FROM THE TOP
8TRK CARD AND 2 / 4BRI CARD
