SAMSUNG Installation
DCS-816 February, 1999
5-3
5.2.2 Loop-start Lines for 216 Base KSU (Figure 5-2)
The DCS-816 system requires MDF connection for analogue trunk (loop-start) lines. Ten (10)
analogue trunk lines can be connected to the system if an 8TRK card is installed in the expansion
slot. All connections for loop-start lines can be done through the champ connector on the base
board. See Figure 2-3 and refer to section 2.5 (MDF Cabling).
Use one pair twisted wires and connect each loop-start C.O. line to the trunk port you choose via
the champ connector on the base board.

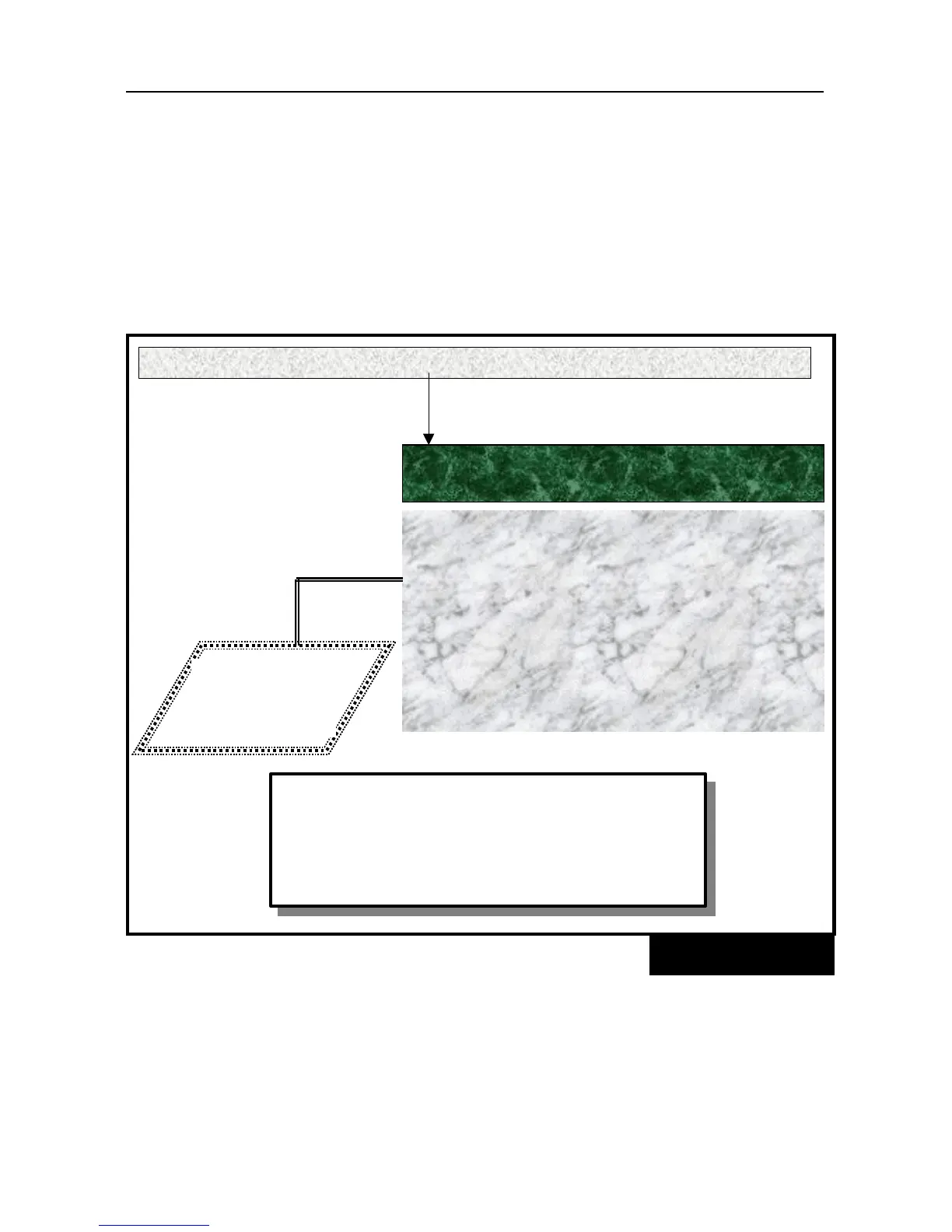

CONNECTING LOOP-START LINES FOR 216 BASE
KSU
FIGURE 5-2
CHAMP CONNECTION
PIN COLOUR CIRCUITS/ FUNCTIONS
26/ 1 W-BL/ BL-W T/R, 1
st
Trunk on Base Board
27/ 2 W-O/ O-W T/R, 2
nd
Trunk on Base Board
28/ 3 W-GR/ GR-W T/R, 1
st
Trunk on 8TRK card
29/ 4 W-BR/ BR-W T/R, 2
nd
Trunk on 8TRK card
30/ 5 W-S/ S-W T/R, 3
rd
Trunk on 8TRK card
31/ 6 R-BL/ BL-R T/R, 4
th
Trunk on 8TRK card
32/ 7 R-O/ O-R T/R, 5
th
Trunk on 8TRK card
33/ 8 R-GR/ GR-R T/R, 6
th
Trunk on 8TRK card
34/ 9 R-BR/ BR-R T/R, 7
th
Trunk on 8TRK card
35/10R-S/ S-R T/R, 8
th
Trunk on 8TRK card
25 PAIR CABLE WITH FEMALE CONNECTOR TO THE BASE CHAMP CONNECTOR
PSTN (C.O.)
LOOP-
START
² NO POLARITY
² 10 LOOP-START LINES
IF A 8TRK CARD IS INSTALLED.
² 2 TRK PORTS ON BASE BOARD WILL BE
TRANSFERRED TO STN 15 AND STN 16 IN CASE
OF POWER FAILURE. REFER TO SECTION 7.8
