Tunable Semiconductor Laser TSL-710
10-1
10
This product uses a semiconductor laser. Laser beam may cause visual
injury if it gets in eye. Before cleaning of the optical connector, be sure to
turn the power off (Refer to 5-7), and make sure there is no optical output
power.
DANGER!!
10 -1 Daily Maintenance
Turn off the power and pull out the power cord before cleaning, and use a soft dry
cloth to gently dust the instrument. Do not use chemicals (acetone, alcohol, cleaning
fluid, etc), as they may cause damage to the coating. Do not vigorously rub the
display, as damage may result.
Connection of the optical ber with dust and dirt on the end of the optical connector
of TSL-710 cause loss of optical output, therefore, clean the connector periodically.
The optical adapter arranged at the optical connector may be pulled out by removing
xation screws, therefore, remove it and clean the end of the optical connector.

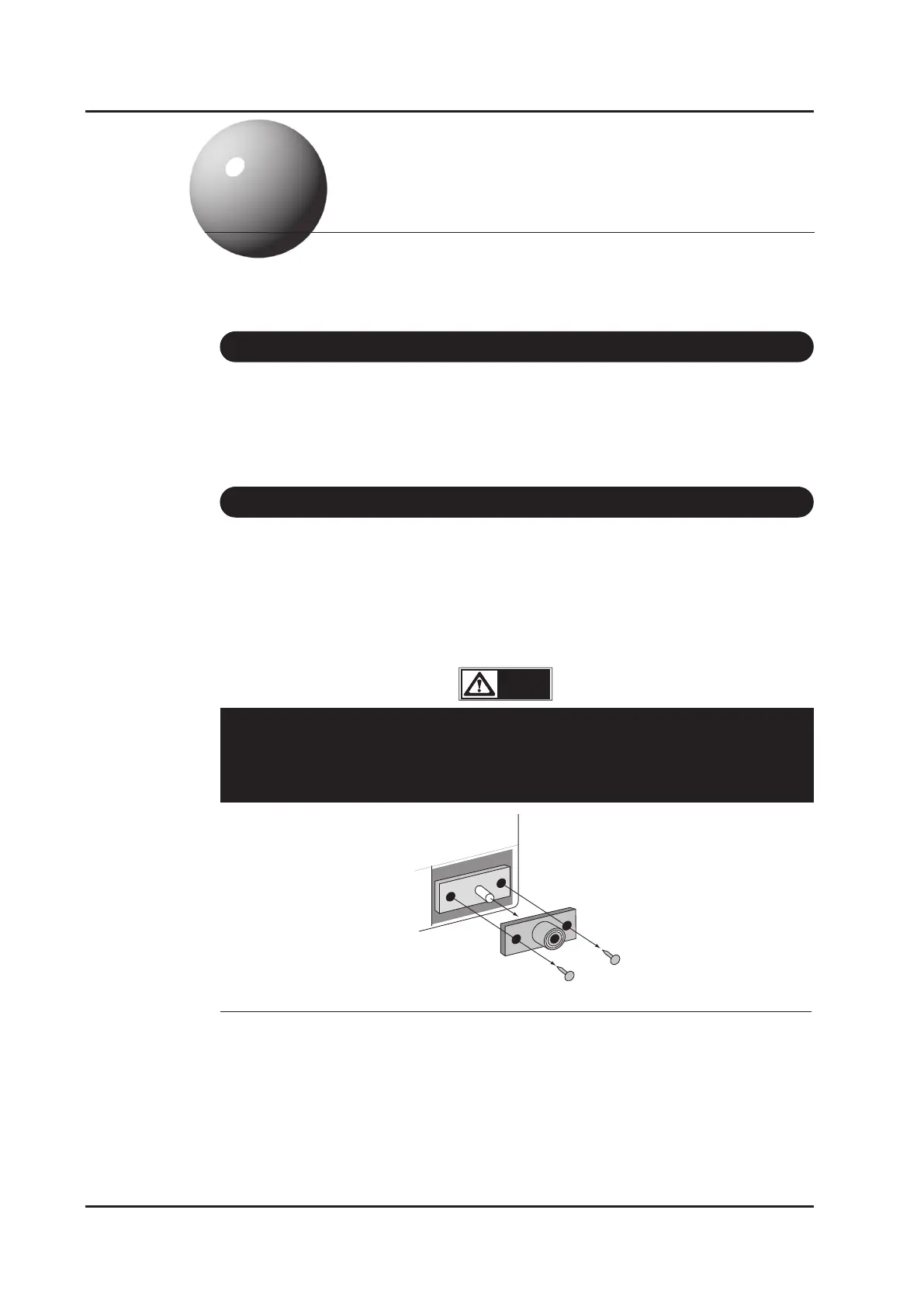

10 -2 Cleaning the Optical Connector
■
Procedures
1) Remove the 2 screws that x the optical adapter with a philips screwdriver.
2) Pull out the optical adapter. To facilitate removal, attach a connector cap to the
optical adapter, and pinch and pull out the connector cap.
3) Clean the end of the optical connector with alcohol.
4) After cleaning, insert the optical adapter into the optical connector and x it with
2 screws.
Maintenance
