7-4
TSL-710 Operation Manual
Refer to “7-4-1. Command set 1”.
3. Go back with the Back or Home key after setting.
■

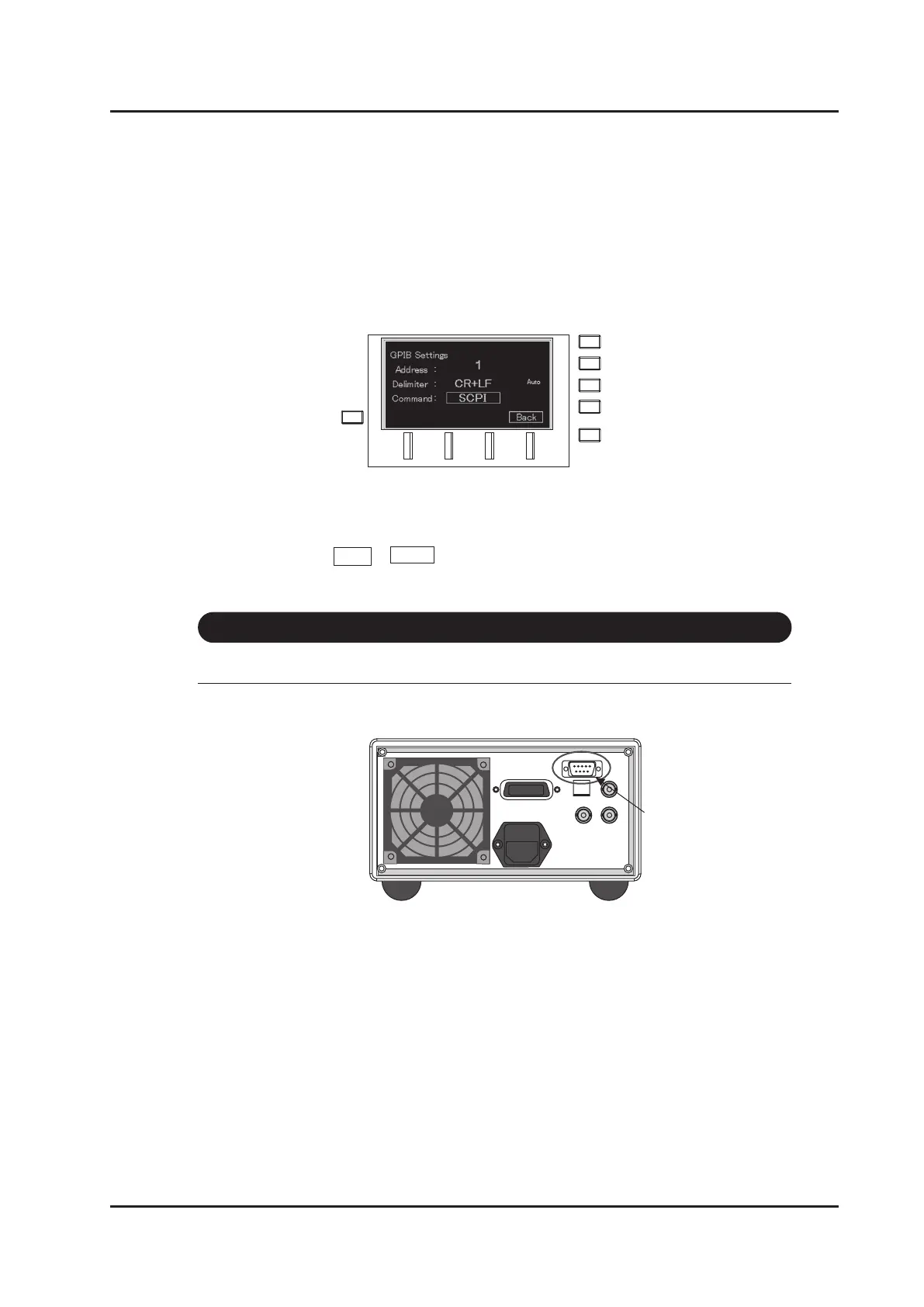

7-2-1. Connection
Connect the cable with D-sub 9 pins to the RS-232C connector on the real panel.
Communication conditions are as follows.
Communication conditions
Asynchronous, full duplex
Transmission speed (Baud rate): Select from 2400 bps to 19.2
kbps
Data length: 8 bits
Stop bit: 1 bit
Parity: None
X control: None
RS-232C
Power Monitor
USB
Trigger
Output
Trigger
Input
GPIB
~LINE
7- 2 RS-232C
RS-232C connector
