1 – fully armed and, additionally, the zones for which the BYPASSED IF NO EXIT option is
enabled, will be bypassed,
2 - 3. INTERIOR DELAYED type zones will not be armed, 8. EXTERIOR will trigger silent alarm,
and the other ones – audible alarm,
3 – same as 2, but the delayed zones type will act as instant ones.

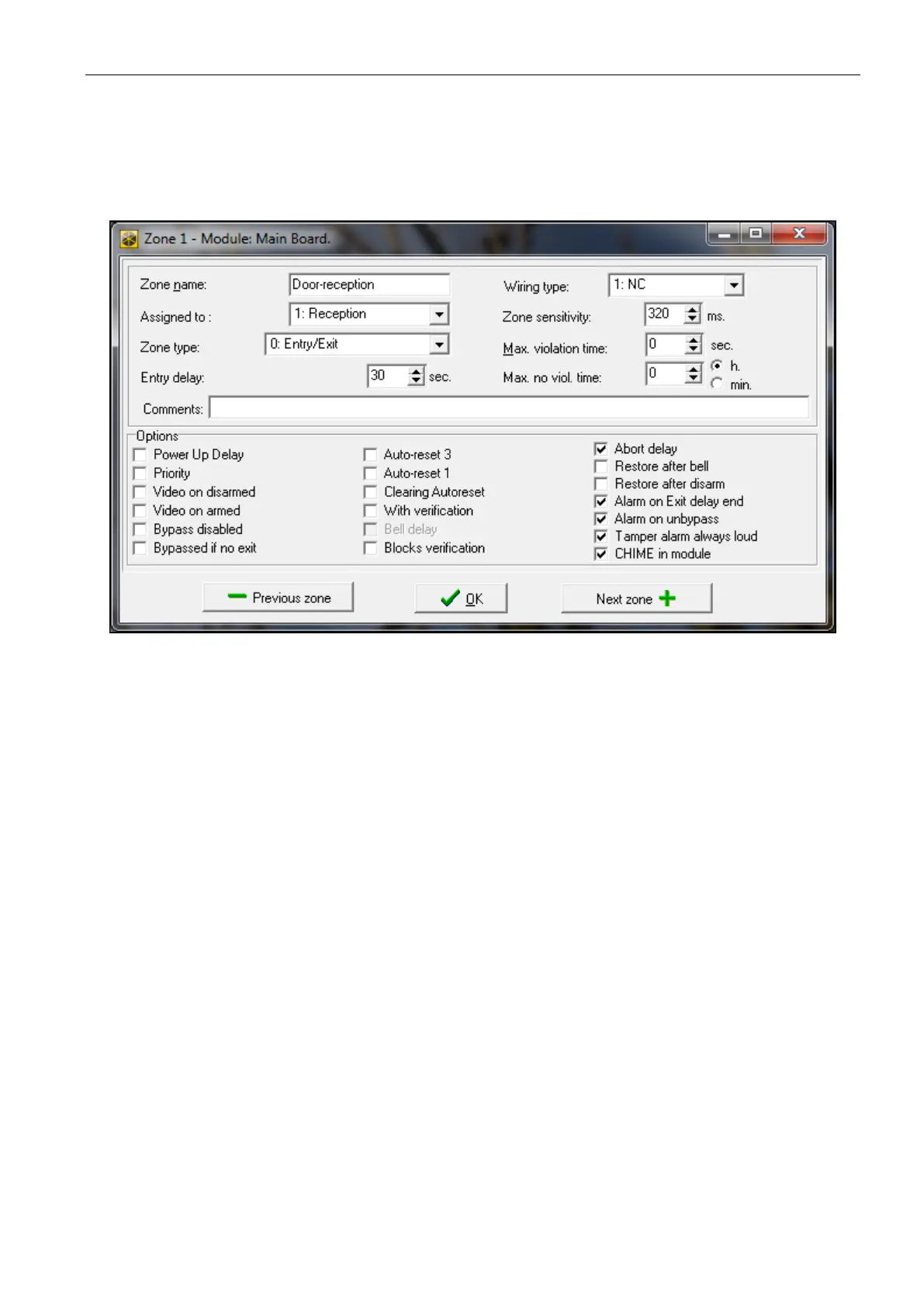

Fig. 5. Example of zone settings in the DLOADX program.
Group – refers to the 80. ARMING, 81. DISARMING, 82. ARM/DISARM and 83. CLEARING ALARM
type zones. It defines which group of partitions will be controlled by the zone (the zone
always controls the partition it belongs to). If value 0 is programmed, the zone will only
control the partition to which it belongs.
Exit delay – refers to the 89. FINISHING EXIT DELAY type zones.
Outputs group – refers to the 92. OUTPUTS GROUP OFF type zones.
Wiring type – must be selected to match the detector type and how it is connected to the
zone:
0. no detector – no detector is connected to the zone,
1. NC – the zone supports a detector of NC (normally closed) type,
2. NO – the zone supports a detector of NO (normally open) type,
3. EOL – the zone supports a detector of NO or NC type with EOL resistor in the circuit,
4. 2EOL/NC – the zone supports a detector of NC type with two EOL resistors in the
circuit,
5. 2EOL/NO – the zone supports a detector of NO type with two EOL resistors in the
circuit,
6. Roller – the zone supports a roller shutter detector,
7. Vibration – the zone supports a shock detector (also NC type detector),
8. Follow output – the zone does not support any detectors – its status depends solely on
the status of selected output (physical violations and tampers of the zone are ignored).
