52 Programming SATEL

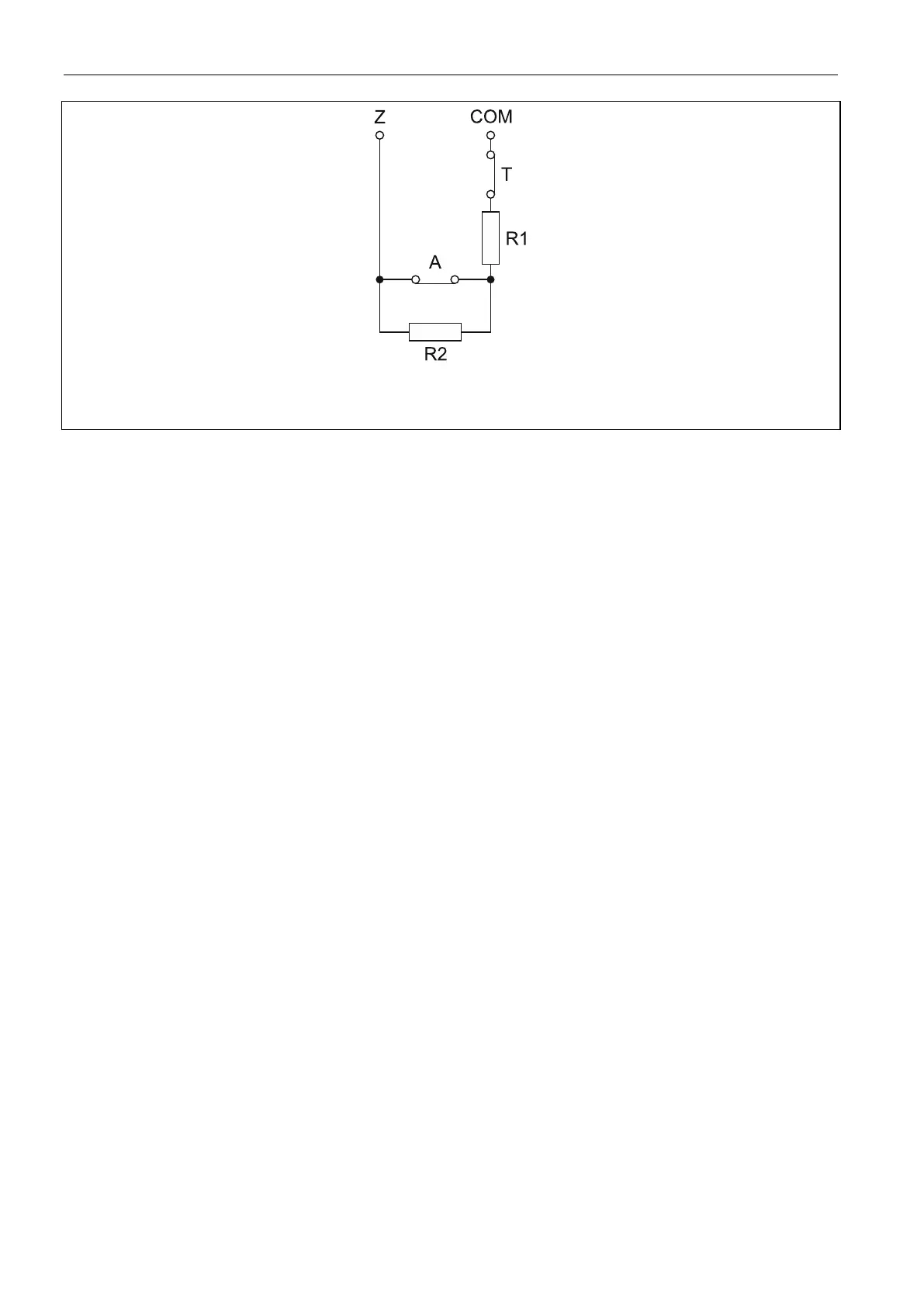

Fig. 4. Numeration of EOL resistors. T – tamper. A – alarm. In case of the EOL configuration,
the resistor value is a sum of the values programmed for the R1 and R2 resistors.
4.3.3 Programming the zones
The zones can be programmed :
• using the keypad, in the service mode, by means of the functions available in the ZONES
submenu.
• using the DLOADX program:
1. in the “Structure” window, “System” tab, after clicking on the selected zone,
2. in the “Zones” window.
4.3.4 Zone parameters
Zone name – individual name of the zone (up to 16 characters).
Assigned to – partition to which the zone belongs.
Zone type (see: “Zone types” p. 54).
Entry delay – refers to the delayed zones (including the zone types: 0. ENTRY/EXIT,
1. ENTRY, 2. DELAYED, 3. INTERIOR DELAYED, 85. ENTRY/EXIT – CONDITIONAL, 86. ENTRY/EXIT
– FINAL, 94. ENTRY/EXIT INTERIOR and 95. ENTRY INTERIOR). The alarm from the zone will be
delayed by a preset time. This makes it possible to disarm the partition before the alarm is
triggered.
Signaling delay – refers to the 4. PERIMETER, 5. INSTANT and 6. EXIT type zones. Loud alarm
signaling can be delayed by a programmed time period.
Alarm delay – refers to the 5. INSTANT and 6. EXIT type zones. The alarm from zone may be
delayed by a programmed time period.
Surveillance time – refers to the 8. EXTERIOR type zones.
Bypass time – refers to the bypassing zones (zone types 64-79). It indicates for how long
the zones will be bypassed. If value 0 is programmed, the zones will remain bypassed until
disarming the partitions to which they belong, or until they are unbypassed by the user.
Module number (lock/keypad) – refers to the 58. TECHNICAL – DOOR BUTTON type zones. It
defines which door will be unlocked after zone violation (you can indicate a door controlled
by partition keypad, code lock, proximity card reader expander or DALLAS chip reader
expander).
Arming mode – refers to the 80. ARMING and 82. ARM/DISARM type zones. It defines which
type of armed mode will be activated by the zone:
0 – full armed mode,
