14
North Up Trail Up (Center)
Trail Up (Center) is currently on the screen.
Trail Up (Low) can be selected by pressing
the Trail Up icon (front left button).
The blue location icon is shown in the center
of the screen. The map orientates to match
the direction of travel (similar to turning a
paper map to nd your bearings).
If you switch to PLANNING mode, the map
will stay in Trail Up mode.
Note: Trail Up is not available in advanced
power saving mode. (The screen refreshes
more frequently in Trail Up, drawing more
power).
North Up is currently on the screen. Trail Up
can be selected by pressing the Trail Up icon
(front left button).
The blue location icon is shown in the center
of the screen with North facing up on the map.
Use this mode to conserve battery power.
From the PLANNING screen if you wish to
switch the map to North Up, return to the GPS
Map screen and press the North Up/Trail Up
button.
Trail Up (Low) is currently on the screen.
North Up can be selected by pressing the
North Up icon (front left button).
The map orientates to match the direction
of travel. However the blue location icon is
positioned low on the screen so you can see
more mapping ahead of you. Useful for when
you are traveling at higher speeds, such as
on a bike.
Note: The 4 data box option is not available in
the Trail Up (Low) mode as it would obscure
the locator circle.
Trail Up (Low)

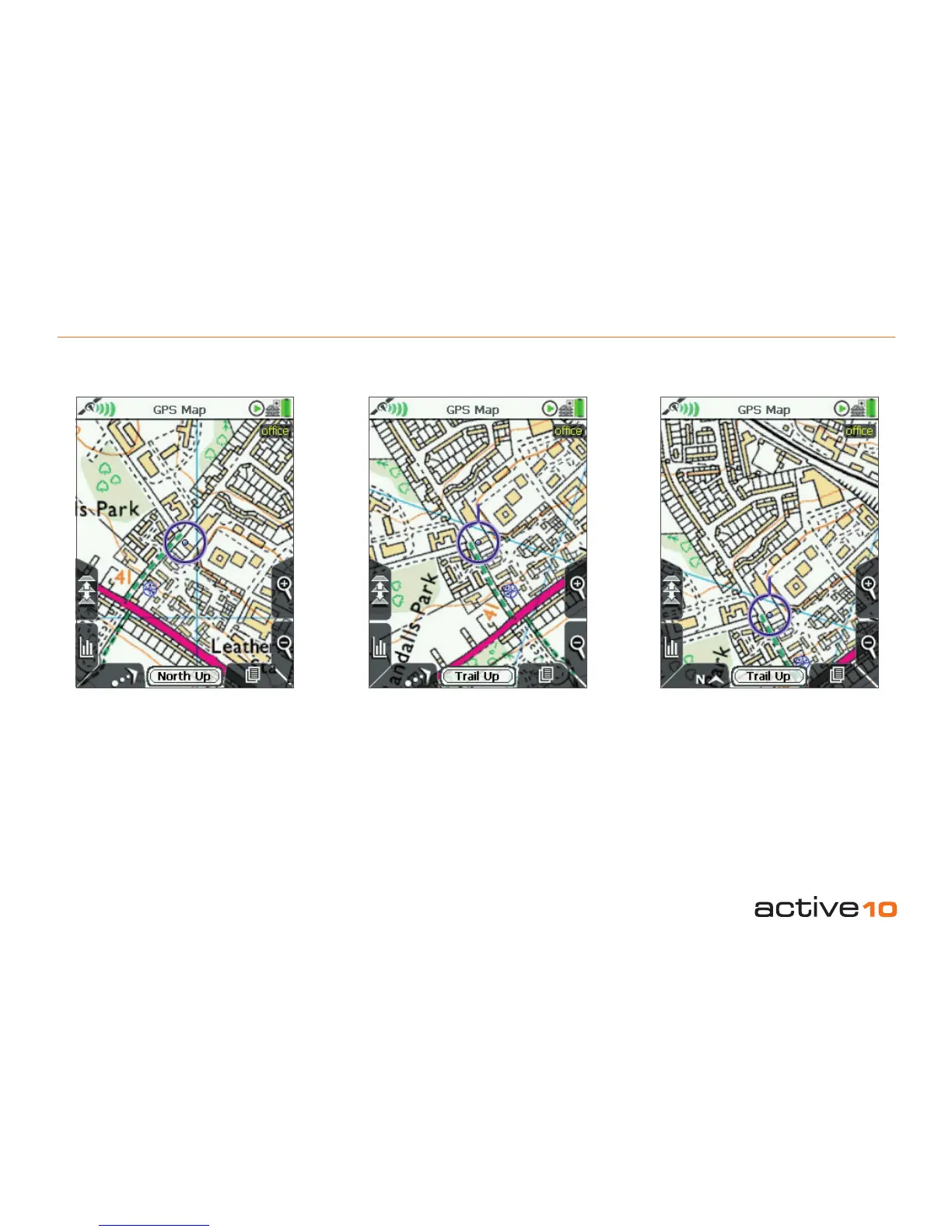

5.02 Map orientation There are 3 map orientation options for enhanced visibility: North Up / Trail Up (Center) / Trail Up (Low)
5.02 GPS Map Screen: Map Orientation
