6.00 Primary Screens: PLANNING Screen
6.00 PLANNING Screen
(GPS MAP → PLANNING)
The PLANNING screen is accessed from
the GPS MAP screen by moving the joystick
away from your current location (blue location
icon).
The PLANNING screen displays a planning
icon (orange circle with a small black cross)
as soon as you move the joystick away from
your current location. Instead of a blue dot,
a small black cross is shown in the center.
From the edges of the orange planning icon
radiate crosshairs as an additional visual cue
that you are in PLANNING mode rather than
GPS MAP mode. The orange planning icon
stays in place as you use the joystick to move
the map.
The POSITION INFO screen (section 10.00)
may be accessed from the PLANNING
screen by center pressing the joystick.
When a map is loaded, the PLANNING
screen shows a central default location for
that particular map.
There is a data box overlay which shows;
• Grid reference – format options are given
in GPS Settings (section 7.09 Position
Display Format option).
• Altitude for this location – elevation above
sea level, obtained from base maps (UK) or
from map cards (non-UK).
• Distance from your last known location, i.e.
where you last acquired a GPS lock. This is
useful as a ‘rangender’.
• Bearing from your last known location –
format options given in Compass Settings,
(section 7.12 Compass Display).
Note: This data overlay is not congurable by
the user, unlike the 2-Data Box and 4-Data
Box layouts available on the GPS MAP
screen (section 5.00).
When the crosshairs are moved over an OOI
or a route, an OOI/route indicator icon
appears at the bottom of the screen. Center
pressing the joystick brings up further
information via the 'Choose Information
Type' window (section 11.00).
Buttons:
Toggle Maps
Toggle between maps at the same zoom level
(section 5.01)
ROUTES MENU
Go to ROUTES MENU (section 8.00)
GPS Map
Go to GPS MAP (section 5.00)
Zoom
Zoom in/out
Primary Screens
Go to MAIN MENU (section 6.01) and scroll
through primary screens (section 4.00)

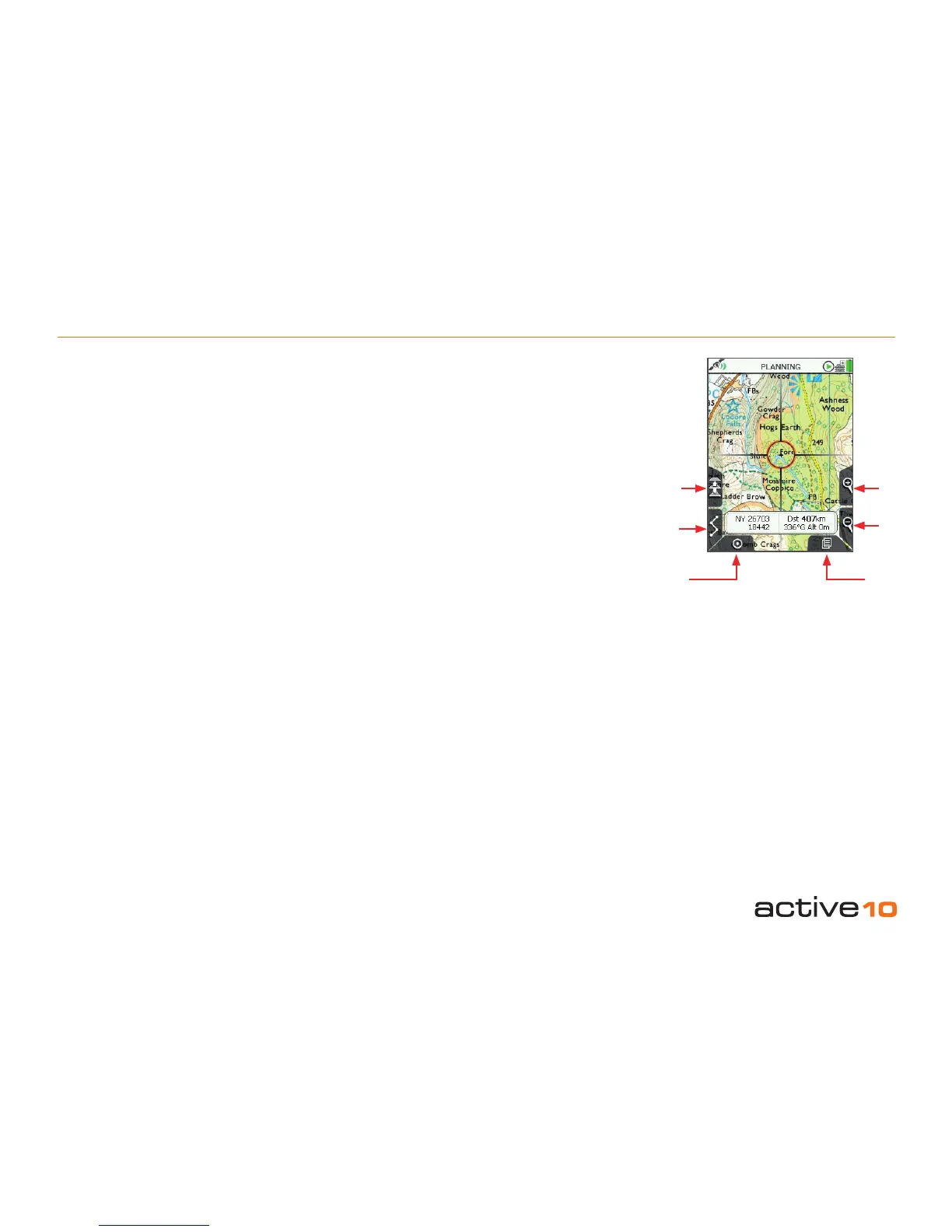

Figure 6.00
Toggle
maps
ROUTES
MENU
GPS Map
Zoom
In
Zoom
Out
Primary
Screens
