8.03a ROUTES MENU: ROUTE PLAN
8.03a ROUTE PLAN Screen
(GPS MAP → MAIN MENU → ROUTES
MENU → (folder/route) → View → Prole)
This screen shows an elevation prole of the
route, together with six data elds:
• Distance
• Total Ascents
• Total Descents
• Maximum Altitude
• Minimum Altitude
• Approximate Time
The ROUTE PLAN screen is accessed from
the ROUTE MAP screen by pressing the
Prole button.
The vertical line can be used to access
information about each waypoint by moving
the joystick left/right. Pressing the joystick
once left/right, moves the vertical line along
each individual waypoint. Pushing and holding
the joystick left/right moves the vertical line
across numerous waypoints, giving you
accelerated scrolling.
Accelerated scrolling: This is useful if you
have a route with many waypoints and want
to access information about a particular
waypoint. Press and hold the joystick left/right
until you reach the specic waypoint.
If you have more than 50 waypoints, then
you will only be able to see the start and end
points, but you will still be able to access
details of each point using the vertical line.
The waypoint label on the map, its
coordinates and comments appear under
the elevation prole. Below a total of fty
waypoints, individual waypoints are shown
along the prole as green dots. If a route is a
‘track’, i.e. a converted trail, the comment eld
contains date, time, speed etc. as recorded by
the Active 10.
Buttons:
Card
Go to ROUTE CARD screen (section 8.03b)
Go To
Go to PLANNING screen (section 6.00),
centered on the indicated waypoint
Reverse
Press to reverse the route
Back
Go to previous screen

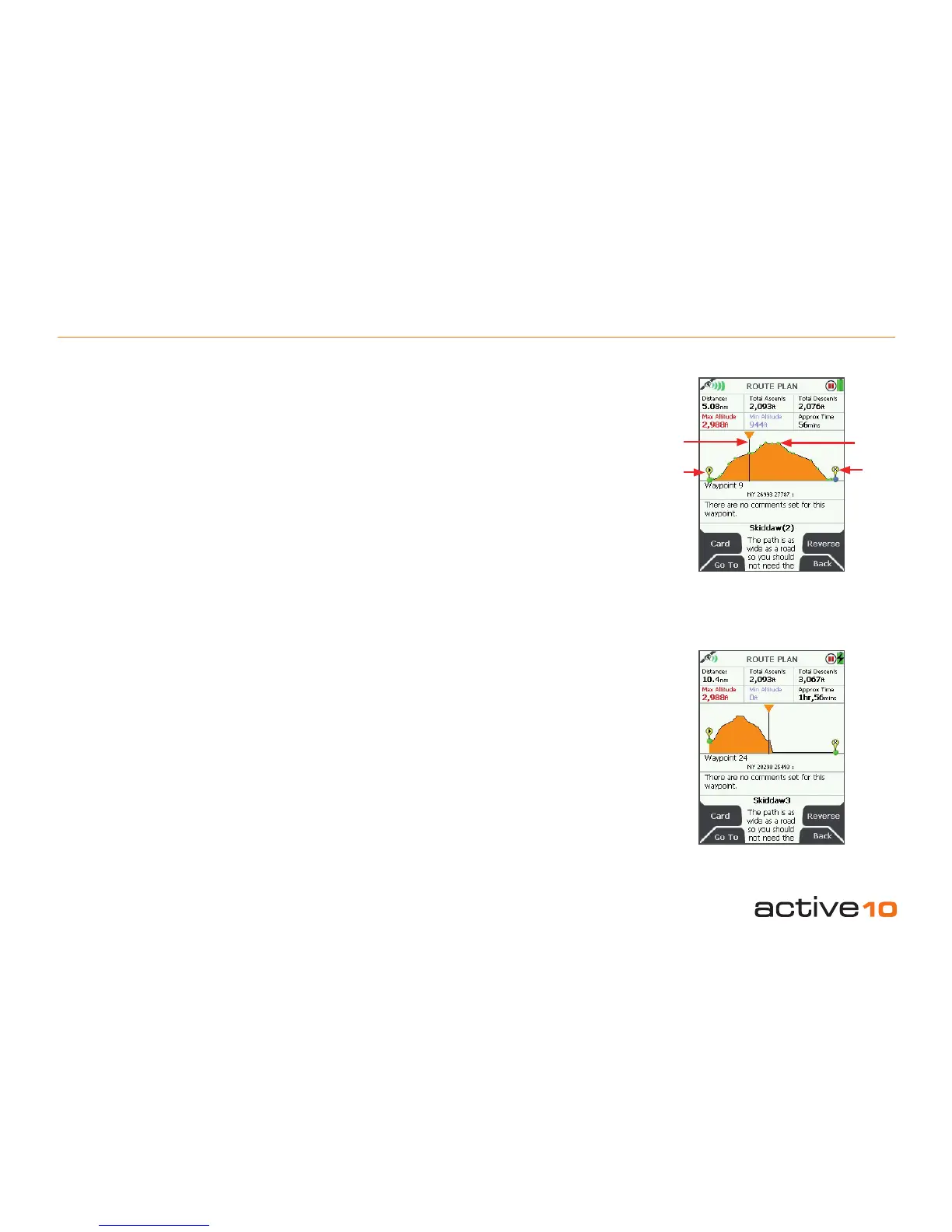

Figure 8.03a
Waypoint
End point
Vertical
line
Start point
More than 50 waypoints
Less than 50 waypoints
