satmap Active 10 - ii. Basic Layout; Device Components Overview

© Satmap Systems Ltd
© Satmap Systems Ltd
4

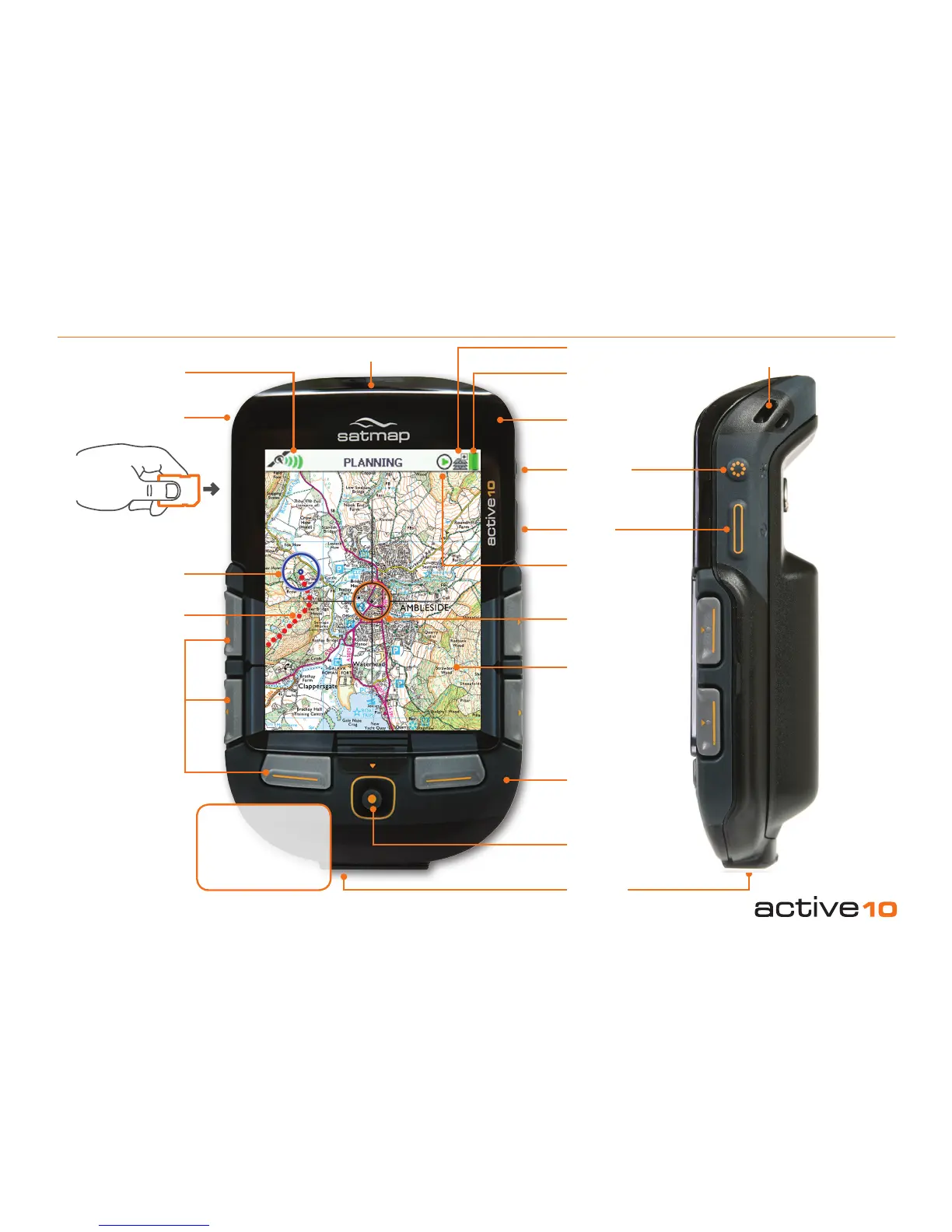

ii. Basic Layout
Insert SD Card
Lanyard Point
Lanyard Point
SiRF III GPS
GPS Lock
Trail Taken
Location Icon
Mini USB
9 Function
Joystick
Large Side/Front
Multifunction Keys
Side/front press
keys enable one-
handed operation.
Buttons are variable
(depending on the
screen shown)
and can be set to
activate with 1-click
or 2-click operation
(section 7.16).
Backlight
Boost
Stop/
Record Icon
Toggle Icon
Battery
Indicator
On/Off
Planning Icon
Replaceable
Screen Cover
3.5 in / 8.7cm
Sunlight
Readable
Transective
Screen
Weatherproof,
Toughened
Impact Casing
Lock/
Unlock
Screen 3.4 in / 8.7cm
Width 3 in / 7.5cm
Height 5.1 in / 13cm
Depth 1.4 in / 3.5cm
Weight 6.2 oz / 175g
Removable
Battery Back
Can be
replaced with
a Battery Back
for mounting
on a bike or
in a car, or
with a Slimline
Battery Back
for a lighter unit
with a lower
prole.
